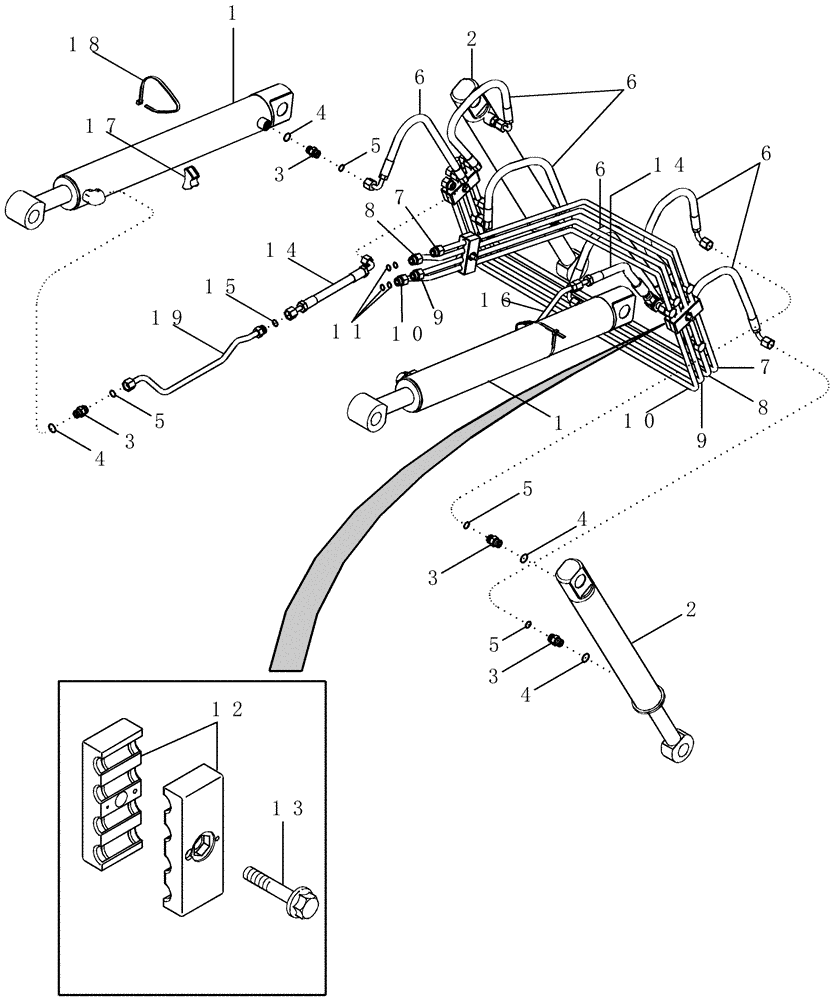

Запчасти Case IH LX252 (08-01) - HYDRAULICS - LOADER FRAME - WITHOUT MECHANICAL SELF-LEVEL (08) - HYDRAULICS

1

87448470

CYLINDER ASSY.

Lift, Serial Range: -CAE0022124

2шт.

See Figure 08-10

1шт.

1

87340183

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 618.9mm Stroke

Lift, Start Serial: CAE0022124

2шт.

See Figure 08-11

1шт.

2

87448473

CYLINDER ASSY.

Bucket, Serial Range: -CAE0022124

2шт.

See Figure 08-14

1шт.

2

87340190

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 478mm Stroke

Bucket, Start Serial: CAE0022124

2шт.

See Figure 08-15

1шт.

3

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 4, 5, Serial Range: -CAE0022124

8шт.

3

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 4, 5, Start Serial: CAE0022124

6шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

346111A1

HOSE

559 mm (22 in)

6шт.

7

87446132

HYD TUBE,0.5" OD

Bucket Cylinder, Head End, Inc. 11

1шт.

8

87446134

HYD TUBE,0.5" OD

Bucket Cylinder, Rod End, Inc. 11

1шт.

9

87446135

HYD TUBE,0.5" OD

Lift Cylinder, Rod End, Inc. 11

1шт.

10

87446136

HYD TUBE,0.5" OD

Lift Cylinder, Head End, Inc. 11

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

324067A1

BRACKET

6шт.

13

281-54932

SCREW,Hex Wshr Hd, 3/8" - 16 x 2"

3шт.

14

87444341

HOSE

Lift Cylinder, Inc. 15

2шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

87444340

TUBE,0.5" OD

Lift Cylinder

1шт.

17

D38648

BLOCK

Tube Support

2шт.

18

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

2шт.

19

87444340

TUBE,0.5" OD

Lift Cylinder

1шт.
