(09-06) - OSCILLATION STOPS - JX1U TRACTOR

Запчасти Case IH LX252 (09-06) - OSCILLATION STOPS - JX1U TRACTOR (09) - CHASSIS/ATTACHMENTS

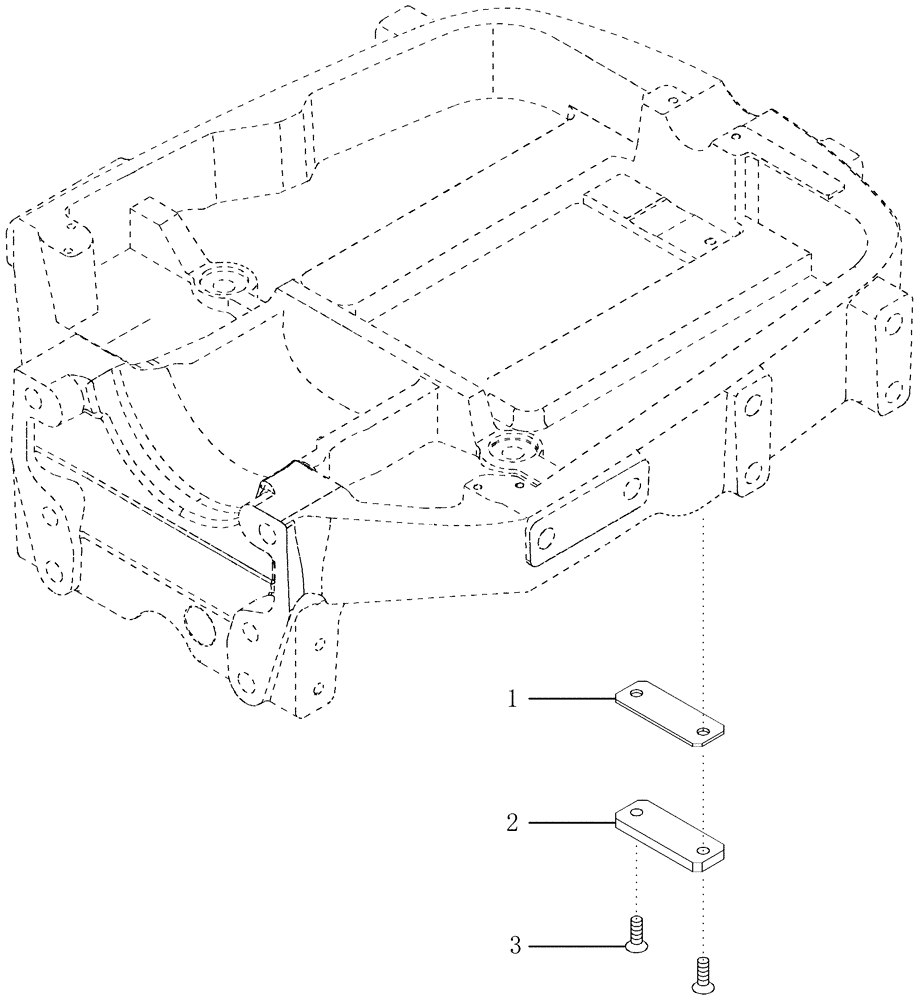

Схема запчастей Case IH LX252 - (09-06) - OSCILLATION STOPS - JX1U TRACTOR (09) - CHASSIS/ATTACHMENTS
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5167043

PLATE

Oscillation, 10 mm Thick

2шт.

2

87455439

PLATE

STOP, Oscillation, 15 mm Thick

2шт.

3

82015433

HEX SOC SCREW,FLAT, M10 x 1.5 x 25mm, Cl 10.9

M10 x 25; 10.9

4шт.
