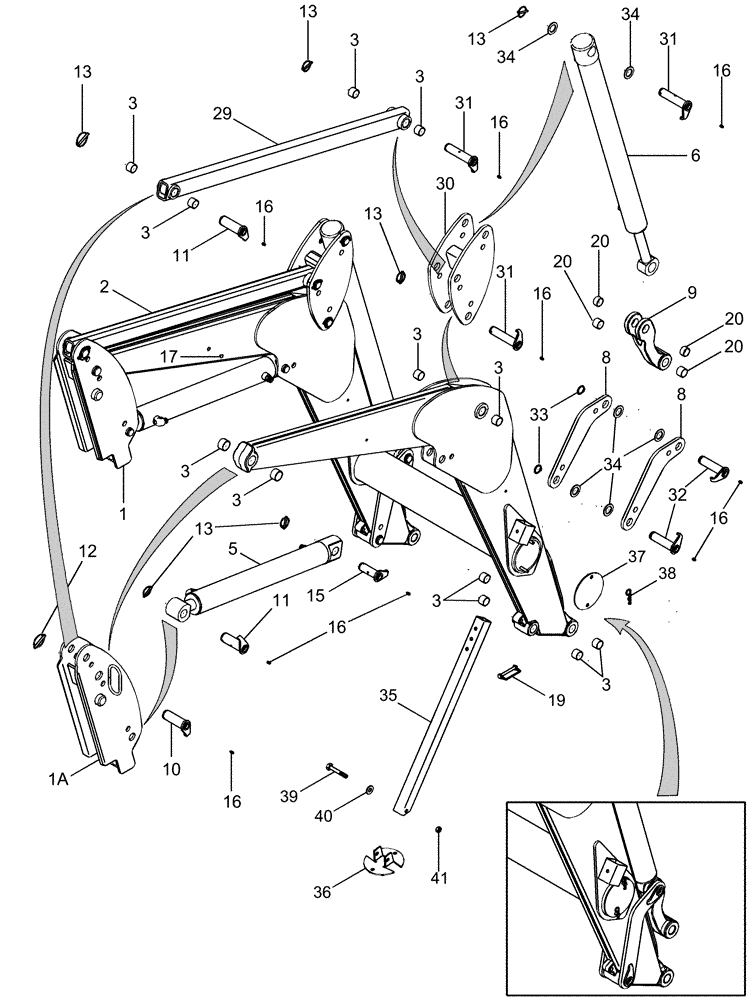

Запчасти Case IH LX252 (09-04) - FRAME - WITH MECHANICAL SELF-LEVEL - ASN CAE0022036 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
87345271
TOWER
LH, Inc. 43
1шт.
1a
87345270
TOWER
RH, Inc. 44
1шт.
2
87345311
FRAME ASSY
Loader, Inc. 3, 4 (12), 45
1шт.
3
87305978
BUSHING,31.93mm ID x 36.06mm OD x 19.3mm L
1-1/4 ID x 3/4 in
28шт.
5
87340197
CYLINDER ASSY.,Double Acting, 38.1mm Rod, 584.5mm Stroke
Lift
2шт.
See Figure 08-13
1шт.
6
87340203
CYLINDER ASSY.,Double Acting, 38.1mm Rod, 449.8mm Stroke
Bucket
2шт.
See Figure 08-17
1шт.
8
87345302
PLATE
4шт.
9
310954A1
LINK ASSY.
Inc. 20,21
2шт.
10
87454475
PIVOT PIN,38.1mm OD x 114mm L
With Flag, 38.1 x 103 mm (1-1/2 x 4)
2шт.
11
87454473
PIVOT PIN,31.75mm OD x 130mm L
With Flag, 31.75 x 103 mm (1-1/4 x 4)
4шт.
12
A61560
LOCK PIN
Klik
2шт.
13
A30338
PIN
Klik
12шт.
15
87447569
PIVOT PIN,31.75mm OD x 111mm L
With Flag, 31.75 x 84 mm (1-1/4 x 3-3/8)
2шт.
16
219-87
LUBE NIPPLE,1/4" - 28 NPTF
Grease
18шт.
17
CL5306
PLUG
5шт.
19
86591354
LOCK PIN
2шт.
20
87305980
BUSHING,38.29mm ID x 42.42mm OD x 19.3mm L
1-1/4 ID x 1 in
4шт.
29
87344837
LINK ASSY.
Inc. 3 (4)
2шт.
30
87345240
PLATE ASSY.
2шт.
31
87447571
PIVOT PIN,31.75mm OD x 136.2mm L
With Flag, 31.75 x 133 mm (1-1/4 x 5-1/4)
6шт.
32
87447575
PIVOT PIN,31.75mm OD x 138mm L
With Flag, 31.75 x 102 mm (1-1/4 x 4)
4шт.
33
103-16125
SNAP RING,#125, Ext
4шт.
34
310565A1
WASHER,32mm ID x 51mm OD x 3.5mm Thk
Plastic
28шт.
35
87340581
SUPPORT TUBE
Park Stand
2шт.
36
87454046
FOOT
Park Stand
2шт.
37
87451491
PLATE
Park Stand Storage
2шт.
38
87421748
HAIR PIN COTTER
4шт.
39
413-848
BOLT,Hex, 1/2" - 13 x 3", Gr 5
2шт.
40
495-11053
WASHER,1/2", SAE
2шт.
41
231-5348
FLANGE NUT,Flg, 1/2"-13
2шт.
42
86979960
DANGER DECAL
Safety, Not Illustrated
1шт.
See Figure 09-18
1шт.
43
86979962
WARNING DECAL
Safety, Not Illustrated
1шт.
See Figure 09-18
1шт.
44
86979961
DANGER DECAL
Safety, Not Illustrated
2шт.
See Figure 09-18
1шт.
Выбрано товаров: 38
