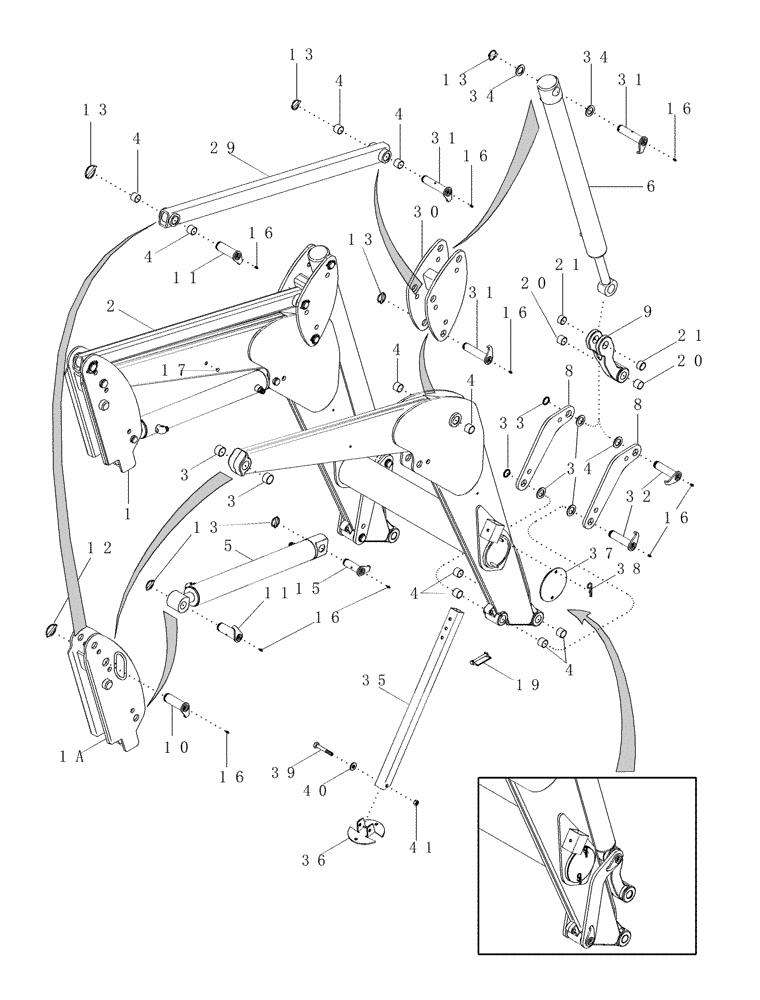

Запчасти Case IH LX252 (09-03) - FRAME - WITH MECHANICAL SELF-LEVEL - BSN CAE0022036 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
87452172
TOWER
LH, Inc. 43
1шт.
1a
87452171
TOWER
RH, Inc. 44
1шт.
2
87448618
FRAME ASSY
Loader, Inc. 3, 4 (12), 45
1шт.
3
318872A1
BUSHING
1-1/2 ID x 1 in
4шт.
4
310955A1
BUSHING
1-1/4 ID x 1 in
16шт.
5
87449054
CYLINDER ASSY.
Lift
2шт.
See Figure 08-12
1шт.
6
451464A1
CYLINDER ASSY.,Double Acting, 38.1mm Rod, 474.98mm Stroke
Bucket
2шт.
See Figure 08-20
1шт.
8
87448475
PLATE ASSY.
PLATE
4шт.
9
310954A1
LINK ASSY.
Inc. 20,21
2шт.
10
87454475
PIVOT PIN,38.1mm OD x 114mm L
With Flag, 38.1 x 103 mm (1-1/2 x 4)
2шт.
11
87454473
PIVOT PIN,31.75mm OD x 130mm L
With Flag, 31.75 x 103 mm (1-1/4 x 4)
4шт.
12
A61560
LOCK PIN
Klik
2шт.
13
A30338
PIN
Klik
12шт.
15
87447569
PIVOT PIN,31.75mm OD x 111mm L
With Flag, 31.75 x 84 mm (1-1/4 x 3-3/8)
2шт.
17
CL5306
PLUG
5шт.
19
86591354
LOCK PIN
2шт.
20
310955A1
BUSHING
1-1/4 ID x 1 in
2шт.
21
324304A1
BUSHING
1-1/4 ID x 3/4 in
2шт.
29
451429A1
LINK ASSY.
Inc. 4 (4)
2шт.
30
451443A1
PIVOT ASSY.
2шт.
31
87447577
PIVOT PIN,31.75mm OD x 160mm L
With Flag, 31.75 x 133 mm (1-1/4 x 5-1/4)
6шт.
32
87447573
PIVOT PIN,31.75mm OD x 124.5mm L
With Flag, 31.75 x 102 mm (1-1/4 x 4)
4шт.
33
103-16125
SNAP RING,#125, Ext
4шт.
34
310565A1
WASHER,32mm ID x 51mm OD x 3.5mm Thk
Plastic
12шт.
35
87454044
TUBE,1030 mm L
Park Stand
2шт.
36
87454046
FOOT
Park Stand
2шт.
37
87451491
PLATE
Park Stand Storage
2шт.
38
87421748
HAIR PIN COTTER
4шт.
39
413-848
BOLT,Hex, 1/2" - 13 x 3", Gr 5
2шт.
40
495-11053
WASHER,1/2", SAE
2шт.
41
231-5348
FLANGE NUT,Flg, 1/2"-13
2шт.
42
86979960
DANGER DECAL
Safety, Not Illustrated
1шт.
See Figure 09-18
1шт.
43
86979962
WARNING DECAL
Safety, Not Illustrated
1шт.
See Figure 09-18
1шт.
44
86979961
DANGER DECAL
Safety, Not Illustrated
2шт.
See Figure 09-18
1шт.
Выбрано товаров: 40
