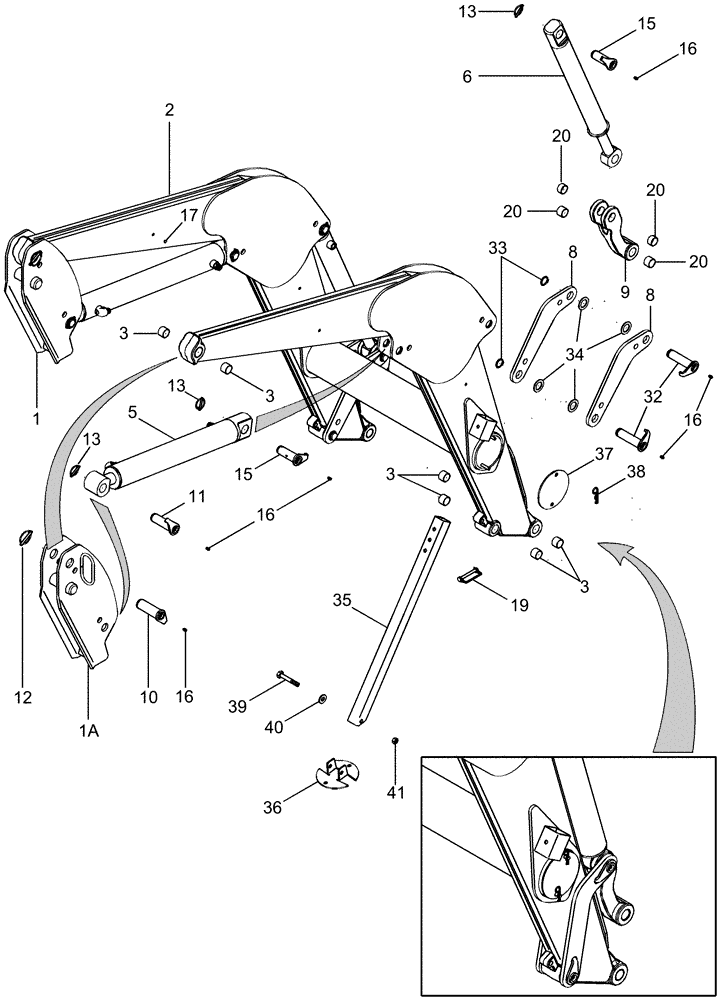

Запчасти Case IH LX252 (09-02) - FRAME - WITHOUT MECHANICAL SELF-LEVEL - ASN CAE0022124 (09) - CHASSIS/ATTACHMENTS

1

87345258

TOWER

LH, Inc. 44

1шт.

1a

87345257

TOWER

RH, Inc. 43

1шт.

2

87345245

FRAME ASSY

Loader, Inc. 3, 45

1шт.

3

87305978

BUSHING,31.93mm ID x 36.06mm OD x 19.3mm L

1-1/4 ID x 3/4 in

16шт.

5

87340183

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 618.9mm Stroke

Lift

2шт.

See Figure 08-11

1шт.

6

87340190

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 478mm Stroke

Bucket

2шт.

See Figure 08-15

1шт.

8

87345302

PLATE

4шт.

9

310954A1

LINK ASSY.

Inc. 20,21

2шт.

10

87454475

PIVOT PIN,38.1mm OD x 114mm L

With Flag, 38.1 x 103 mm (1-1/2 x 4)

2шт.

11

87454473

PIVOT PIN,31.75mm OD x 130mm L

With Flag, 31.75 x 103 mm (1-1/4 x 4)

2шт.

12

A61560

LOCK PIN

Klik

2шт.

13

A30338

PIN

Klik

6шт.

15

87447569

PIVOT PIN,31.75mm OD x 111mm L

With Flag, 31.75 x 84 mm (1-1/4 x 3-3/8)

4шт.

16

219-87

LUBE NIPPLE,1/4" - 28 NPTF

Grease

12шт.

17

CL5306

PLUG

5шт.

19

86591354

LOCK PIN

2шт.

20

87305980

BUSHING,38.29mm ID x 42.42mm OD x 19.3mm L

1-1/4 ID x 1 in

2шт.

32

87447575

PIVOT PIN,31.75mm OD x 138mm L

With Flag, 31.75 x 115.8L, Length From Bottom Of Flag To Circlip Groove

4шт.

33

103-16125

SNAP RING,#125, Ext

4шт.

34

310565A1

WASHER,32mm ID x 51mm OD x 3.5mm Thk

Plastic

22шт.

35

87340581

SUPPORT TUBE

Park Stand

2шт.

36

87454046

FOOT

Park Stand

2шт.

37

87451491

PLATE

Park Stand Storage

2шт.

38

87421748

HAIR PIN COTTER

4шт.

39

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

40

495-11053

WASHER,1/2", SAE

2шт.

41

231-5348

FLANGE NUT,Flg, 1/2"-13

2шт.

42

86979962

WARNING DECAL

Safety, Not Illustrated

1шт.

See Figure 09-18

1шт.

43

86979960

DANGER DECAL

Safety, Not Illustrated

1шт.

See Figure 09-18

1шт.

44

86979961

DANGER DECAL

Safety, Not Illustrated

2шт.

See Figure 09-18

1шт.
