Запчасти Case IH LX252 (09-01) - FRAME - WITHOUT MECHANICAL SELF-LEVEL - BSN CAE0022124 (09) - CHASSIS/ATTACHMENTS

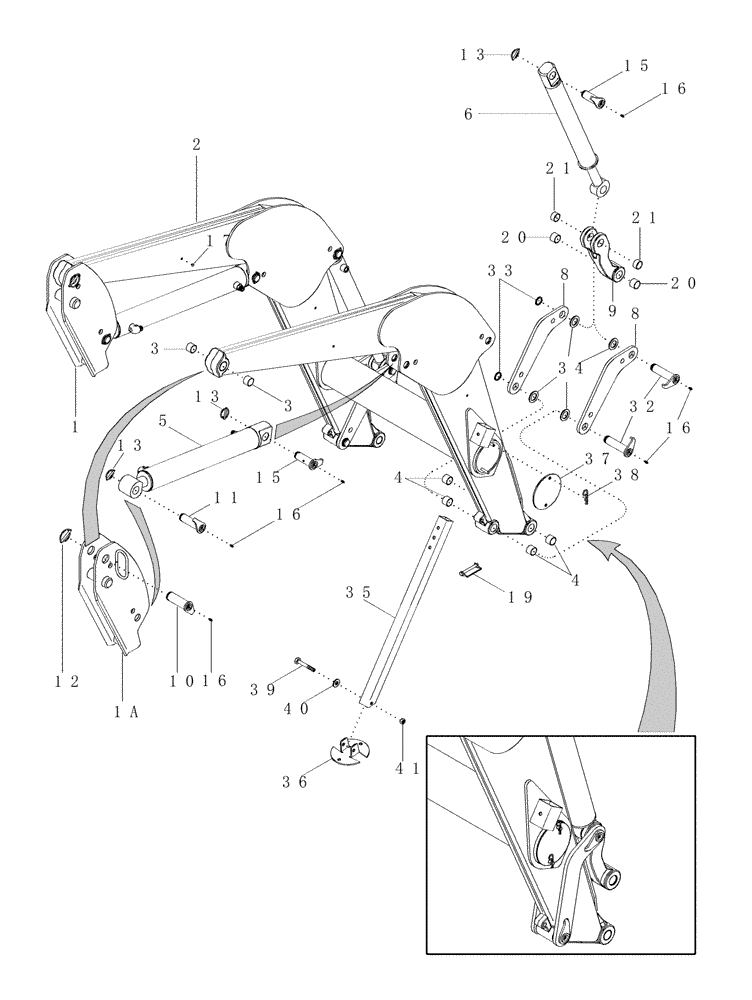

Схема запчастей Case IH LX252 - (09-01) - FRAME - WITHOUT MECHANICAL SELF-LEVEL - BSN CAE0022124 (09) - CHASSIS/ATTACHMENTS
32
5
17
19
40
20
9
8
38
4
34
16
20
37
3
13
4
36
33
21
16
35
3
39
1a
13
15
6
41
11
8
10
16
15
16
2
21
1
13
12

Артикул

Название

Примечание

Количество

1

87448465

TOWER

LH, Inc. 44

1шт.

1a

87448468

TOWER

RH, Inc. 43

1шт.

2

87448461

FRAME ASSY

Loader, Inc. 3, 4, 45

1шт.

3

318872A1

BUSHING

1-1/2 ID x 1 in

4шт.

4

310955A1

BUSHING

1-1/4 ID x 1 in

8шт.

5

87448470

CYLINDER ASSY.

Lift

2шт.

See Figure 08-10

1шт.

6

87448473

CYLINDER ASSY.

Bucket

2шт.

See Figure 08-14

1шт.

8

87448475

PLATE ASSY.

PLATE

4шт.

9

310954A1

LINK ASSY.

Inc. 20,21

2шт.

10

87454475

PIVOT PIN,38.1mm OD x 114mm L

With Flag, 38.1 x 103 mm (1-1/2 x 4)

2шт.

11

87454473

PIVOT PIN,31.75mm OD x 130mm L

With Flag, 31.75 x 103 mm (1-1/4 x 4)

2шт.

12

A61560

LOCK PIN

Klik

2шт.

13

A30338

PIN

Klik

6шт.

15

87447569

PIVOT PIN,31.75mm OD x 111mm L

With Flag, 31.75 x 84 mm (1-1/4 x 3-3/8)

4шт.

16

219-14

LUBE NIPPLE,1/4" NPTF

12шт.

17

CL5306

PLUG

5шт.

19

86591354

LOCK PIN

2шт.

20

310955A1

BUSHING

1-1/4 ID x 1 in

2шт.

21

324304A1

BUSHING

1-1/4 ID x 3/4 in

2шт.

32

87447573

PIVOT PIN,31.75mm OD x 124.5mm L

With Flag, 31.75 x 102 mm (1-1/4 x 4)

4шт.

33

103-16125

SNAP RING,#125, Ext

4шт.

34

310565A1

WASHER,32mm ID x 51mm OD x 3.5mm Thk

Plastic

8шт.

35

87454044

TUBE,1030 mm L

Park Stand

2шт.

36

87454046

FOOT

Park Stand

2шт.

37

87451491

PLATE

Park Stand Storage

2шт.

38

87421748

HAIR PIN COTTER

4шт.

39

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

40

495-11053

WASHER,1/2", SAE

2шт.

41

231-5348

FLANGE NUT,Flg, 1/2"-13

2шт.

42

86979962

WARNING DECAL

Safety, Not Illustrated

1шт.

See Figure 09-18

1шт.

43

86979960

DANGER DECAL

Safety, Not Illustrated

1шт.

See Figure 09-18

1шт.

44

86979961

DANGER DECAL

Safety, Not Illustrated

2шт.

See Figure 09-18

1шт.

Выбрано товаров: 37
