(08-14) - CYLINDER ASSEMBLY - BUCKET - WITHOUT MECHANICAL SELF-LEVEL - BSN CAE0022124

Запчасти Case IH LX252 (08-14) - CYLINDER ASSEMBLY - BUCKET - WITHOUT MECHANICAL SELF-LEVEL - BSN CAE0022124 (08) - HYDRAULICS

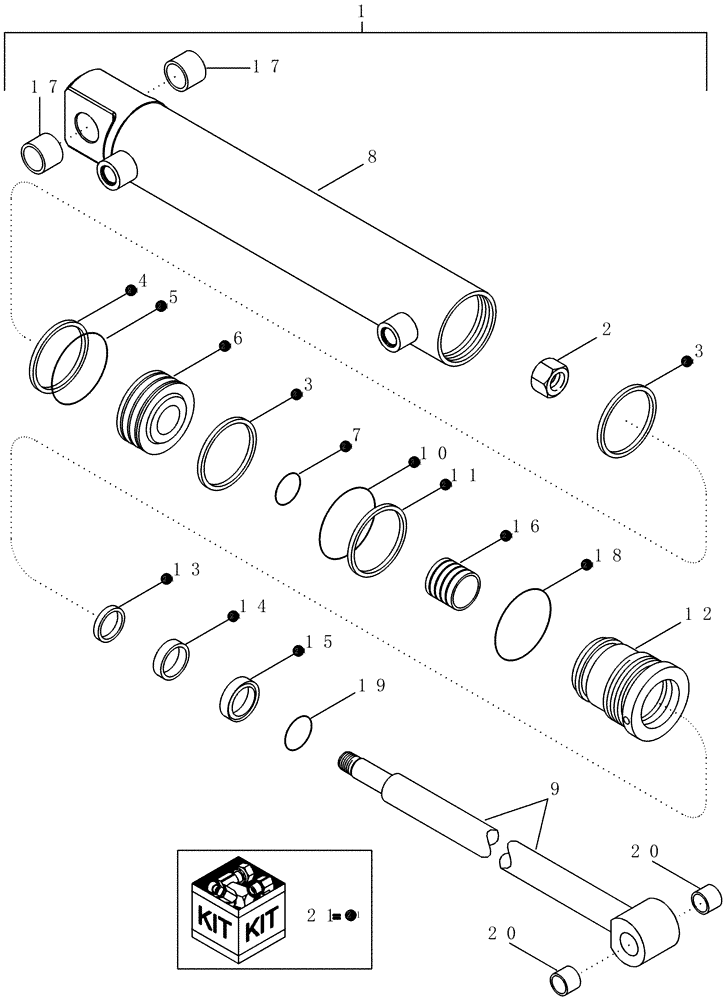

Схема запчастей Case IH LX252 - (08-14) - CYLINDER ASSEMBLY - BUCKET - WITHOUT MECHANICAL SELF-LEVEL - BSN CAE0022124 (08) - HYDRAULICS
21
3
4
21
21
21
21
21
1
9
15
16
21
21
3
6
21
21
20
18
5
21
17
13
12
19
8
21
14
20
11
21
10
21
21
2
7
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87448473

CYLINDER ASSY.

Bucket, Inc. 2 - 20

1шт.

Without Self-Level

1шт.

2

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

NSS

NOT SOLD SEPARAT

Piston

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

NSS

NOT SOLD SEPARAT

Rod

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

12

NSS

NOT SOLD SEPARAT

Head

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, Step

1шт.

14

NSS

NOT SOLD SEPARAT

Seal, U-cup

1шт.

15

NSS

NOT SOLD SEPARAT

Wiper

1шт.

16

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

17

NSS

NOT SOLD SEPARAT

Bushing

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

19

NSS

NOT SOLD SEPARAT

O-Ring, Paint Shield

1шт.

20

NSS

NOT SOLD SEPARAT

Bushing

2шт.

21

87445929

SEAL KIT

Seal, Inc. 3 - 5, 7, 10, 11, 13 -16, 18

1шт.
