(08-12) - CYLINDER ASSEMBLY - LIFT - WITH MECHANICAL SELF-LEVEL - BSN CAE0022036

Запчасти Case IH LX252 (08-12) - CYLINDER ASSEMBLY - LIFT - WITH MECHANICAL SELF-LEVEL - BSN CAE0022036 (08) - HYDRAULICS

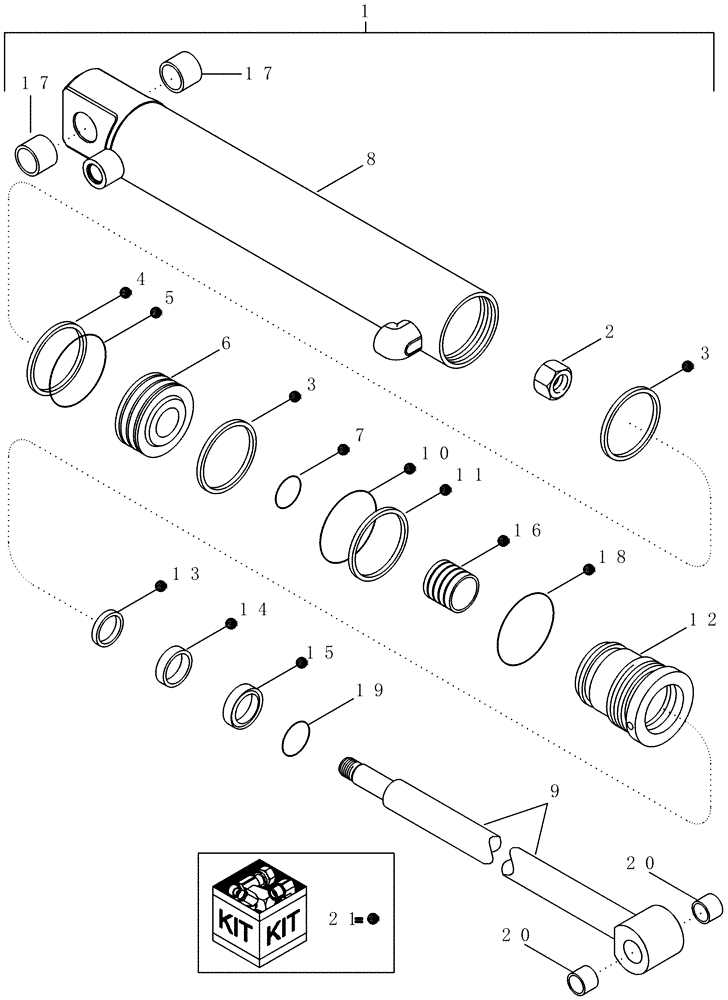

Схема запчастей Case IH LX252 - (08-12) - CYLINDER ASSEMBLY - LIFT - WITH MECHANICAL SELF-LEVEL - BSN CAE0022036 (08) - HYDRAULICS
3
20
8
21
11
21
19
2
16
12
21
15
6
21
21
21
21
4
3
10
21
5
21
1
7
14
20
9
17
13
18
21
21
21
17
21
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87449054

CYLINDER ASSY.

Lift, Inc. 2 - 20

1шт.

With Mechanical Self-Level

1шт.

2

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

NSS

NOT SOLD SEPARAT

Piston

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

NSS

NOT SOLD SEPARAT

Rod

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

12

NSS

NOT SOLD SEPARAT

Head

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, Step

1шт.

14

NSS

NOT SOLD SEPARAT

Seal, U-cup

1шт.

15

NSS

NOT SOLD SEPARAT

Wiper

1шт.

16

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

17

NSS

NOT SOLD SEPARAT

Bushing

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

19

NSS

NOT SOLD SEPARAT

O-Ring, Paint Shield

1шт.

20

NSS

NOT SOLD SEPARAT

Bushing

2шт.

21

352545A1

SEAL KIT

Seal, Inc. 3 - 5, 7, 10, 11, 13 - 16, 18

1шт.
