(08-11) - CYLINDER ASSEMBLY - LIFT - WITHOUT MECHANICAL SELF-LEVEL - ASN CAE0022124

Запчасти Case IH LX252 (08-11) - CYLINDER ASSEMBLY - LIFT - WITHOUT MECHANICAL SELF-LEVEL - ASN CAE0022124 (08) - HYDRAULICS

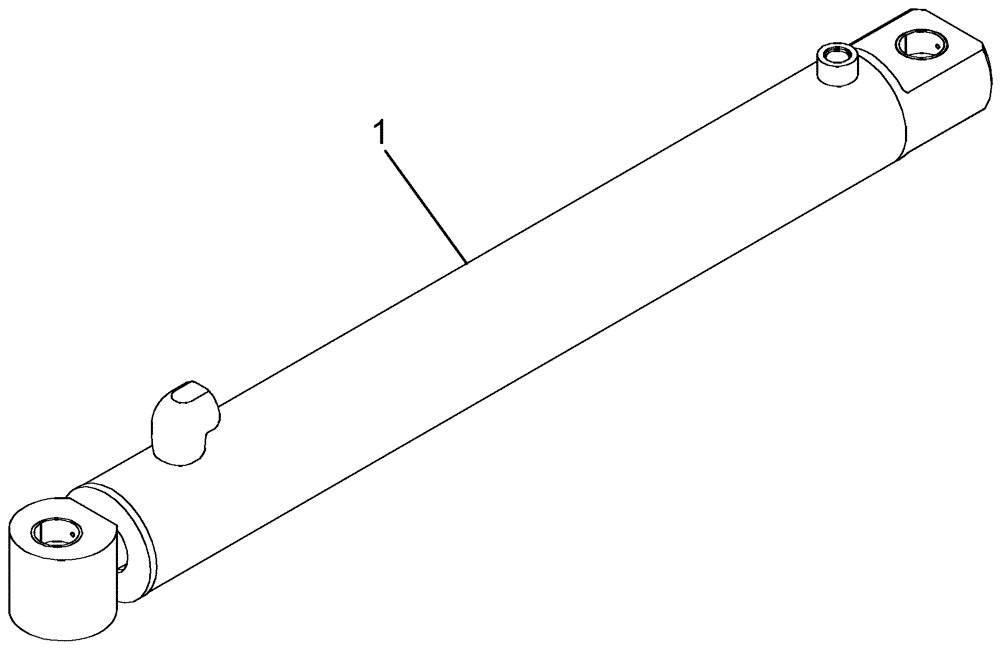

Схема запчастей Case IH LX252 - (08-11) - CYLINDER ASSEMBLY - LIFT - WITHOUT MECHANICAL SELF-LEVEL - ASN CAE0022124 (08) - HYDRAULICS
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87340183

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 618.9mm Stroke

Lift

1шт.

Without Self-Level

1шт.

87377189

REPAIR KIT

Rod Repair

1шт.

87377190

REPAIR KIT

Piston Repair

1шт.

87377194

REPAIR KIT

Head Repair

1шт.

87377195

REPAIR KIT

Seal Repair

1шт.
