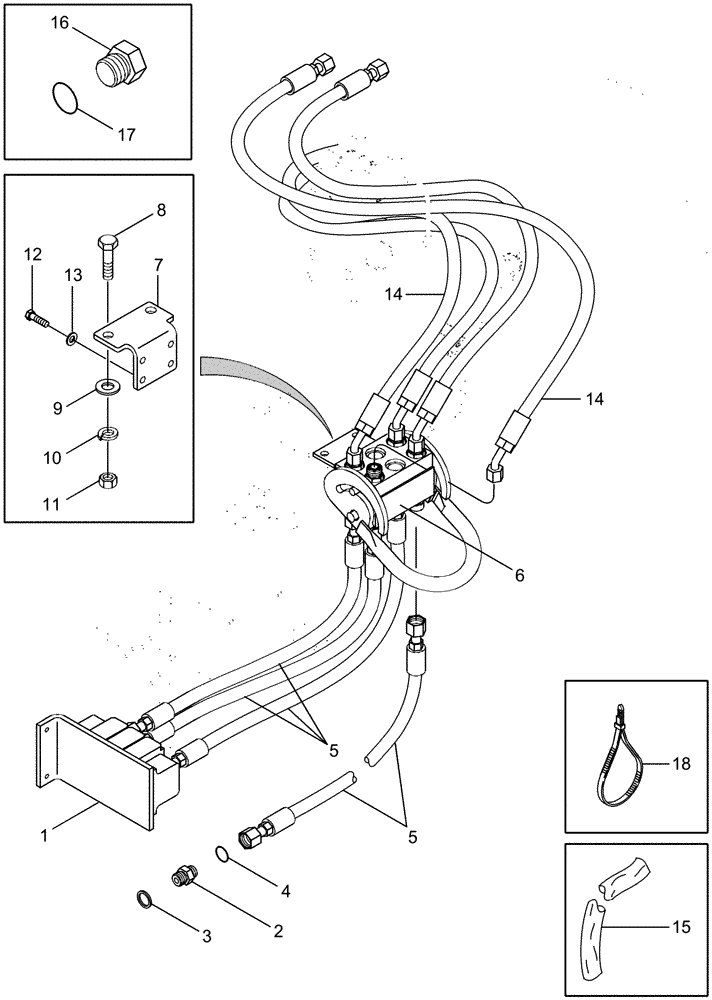

Запчасти Case IH LX232 (08-07) - HYDRAULICS - JX1U TRACTOR - MID MOUNT (2 FUNCTION ONE LEVER QUICK CONNECT) (08) - HYDRAULICS

1

REF

INSTRUCTION

Loader Valve

1шт.

See JX1U Tractor Catalog

1шт.

2

87403694

FITTING

Din Male, Inc. 3, 4

4шт.

3

87406796

SEAL

M18 x 1.5

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

87403677

HOSE,12.70 mm ID x 730.20 mm, SAE 100R17 Class 25

Faster Coupler to Loader Valve

4шт.

6

REF

INSTRUCTION

Coupler, One Lever Quick Connect

1шт.

See Figure 08-24

1шт.

7

87456254

BRACKET

Coupler Mounting

1шт.

8

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

9

495-11053

WASHER,1/2", SAE

2шт.

10

492-11050

LOCK WASHER,1/2"

2шт.

11

425-108

NUT,1/2" - 13, Gr 5

2шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

13

892-11008

LOCK WASHER,8mm ID

4шт.

14

87403683

HOSE,12.70 mm ID x 1771.60 mm, SAE 100R17 Class 25

Boom to Faster Coupler

4шт.

15

87405294

SLEEVE

4 Hose, 54 inch

1шт.

87407019

KIT

Loader Valve, Inc. 16, 17

1шт.

16

220067A1

PLUG,M22 x 1.5 ORB

Loader Valve

1шт.

17

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Loader Valve

1шт.

18

1985078C2

SET OF PARTS

Color Tie Straps

1шт.
