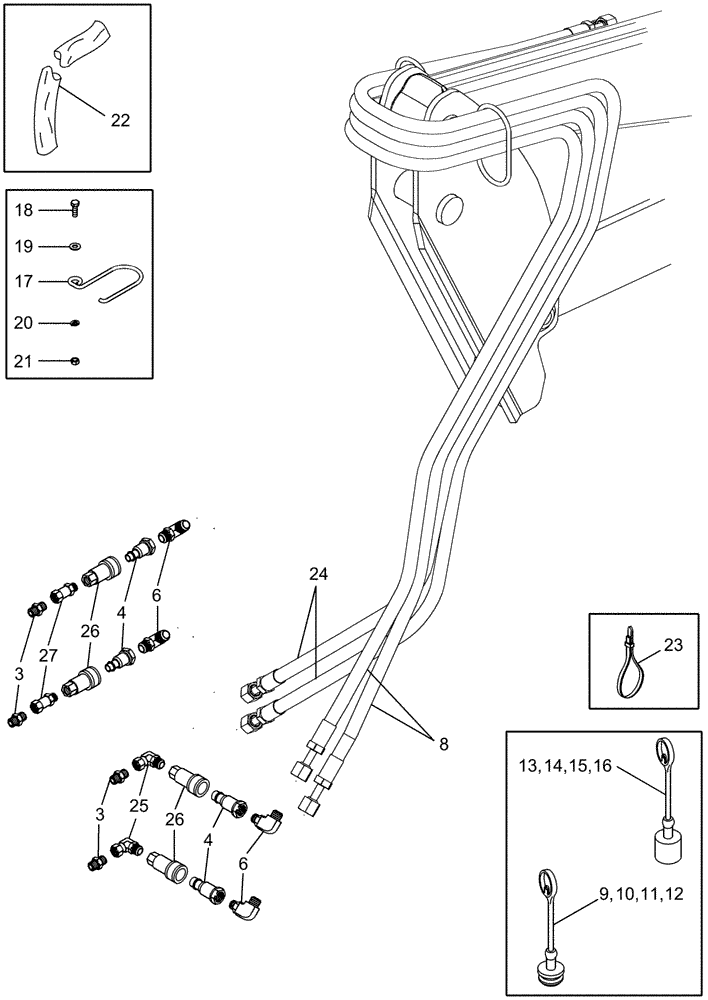

Запчасти Case IH LX232 (08-06) - HYDRAULICS - JX1U TRACTOR - MID MOUNT (2 FUNCTION STANDARD QUICK CONNECT) (08) - HYDRAULICS

1

REF

INSTRUCTION

Loader Valve

1шт.

See JX1U Tractor Catalog

1шт.

2

87406796

SEAL

M18 x 1.5

1шт.

3

87403694

FITTING

FEMALE, 3/4 inch with M18 DIN End

4шт.

4

87404022

QUICK MALE COUPLING

3/4 inch

4шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

4шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

87451411

HOSE ASSY.

2110 mm (87 in), Loader Valve to Boom, Inc. 7

2шт.

9

327232A1

CAP

Male, Green

1шт.

10

327227A1

CAP

Male, Blue

1шт.

11

327229A1

CAP

Male, Yellow

1шт.

12

327231A1

CAP

Male, Red

1шт.

13

333722A1

CAP

Female, Green

1шт.

14

333717A1

CAP

Female, Blue

1шт.

15

333719A1

CAP

Female, Yellow

1шт.

16

333721A1

CAP

Female, Red

1шт.

17

87443180

RETAINER

Hose

1шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

19

495-11053

WASHER,1/2", SAE

1шт.

20

492-11050

LOCK WASHER,1/2"

1шт.

21

425-108

NUT,1/2" - 13, Gr 5

1шт.

22

87405292

SLEEVE

4 Hose, 66 inch

1шт.

23

1985078C2

SET OF PARTS

Color Tie Straps

1шт.

87407019

KIT

Loader Valve, Inc. Plug and O-Ring (not shown)

1шт.

220067A1

PLUG,M22 x 1.5 ORB

Loader Valve

1шт.

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Loader Valve

1шт.

24

87346423

HYDRAULIC HOSE,12.70 mm ID x 2336.80 mm

Loader Valve to Boom

2шт.

25

201-349

90 ELBOW,90 Degree Elbow, 13/16" - 16 Female ORFS x 3/4" - 16 Male ORB

2шт.

26

87404023

COUPLING, QUICK, FEM

4шт.

27

87403695

FITTING

2шт.
