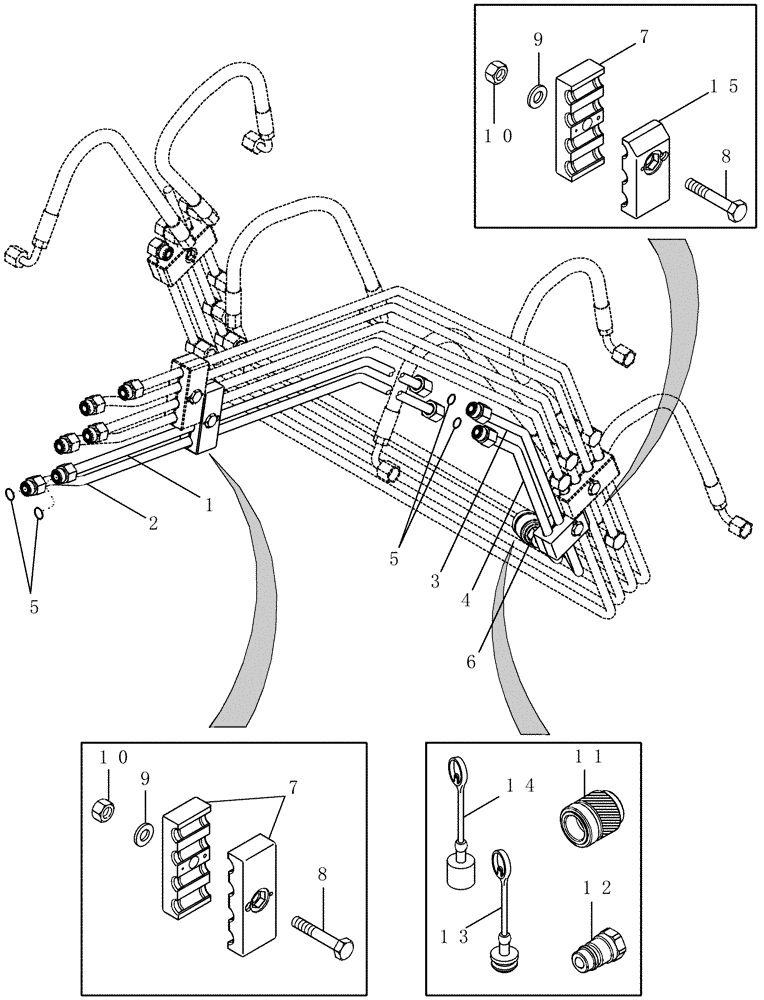

Запчасти Case IH LX232 (08-03) - HYDRAULICS - AUXILIARY (08) - HYDRAULICS

1

86985105

HYD TUBE

Top, Upper, Inc. 5

1шт.

2

86985107

HYD TUBE

Top, Lower, Inc. 5, 6

1шт.

3

86985108

HYD TUBE,0.50" OD

Bottom, Upper, Inc. 5

1шт.

4

86985110

HYD TUBE,0.50" OD

Bottom, Lower, Inc. 5, 6

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

324067A1

BRACKET

3шт.

8

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

10

425-106

NUT,3/8"-16, Cl 5

2шт.

11

399786A1

COUPLING

Hydraulic, Female

1шт.

12

399491A1

QUICK MALE COUPLING

Hydraulic, Male

1шт.

13

327230A1

CAP

Male, Black

1шт.

14

333718A1

CAP

Female, Orange

1шт.

15

87444551

CLAMP

1шт.
