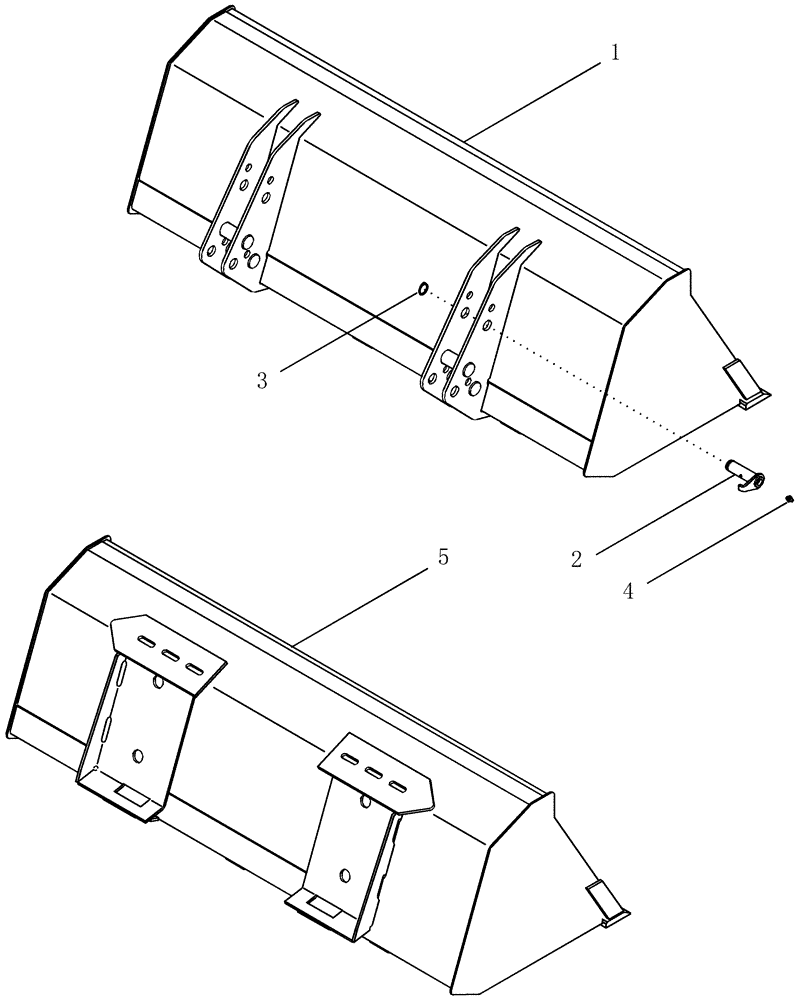

Запчасти Case IH LX232 (09-19) - MATERIAL BUCKETS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

BUCKET, 72 in, Low Profile, Standard Attach

1шт.

Order 715717096 From Machinery Price List

1шт.

2

87447573

PIVOT PIN,31.75mm OD x 124.5mm L

With Flag, 1-1/4 x 4

4шт.

Pin for use with 219-87, Zerk Fitting

1шт.

3

103-16125

SNAP RING,#125, Ext

4шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

5

REF

INSTRUCTION

BUCKET, 72 in, Low Profile, Quick Attach Type

1шт.

Order 715727036 From Machinery Price List

1шт.

5

REF

INSTRUCTION

BUCKET, 72 in, Low Profile Heavy Duty, Quick Attach Type

1шт.

Order 715730076 From Machinery Price List

1шт.

5

REF

INSTRUCTION

BUCKET, 78 in, Low Profile Heavy Duty, Quick Attach Type

1шт.

Order 717111016 From Machinery Price List

1шт.

5

REF

INSTRUCTION

BUCKET, 84 in, Low Profile Heavy Duty, Quick Attach Type

1шт.

Order 715746036 From Machinery Price List

1шт.

5

REF

INSTRUCTION

BUCKET, 84 in, Heavy Duty, Quick Attach Type

1шт.

Order 715725066 From Machinery Price List

1шт.
