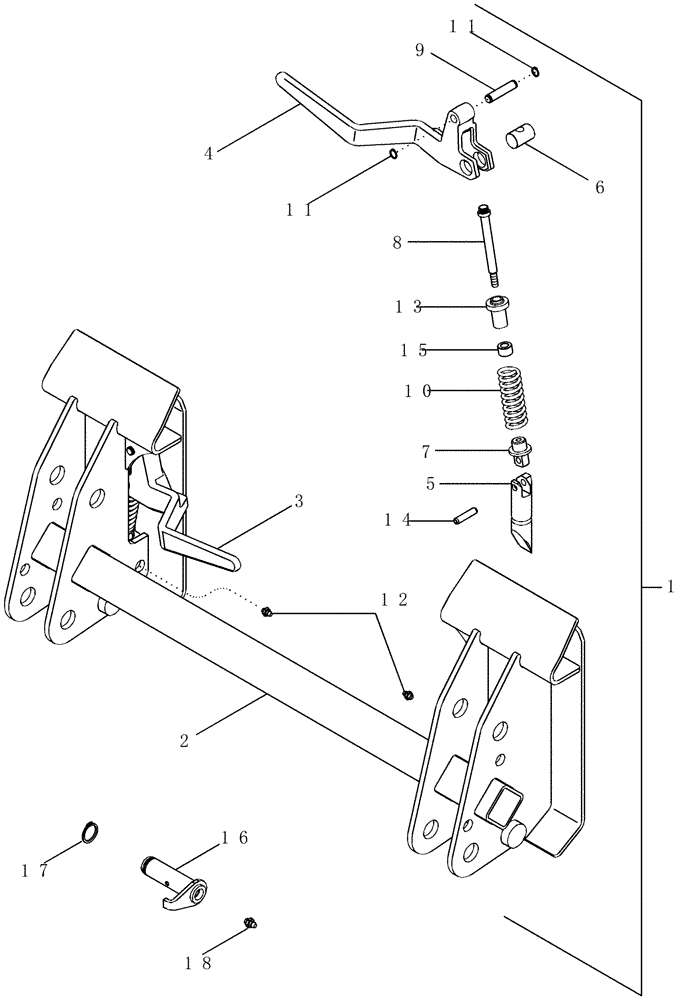

Запчасти Case IH LX232 (09-18) - QUICK ATTACH ADAPTER (09) - CHASSIS/ATTACHMENTS

1

87454418

COUPLING

Assembly, Inc. 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

FRAME

1шт.

3

86545522

LEVER

Left Hand

1шт.

4

86545523

HANDLE

Right Hand

1шт.

5

87413030

PIN

2шт.

6

9829733

PIN,25.4mm OD x 39mm L

2шт.

7

86510869

PIN,22.20mm OD x 43.6mm L

2шт.

8

86506112

12 PT SCREW,3/8" - 16 x 5" L

2шт.

9

86538563

PIN,12.7mm OD x 60.6mm L

2шт.

10

86610167

SPRING,Compression, 35.15mm OD x 101.6mm L

2шт.

11

86571009

SNAP RING,#50, Ext

4шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

13

86610166

GUIDE,13.5mm ID x 22mm OD x 46.6mm L

2шт.

14

86616372

LOCK PIN,9.53mm OD x 44.45mm L, Slotted

2шт.

15

87412041

SPACER,13.88mm ID x 21.34mm OD x 12mm L

Bushing

2шт.

16

87447573

PIVOT PIN,31.75mm OD x 124.5mm L

4шт.

17

103-16125

SNAP RING,#125, Ext

4шт.

18

87414

LUBE NIPPLE,1/4" - 28

2шт.
