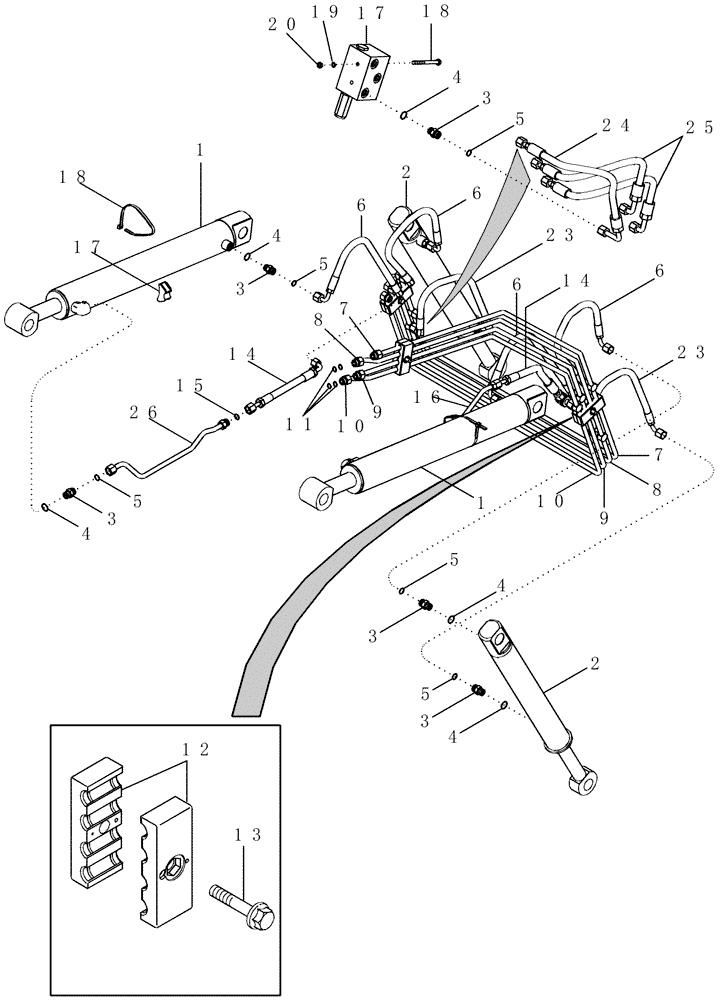

Запчасти Case IH LX232 (08-02) - HYDRAULICS - LOADER FRAME - WITH MECHANICAL SELF-LEVEL (08) - HYDRAULICS

1

87438479

CYLINDER ASSY.

Lift, Serial Range: -CAE0021635

2шт.

See Figure 08-15

1шт.

1

87318941

CYLINDER,Double Acting, 38.1mm Rod, 499.87mm Stroke

Lift, Start Serial: CAE0021635

2шт.

See Figure 08-16

1шт.

2

87438859

CYLINDER ASSY.

Bucket, Serial Range: -CAE0021635

2шт.

See Figure 08-19

1шт.

2

87318946

BUCKET CYLINDER,Double Acting, 38mm Rod, 474mm Stroke

, Start Serial: CAE0021635

2шт.

See Figure 08-20

1шт.

3

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 4, 5

11шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

346111A1

HOSE

559 mm (22 in)

4шт.

7

87431754

HYD TUBE,.5" OD

Bucket Cylinder, Head End, Inc. 11

1шт.

8

87431755

HYD TUBE,.5" OD

Bucket Cylinder, Rod End, Inc. 11

1шт.

9

87420866

HYD TUBE,.5" OD

Lift Cylinder, Head End, Inc. 11

1шт.

10

87420863

HYD TUBE,.5" OD

Lift Cylinder, Rod End, Inc. 11

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

324067A1

BRACKET

6шт.

13

281-54932

SCREW,Hex Wshr Hd, 3/8" - 16 x 2"

3шт.

14

87444341

HOSE

Lift Cylinder, Inc. 15

2шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

87444340

TUBE,0.5" OD

Lift Cylinder

1шт.

17

86988707

VALVE PRESSURE RELIE

1шт.

See Figure 08-23

1шт.

18

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

2шт.

19

492-11025

LOCK WASHER,1/4"

2шт.

20

425-104

NUT,1/4"-20, Cl 5

2шт.

21

D38648

BLOCK

2шт.

22

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

2шт.

23

87405450

HOSE ASSY.

711 mm (28 in)

2шт.

24

87405390

HOSE ASSY.

508 mm (20 in)

1шт.

25

87405388

HOSE ASSY.

432 mm (17 in)

2шт.

26

87443380

HYD TUBE,0.5" OD

Lift Cylinder

1шт.
