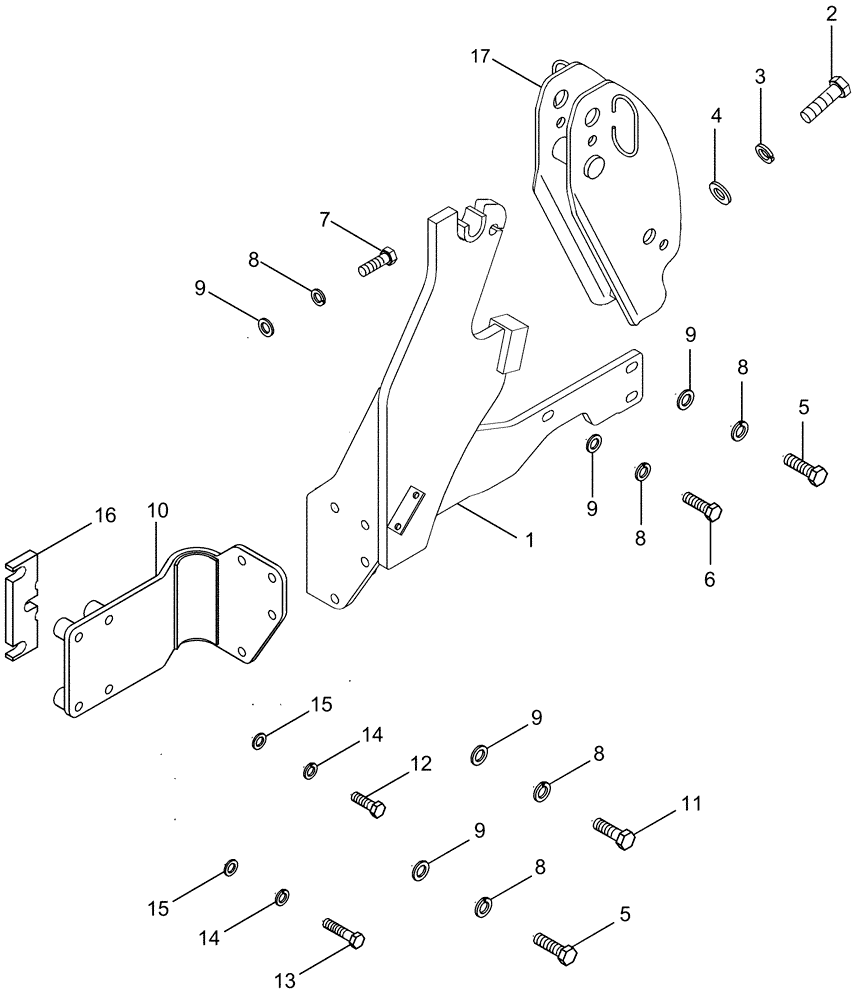

Запчасти Case IH LX232 (09-09) - MOUNTING BRACKETS - JX TRACTOR (09) - CHASSIS/ATTACHMENTS

1

87314979

BRACKET

RH, Front, 4 Cylinder JX75, JX85

1шт.

1

87314978

BRACKET

LH, Front (Not Shown), 4 Cylinder JX75, JX85

1шт.

1

87314977

BRACKET

RH, Front, 3 Cylinder JX55, JX65

1шт.

1

87314976

BRACKET

LH, Front, 3 Cylinder JX55, JX65

1шт.

2

426-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

2шт.

3

492-11100

LOCK WASHER,1"

2шт.

4

496-31106

WASHER,1 1/16" x 2" x .219", HDN

2шт.

5

814-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 8.8

10шт.

6

11125221

BOLT,Hex, M20 x 75, 8.8

4шт.

7

614-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

8шт.

8

892-11020

LOCK WASHER,M20

24шт.

9

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

24шт.

10

87314861

BRACKET

RH, Rear

1шт.

10

87314860

SUPPORT

LH, Rear (Not Shown)

1шт.

11

814-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 8.8

2шт.

12

514-1020

BOLT,Hex, M16 x 1.5 x 60mm, Cl 8.8, Full Thd

6шт.

13

87010560

BOLT,Hex, M16 x 1.5 x 100mm, Cl 8.8

2шт.

14

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

8шт.

15

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

16

447070A2

PLATE

SPACER Rear Mounting Bracket

2шт.

17

REF

INSTRUCTION

Tower Assembly

1шт.

See Figures 09-01, 09-02

1шт.
