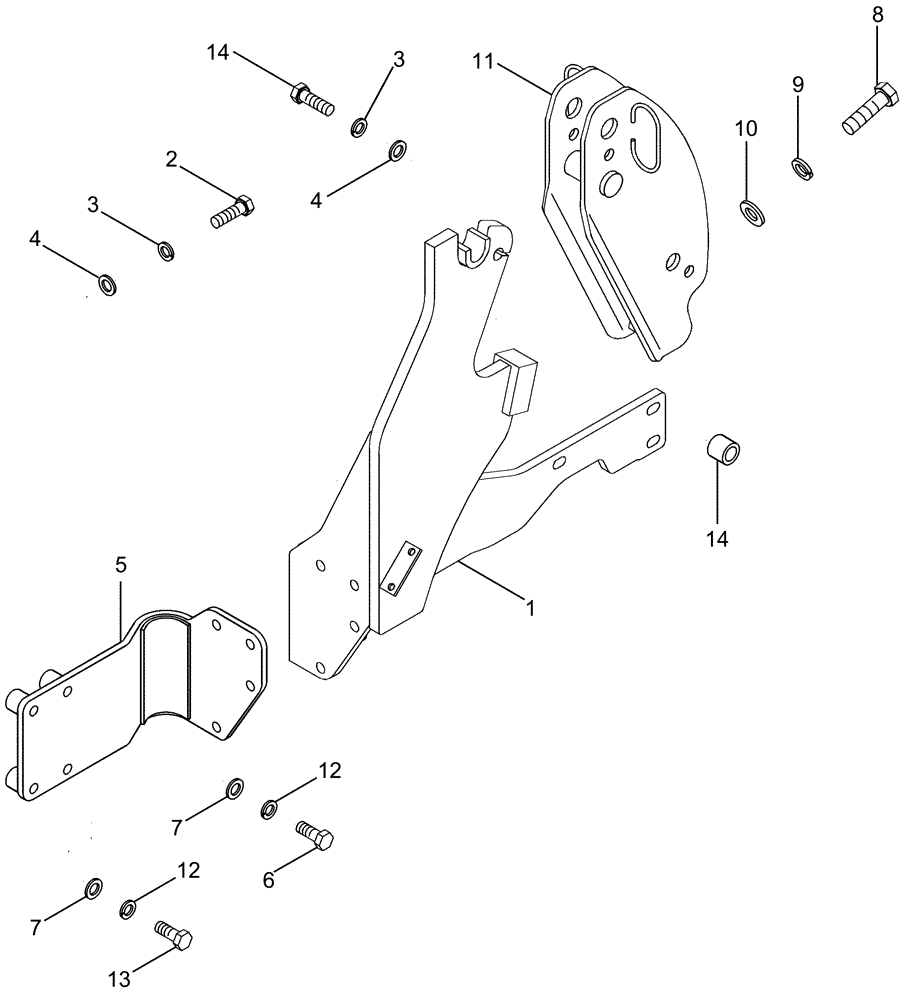

Запчасти Case IH LX232 (09-07) - MOUNTING BRACKETS - JX95 TRACTOR (09) - CHASSIS/ATTACHMENTS

1

87314863

BRACKET

Right Hand

1шт.

1

87314862

BRACKET

Left Hand (Not Shown)

1шт.

2

614-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

8шт.

3

892-11020

LOCK WASHER,M20

12шт.

4

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

14шт.

5

87314861

BRACKET

Right Hand, Rear

1шт.

5

87314860

SUPPORT

Left Hand, Rear (Not Shown)

1шт.

6

514-1020

BOLT,Hex, M16 x 1.5 x 60mm, Cl 8.8, Full Thd

6шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

8

426-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

2шт.

9

492-11100

LOCK WASHER,1"

2шт.

10

496-31106

WASHER,1 1/16" x 2" x .219", HDN

2шт.

11

REF

INSTRUCTION

Tower Assembly

1шт.

See Figures 09-01, 09-02

1шт.

12

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

8шт.

13

87010560

BOLT,Hex, M16 x 1.5 x 100mm, Cl 8.8

2шт.

14

827-20110

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

4шт.

15

87376357

TUBE SPACER

4шт.
