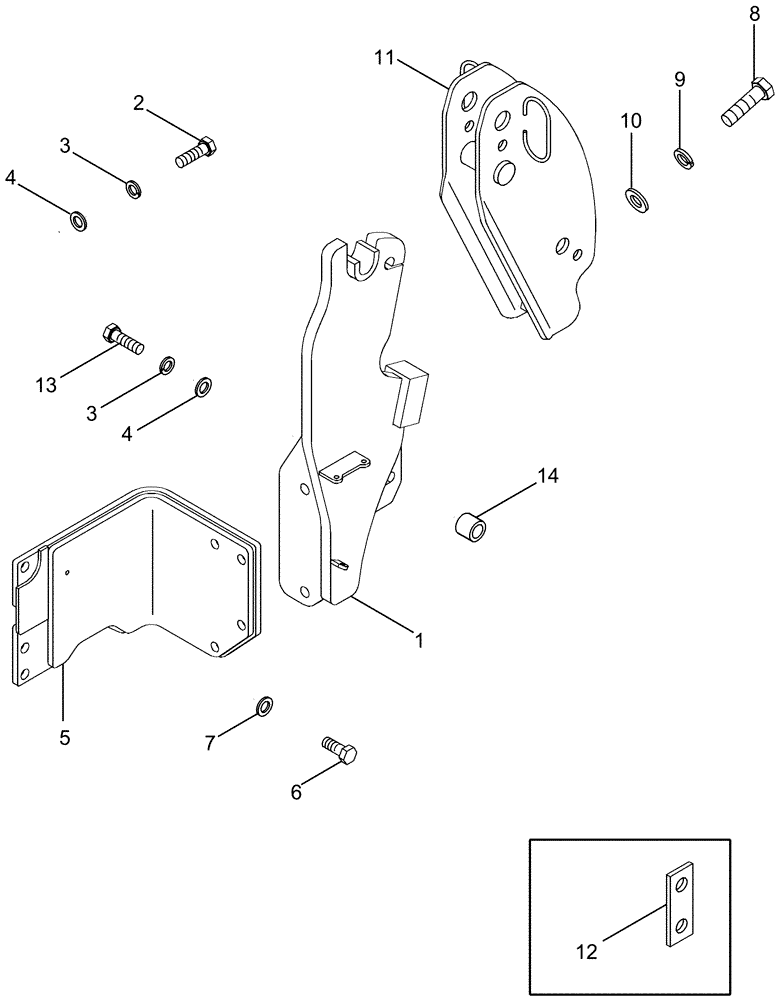

Запчасти Case IH LX232 (09-06) - MOUNTING BRACKETS - JXC TRACTOR (09) - CHASSIS/ATTACHMENTS

1

87373032

BRACKET

Right Hand

1шт.

1

87373031

BRACKET

Left Hand (Not Shown)

1шт.

2

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

12шт.

3

892-11020

LOCK WASHER,M20

12шт.

4

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

14шт.

5

87373035

PLATE

Right Hand, Rear

1шт.

5

87373033

PLATE

Left Hand, Rear (Not Shown)

1шт.

6

627-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

2шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

2шт.

8

426-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

2шт.

9

492-11100

LOCK WASHER,1"

2шт.

10

496-31106

WASHER,1 1/16" x 2" x .219", HDN

2шт.

11

REF

INSTRUCTION

Tower Assembly

1шт.

See Figures 09-01, 09-02

1шт.

12

87442292

PLATE ASSY.

3/16 inch (5 mm) Thick

2шт.

13

827-20110

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

4шт.

14

87376357

TUBE SPACER

4шт.
