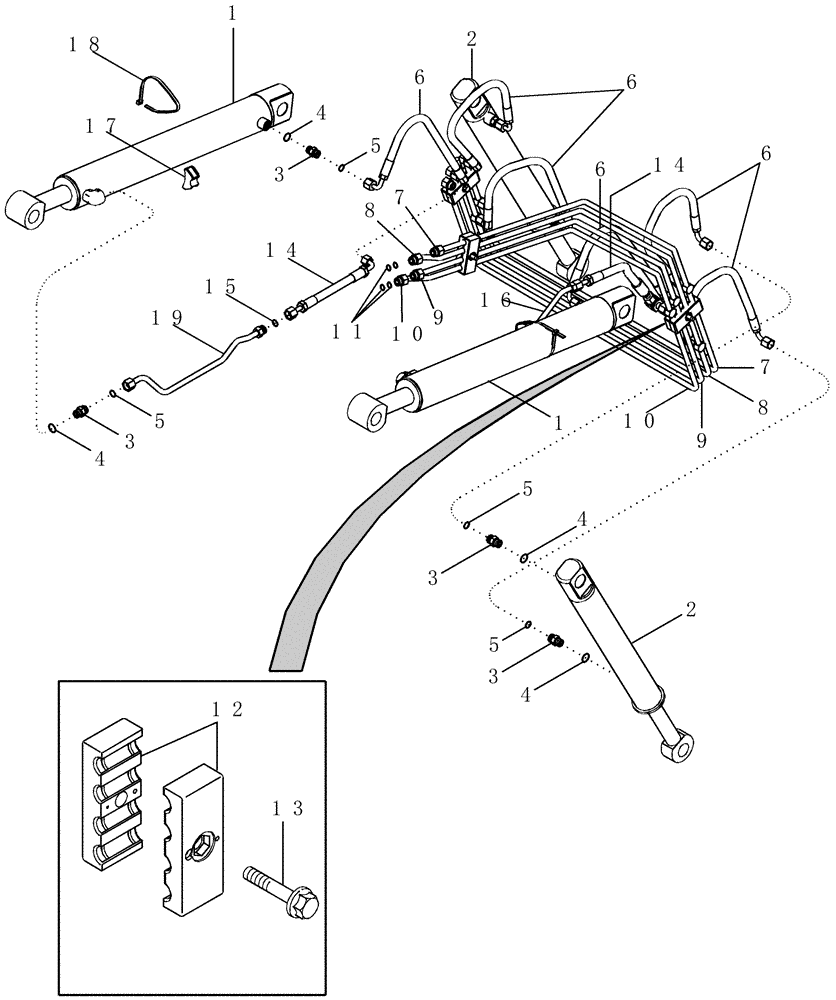

Запчасти Case IH LX232 (08-01) - HYDRAULICS - LOADER FRAME - WITHOUT SELF-LEVEL (08) - HYDRAULICS

1

87438461

CYLINDER ASSY.

Lift, Serial Range: -CAE0021674

2шт.

See Figure 08-13

1шт.

1

87318933

CYLINDER,Double Acting, 38.1mm Rod, 523.49mm Stroke

Lift, Start Serial: CAE0021674

2шт.

See Figure 08-14

1шт.

2

87438856

CYLINDER ASSY.

Bucket, Serial Range: -CAE0021674

2шт.

See Figure 08-17

1шт.

87318936R

REMAN-HYD CYLINDER

LX232, (2/04-), Reman For New P/N 87318936

2шт.

87318936C

CORE-HYD CYLINDER

Return Number

1шт.

2

87318936

BUCKET CYLINDER,Double Acting, 38.1mm Rod, 430.28mm Stroke

, Start Serial: CAE0021674

2шт.

See Figure 08-18

1шт.

87318936R

REMAN-HYD CYLINDER

LX232, (2/04-)

2шт.

87318936C

CORE-HYD CYLINDER

Return Number

1шт.

3

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 4, 5

8шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

346111A1

HOSE

6шт.

7

87420860

HYD TUBE,.5" OD

Bucket Cylinder, Head End, Inc. 11

1шт.

8

87420861

HYD TUBE,.5" OD

Bucket Cylinder, Rod End, Inc. 11

1шт.

9

87420862

HYD TUBE,.5" OD

Lift Cylinder, Head End, Inc. 11

1шт.

10

87420863

HYD TUBE,.5" OD

Lift Cylinder, Rod End, Inc. 11

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

324067A1

BRACKET

6шт.

13

281-54932

SCREW,Hex Wshr Hd, 3/8" - 16 x 2"

3шт.

14

87444341

HOSE

Lift Cylinder, Inc. 15

2шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

87444340

TUBE,0.5" OD

Lift Cylinder

1шт.

17

D38648

BLOCK

2шт.

18

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

2шт.

19

87443380

HYD TUBE,0.5" OD

Lift Cylinder

1шт.
