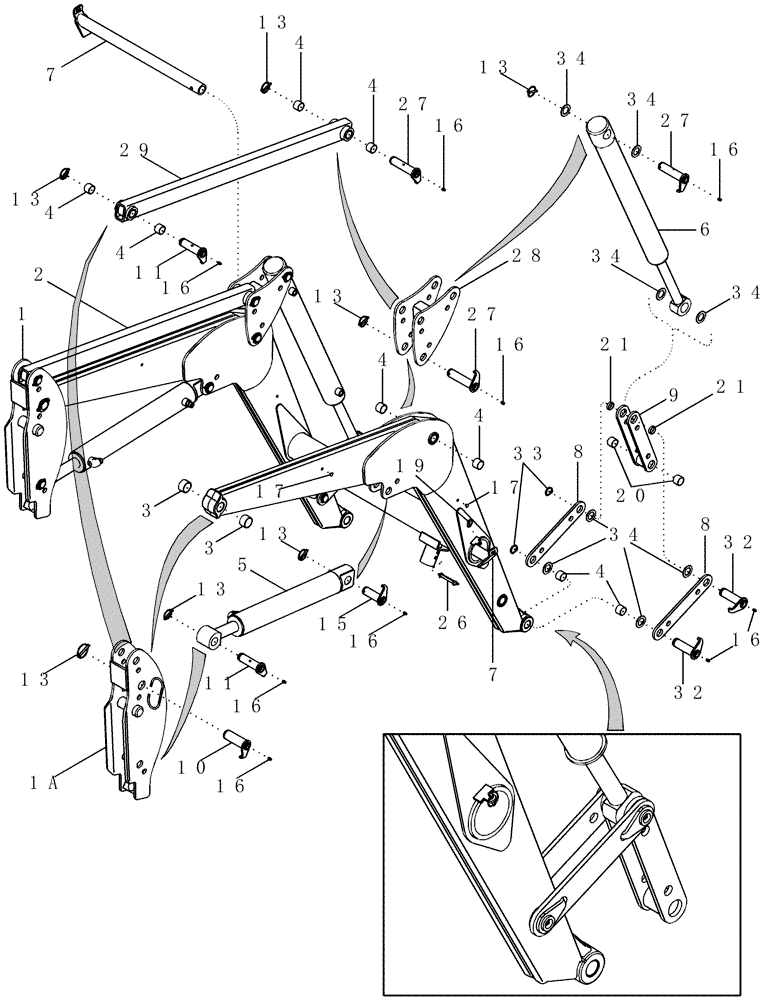

Запчасти Case IH LX232 (09-03) - FRAME - WITH MECHANICAL SELF-LEVEL - BSN CAE0021635 (09) - CHASSIS/ATTACHMENTS

1

87438473

TOWER

Left Hand, Inc. 35, 36

1шт.

1a

87438476

TOWER

Right Hand, Inc. 35, 36

1шт.

2

87438468

FRAME ASSY

Loader, Inc. 3, 4 (12), 37

1шт.

3

318872A1

BUSHING

1-1/2 ID x 1 in

4шт.

4

310955A1

BUSHING

1-1/4 ID x 1 in

16шт.

5

87438479

CYLINDER ASSY.

Lift

2шт.

See Figure 08-15

1шт.

6

87438859

CYLINDER ASSY.

Bucket

2шт.

See Figure 08-19

1шт.

7

87444698

TUBE

Park

2шт.

8

87439798

PLATE ASSY.

4шт.

9

87439705

LINK ASSY.

2шт.

10

87447567

PIN ASSY.

1-1/2 OD

2шт.

Pin for use with 219-14, Zerk Fitting

1шт.

10

87454475

PIVOT PIN,38.1mm OD x 114mm L

1-1/2 OD

2шт.

Pin for use with 219-87, Zerk Fitting

1шт.

11

87447565

PIN ASSY.

1-1/4 OD

4шт.

Pin for use with 219-14, Zerk Fitting

1шт.

11

87454473

PIVOT PIN,31.75mm OD x 130mm L

1-1/4 OD

4шт.

Pin for use with 219-87, Zerk Fitting

1шт.

12

A61560

LOCK PIN

2шт.

13

A30338

PIN

12шт.

15

87438884

PIN ASSY.

1-1/4 OD

2шт.

Pin for use with 219-14, Zerk Fitting

1шт.

15

87447569

PIVOT PIN,31.75mm OD x 111mm L

1-1/4 OD

2шт.

Pin for use with 219-87, Zerk Fitting

1шт.

16

219-14

LUBE NIPPLE,1/4" NPTF

18шт.

17

CL5306

PLUG

5шт.

19

302676A1

LINCH PIN

2шт.

20

310955A1

BUSHING

1-1/4 ID x 1 in

4шт.

21

86993051

COLLAR

4шт.

26

86591354

LOCK PIN

2шт.

27

87438885

PIN ASSY.

6шт.

Pin for use with 219-14, Zerk Fitting

1шт.

27

87447571

PIVOT PIN,31.75mm OD x 136.2mm L

6шт.

Pin for use with 219-87, Zerk Fitting

1шт.

28

87434953

PLATE ASSY.

2шт.

29

87434957

LINK ASSY.

Inc. 4 (4)

2шт.

32

87438886

PIN ASSY.

4шт.

Pin for use with 219-14, Zerk Fitting

1шт.

32

87447573

PIVOT PIN,31.75mm OD x 124.5mm L

4шт.

Pin for use with 219-87, Zerk Fitting

1шт.

33

103-16125

SNAP RING,#125, Ext

4шт.

34

310565A1

WASHER,32mm ID x 51mm OD x 3.5mm Thk

Plastic

16шт.

35

86979960

DANGER DECAL

Safety, Not Illustrated

2шт.

See Figure 09-26

1шт.

36

86979962

WARNING DECAL

Safety, Not Illustrated

2шт.

See Figure 09-26

1шт.

37

86979961

DANGER DECAL

Safety, Not Illustrated

2шт.

See Figure 09-26

1шт.
