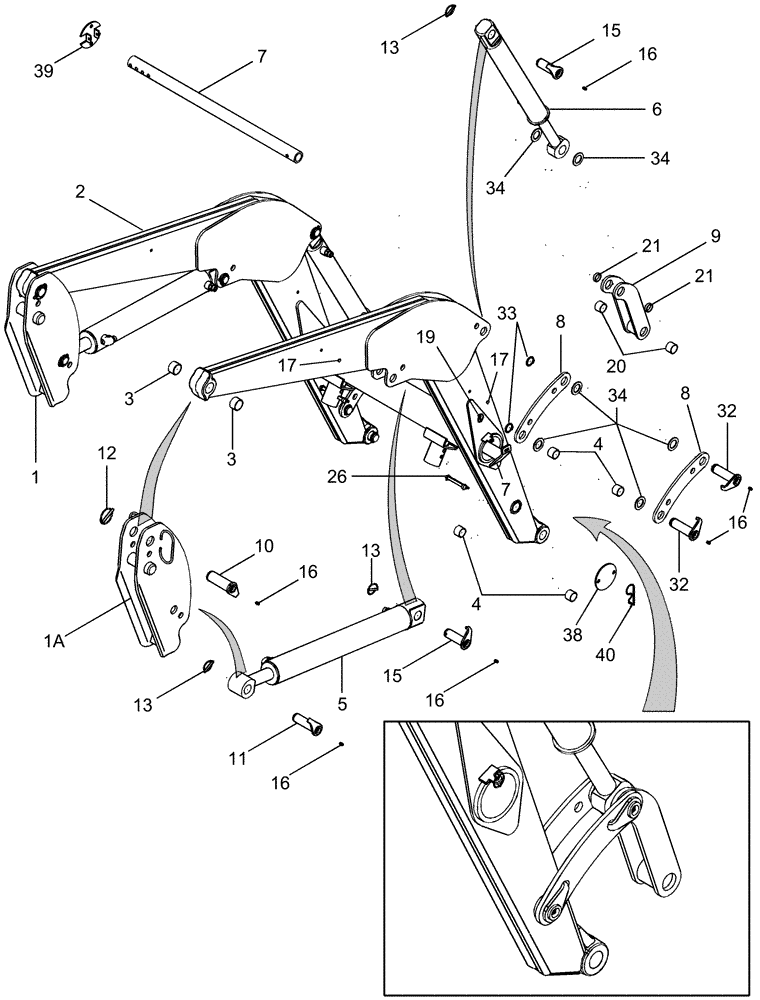

Запчасти Case IH LX232 (09-02) - FRAME - WITHOUT SELF-LEVEL - ASN CAE0021674 (09) - CHASSIS/ATTACHMENTS

1

87337203

TOWER

Left Hand, Inc. 35, 36

1шт.

1a

87337202

TOWER

Right Hand, Inc. 35, 36

1шт.

2

87330830

FRAME

Loader, Inc. 3, 4, 37

1шт.

3

87305979

BUSHING,38.29mm ID x 42.42mm OD x 25.65mm L

1-1/2 ID x 1 in

4шт.

4

87305977

BUSHING,31.93mm ID x 36.06mm OD x 25.65mm L

12шт.

5

87318933

CYLINDER,Double Acting, 38.1mm Rod, 523.49mm Stroke

Lift

2шт.

See Figure 08-14

1шт.

6

87318936

BUCKET CYLINDER,Double Acting, 38.1mm Rod, 430.28mm Stroke

2шт.

See Figure 08-18

1шт.

87318936R

REMAN-HYD CYLINDER

LX232 FRAME - WITHOUT SELF-LEVEL - ASN CAE0021674, (2/04-)

2шт.

87318936C

CORE-HYD CYLINDER

Return Number

1шт.

7

87340581

SUPPORT TUBE

Park

2шт.

8

87335263

PLATE

4шт.

9

87335422

LINK ASSY.

Red

2шт.

10

87454475

PIVOT PIN,38.1mm OD x 114mm L

1-1/2 OD

2шт.

Pin for use with 219-87, Zerk Fitting

1шт.

11

87454473

PIVOT PIN,31.75mm OD x 130mm L

1-1/4 OD

2шт.

Pin for use with 219-87, Zerk Fitting

1шт.

12

A61560

LOCK PIN

2шт.

13

A30338

PIN

6шт.

15

87447569

PIVOT PIN,31.75mm OD x 111mm L

1-1/4 OD

4шт.

Pin for use with 219-87, Zerk Fitting

1шт.

16

219-87

LUBE NIPPLE,1/4" - 28 NPTF

12шт.

17

CL5306

PLUG

5шт.

19

302676A1

LINCH PIN

2шт.

20

87305981

BUSHING,31.73mm ID x 35.72mm OD x 9.78mm L

1-1/4 ID x 1 in, Upper

2шт.

20

87305977

BUSHING,31.93mm ID x 36.06mm OD x 25.65mm L

1-1/4 ID x 1 in, Lower

2шт.

21

86993051

COLLAR

2шт.

26

86591354

LOCK PIN

2шт.

32

87447573

PIVOT PIN,31.75mm OD x 124.5mm L

4шт.

Pin for use with 219-87, Zerk Fitting

1шт.

33

103-16125

SNAP RING,#125, Ext

4шт.

34

310565A1

WASHER,32mm ID x 51mm OD x 3.5mm Thk

Plastic

26шт.

35

86979962

WARNING DECAL

Safety, Not Illustrated

2шт.

See Figure 09-26

1шт.

36

86979960

DANGER DECAL

Safety, Not Illustrated

2шт.

See Figure 09-26

1шт.

37

86979961

DANGER DECAL

Safety, Not Illustrated

2шт.

See Figure 09-26

1шт.

38

87340586

COVER

2шт.

39

87340583

FOOT

Park Stand

2шт.

40

87421748

HAIR PIN COTTER

4шт.

87422937

STOP

(Not Illustrated)

2шт.
