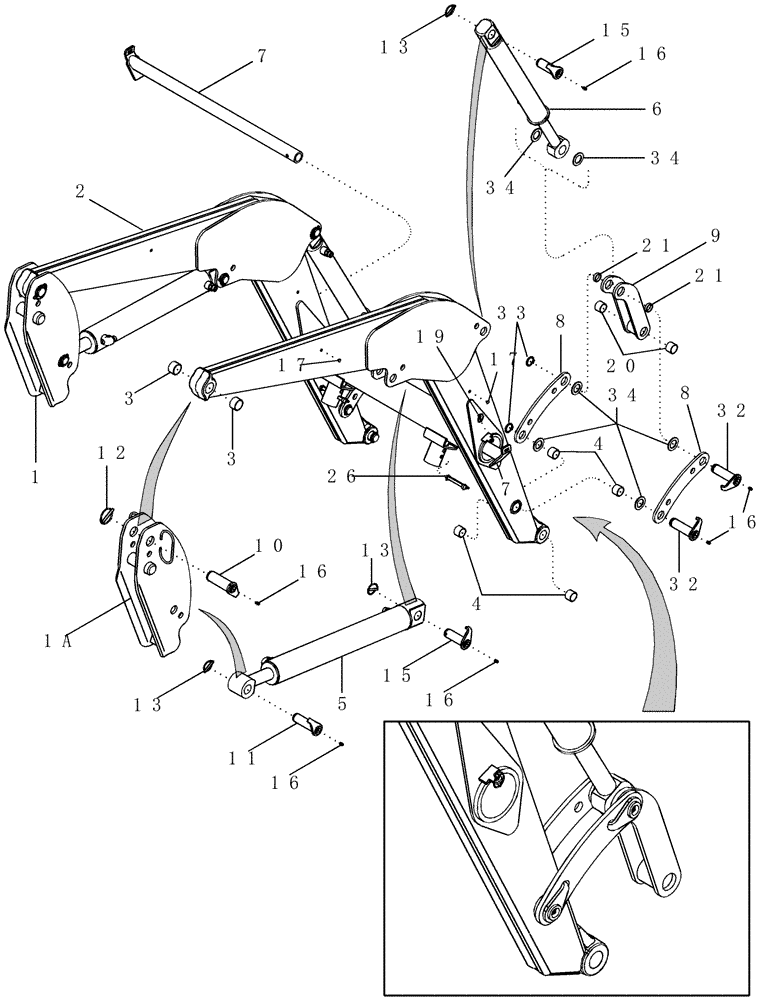

Запчасти Case IH LX232 (09-01) - FRAME - WITHOUT SELF-LEVEL - BSN CAE0021674 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
87438448
TOWER
Left Hand, Inc. 35, 36
1шт.
1a
87438454
TOWER
Right Hand, Inc. 35, 36
1шт.
2
87438440
FRAME ASSY
Loader, Inc. 3, 4, 37
1шт.
3
318872A1
BUSHING
1-1/2 ID x 1 in
4шт.
4
310955A1
BUSHING
1-1/4 ID x 1 in
8шт.
5
87438461
CYLINDER ASSY.
Lift
2шт.
See Figure 08-13
1шт.
6
87438856
CYLINDER ASSY.
Bucket
2шт.
See Figure 08-17
1шт.
87318936R
REMAN-HYD CYLINDER
LX232 FRAME - WITHOUT SELF-LEVEL - BSN CAE0021674, (2/04-), Reman For New P/N 87318936
2шт.
87318936C
CORE-HYD CYLINDER
Return Number
1шт.
7
87444698
TUBE
Park
2шт.
8
86985939
LINK BLOCK
4шт.
9
87434949
LINK ASSY.
2шт.
10
87447567
PIN ASSY.
1-1/2 OD
2шт.
Pin for use with 219-14, Zerk Fitting
1шт.
10
87454475
PIVOT PIN,38.1mm OD x 114mm L
1-1/2 OD
2шт.
Pin for use with 219-87, Zerk Fitting
1шт.
11
87447565
PIN ASSY.
1-1/4 OD
2шт.
Pin for use with 219-14, Zerk Fitting
1шт.
11
87454473
PIVOT PIN,31.75mm OD x 130mm L
1-1/4 OD
2шт.
Pin for use with 219-87, Zerk Fitting
1шт.
12
A61560
LOCK PIN
2шт.
13
A30338
PIN
6шт.
15
87438884
PIN ASSY.
1-1/4 OD
4шт.
Pin for use with 219-14, Zerk Fitting
1шт.
15
87447569
PIVOT PIN,31.75mm OD x 111mm L
1-1/4 OD
4шт.
Pin for use with 219-87, Zerk Fitting
1шт.
16
219-87
LUBE NIPPLE,1/4" - 28 NPTF
12шт.
17
CL5306
PLUG
5шт.
19
302676A1
LINCH PIN
2шт.
20
310955A1
BUSHING
1-1/4 ID x 1 in
2шт.
21
86993051
COLLAR
2шт.
26
86591354
LOCK PIN
2шт.
32
87438886
PIN ASSY.
4шт.
Pin for use with 219-14, Zerk Fitting
1шт.
32
87447573
PIVOT PIN,31.75mm OD x 124.5mm L
4шт.
Pin for use with 219-87, Zerk Fitting
1шт.
33
103-16125
SNAP RING,#125, Ext
4шт.
34
310565A1
WASHER,32mm ID x 51mm OD x 3.5mm Thk
Plastic
12шт.
35
86979962
WARNING DECAL
Safety, Not Illustrated
2шт.
See Figure 09-26
1шт.
36
86979960
DANGER DECAL
Safety, Not Illustrated
2шт.
See Figure 09-26
1шт.
37
86979961
DANGER DECAL
Safety, Not Illustrated
2шт.
See Figure 09-26
1шт.
Выбрано товаров: 47
