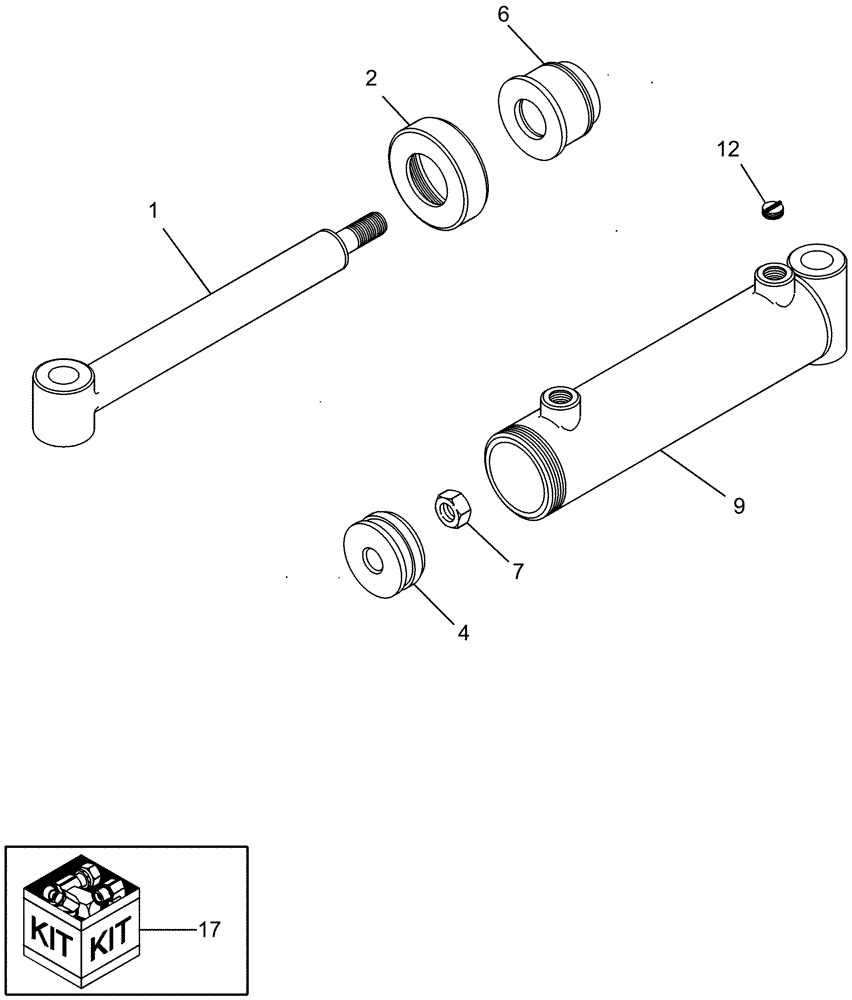

Запчасти Case IH LX232 (08-21) - CYLINDER ASSEMBLY - GRAPPLE - 437085A1 (08) - HYDRAULICS

87453203

CYLINDER,Double Acting, 38.1mm Rod, 222.25mm Stroke

Grapple, Inc. 1 - 12

2шт.

1

NSS

NOT SOLD SEPARAT

Rod Assy, Piston

1шт.

2

NSS

NOT SOLD SEPARAT

Head, Cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

6

NSS

NOT SOLD SEPARAT

Head, Cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

Nut

1шт.

9

NSS

NOT SOLD SEPARAT

Body, Cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

Orifice

1шт.

17

87453549

SEAL KIT

Seals

1шт.
