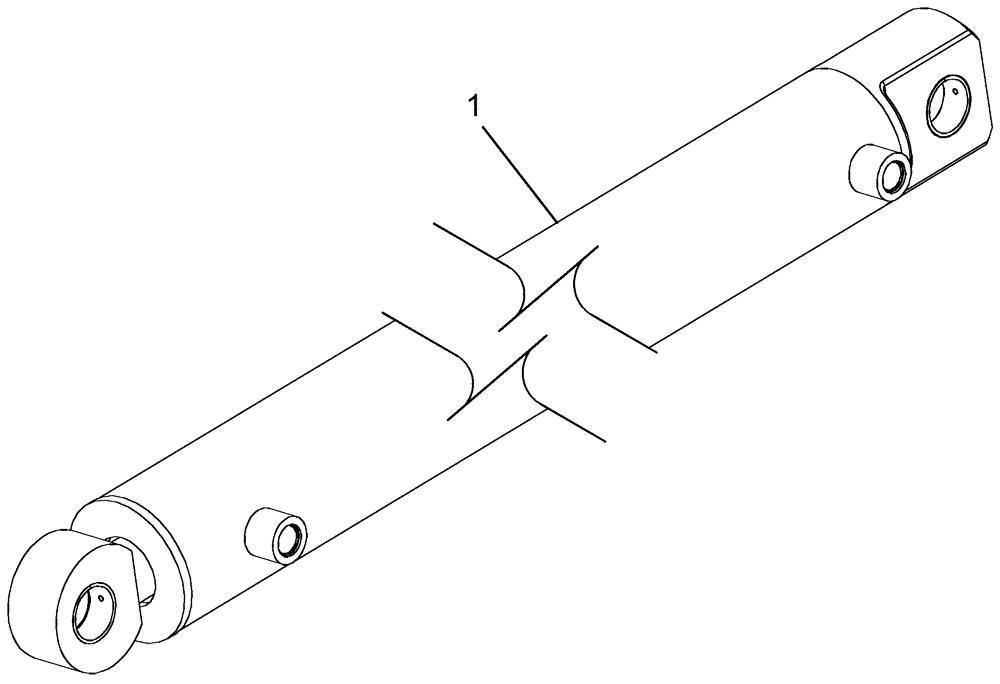

Запчасти Case IH LX232 (08-18) - CYLINDER ASSEMBLY - BUCKET - WITHOUT SELF-LEVEL - ASN CAE0021674 (08) - HYDRAULICS

1

87318936

BUCKET CYLINDER,Double Acting, 38.1mm Rod, 430.28mm Stroke

It Is Recommended That Whenever You Rework A Cylinder, You Should Obtain The Seal Repair Kit 87338297

1шт.

Without Self-Level

1шт.

87318936R

REMAN-HYD CYLINDER

LX232 CYLINDER ASSEMBLY - BUCKET - WITHOUT SELF-LEVEL - ASN CAE0021674, (2/04-)

1шт.

87318936C

CORE-HYD CYLINDER

Return Number

1шт.

87672340

PISTON ROD

Rod Repair

1шт.

Rod Repair Kit Consists Of The New Rod

1шт.

87339297

PISTON

Kit, Repair

1шт.

It Is Recommended That Whenever You Rework A Cylinder, You Should Obtain The Seal Repair Kit 87338297. This Kit Includes New Seals and Wipers for the Entire Cylinder plus the NUT.

1шт.

87339284

NUT

Head Repair

1шт.

Head Repair Kit Consists Of A New Head, Seals And Wipers

1шт.

87339278

PISTON ROD

Kit, Repair

1шт.

87672336

BUSHING

2шт.
