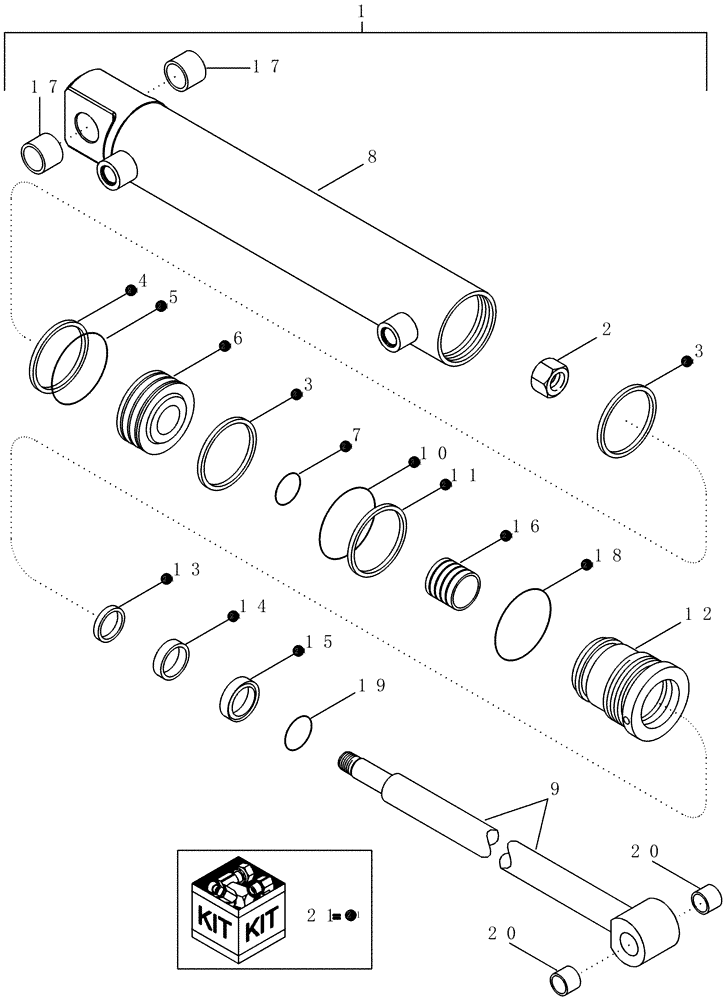

Запчасти Case IH LX232 (08-17) - CYLINDER ASSEMBLY - BUCKET - WITHOUT SELF-LEVEL - BSN CAE0021674 (08) - HYDRAULICS

1

87438856

CYLINDER ASSY.

Bucket, Inc. 2 - 20

1шт.

Without Self-Level

1шт.

87318936R

REMAN-HYD CYLINDER

LX232 CYLINDER ASSEMBLY - BUCKET - WITHOUT SELF-LEVEL - BSN CAE0021674, (2/04-), Reman For New P/N 87318936

1шт.

87318936C

CORE-HYD CYLINDER

Return Number

1шт.

2

H438714

LOCK NUT,7/8" - 14

Nut, Lock

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

NSS

NOT SOLD SEPARAT

Piston

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

NSS

NOT SOLD SEPARAT

Rod

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

12

NSS

NOT SOLD SEPARAT

Head

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, Step

1шт.

14

NSS

NOT SOLD SEPARAT

Seal, U-cup

1шт.

15

NSS

NOT SOLD SEPARAT

Wiper

1шт.

16

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

17

NSS

NOT SOLD SEPARAT

Bushing

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

19

NSS

NOT SOLD SEPARAT

O-Ring, Paint Shield

1шт.

20

NSS

NOT SOLD SEPARAT

Bushing

2шт.

21

87338297

SEAL KIT

Seal, Inc. 3 - 5, 7, 10, 11, 13 -16, 18

1шт.
