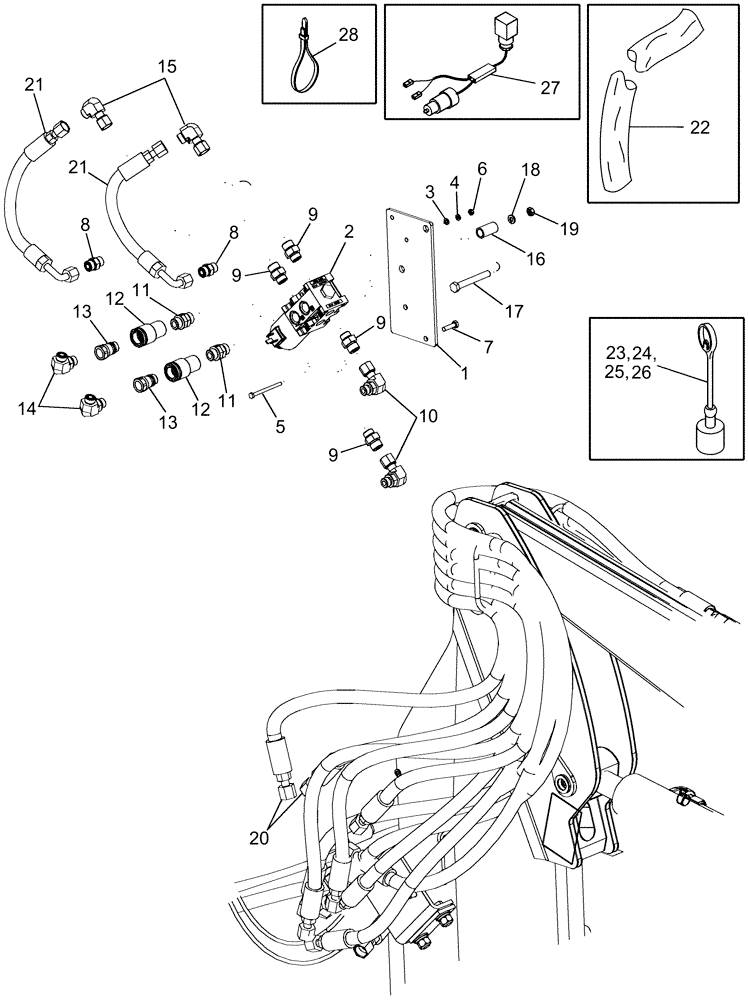

Запчасти Case IH LX232 (08-11) - HYDRAULICS - JX TRACTOR - MID MOUNT (3 FUNCTION STANDARD QUICK CONNECT) (08) - HYDRAULICS

1

87344597

BRACKET

Valve Mount

1шт.

2

87423328

HYDRAULIC VALVE

Diverter

1шт.

See Figure 08-22

1шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

4

892-11006

LOCK WASHER,M6

2шт.

5

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

2шт.

6

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

7

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

8

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

2шт.

9

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

4шт.

10

201-349

90 ELBOW,90 Degree Elbow, 13/16" - 16 Female ORFS x 3/4" - 16 Male ORB

2шт.

11

87412807

FITTING

2шт.

12

399786A1

COUPLING

3шт.

13

87404022

QUICK MALE COUPLING

2шт.

14

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

2шт.

15

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

2шт.

16

87344747

BRACKET

Spacer

1шт.

17

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

1шт.

18

892-11012

LOCK WASHER,M12

1шт.

19

829-1412

NUT,M12, Cl 10.9

1шт.

20

87344046

HYDRAULIC HOSE,12.70 mm ID x 1701.80 mm

Diverter Valve to Boom

2шт.

21

87344125

HYDRAULIC HOSE,12.70 mm ID x 368.30 mm

Diverter Valve to Loader

2шт.

22

87409366

HOSE PROTECTION

2 Hose 78 in

1шт.

23

333720A1

CAP

Female, Black

1шт.

24

333718A1

CAP

Female, Orange

1шт.

25

327230A1

CAP

Male, Black

1шт.

26

327228A1

CAP

Male, Orange

1шт.

27

87412484

HARNESS

Diverter Valve

1шт.

28

1985078C2

SET OF PARTS

Color Tie Straps

1шт.
