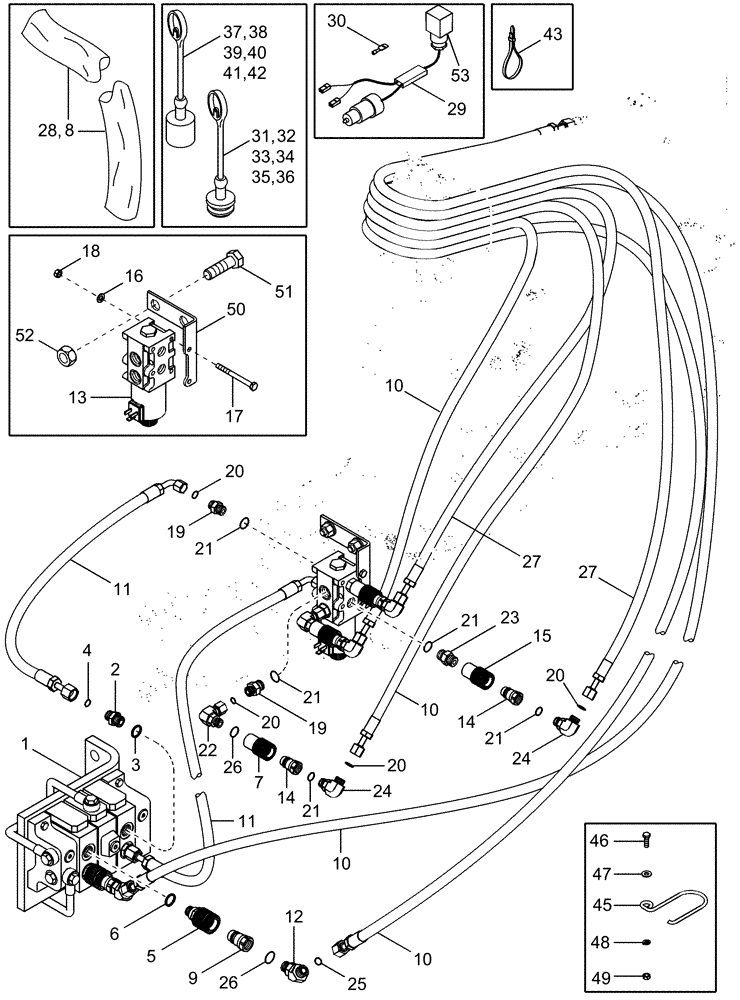

Запчасти Case IH LX232 (08-08) - HYDRAULICS - JX1U TRACTOR - MID MOUNT (3 FUNCTION STANDARD QUICK CONNECT) (08) - HYDRAULICS

1

REF

INSTRUCTION

Loader Valve

1шт.

See JX1U Tractor Catalog

1шт.

2

87403694

FITTING

Din Male, Inc. 3, 4

2шт.

3

87406796

SEAL

M18 x 1.5

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

87438385

COUPLING

FEMALE, 3/4 inch with M18 DIN End, Inc. 6

2шт.

6

87406796

SEAL

M18 x 1.5

1шт.

7

87404023

COUPLING, QUICK, FEM

2шт.

8

87414489

SLEEVE

2-Hose, 78 inch

1шт.

9

87404022

QUICK MALE COUPLING

2шт.

10

87451411

HOSE ASSY.

2110 mm (87in), Loader, Serial Range: Valve-Boom

4шт.

11

87452057

HOSE

305 mm (12 in), Loader Valve to Diverter Valve

2шт.

12

201-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes Ref. 25, 26

1шт.

13

87423328

HYDRAULIC VALVE

Diverter

1шт.

See Figure 08-24

1шт.

14

87404022

QUICK MALE COUPLING

4шт.

15

399786A1

COUPLING

FEMALE

2шт.

16

892-11008

LOCK WASHER,8mm ID

2шт.

17

814-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

19

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes 20, 21

8шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

201-349

90 ELBOW,90 Degree Elbow, 13/16" - 16 Female ORFS x 3/4" - 16 Male ORB

Inc. 20, 26

2шт.

23

87412807

FITTING

Inc. 21

2шт.

24

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. 25, 26

4шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

87412138

HOSE,12.70 mm ID x 55.00 mm, SAE 100R17 CLASS 25 TYPE 1

Diverter Valve to Boom

2шт.

28

87405292

SLEEVE

4-Hose, 66 inch

1шт.

29

87345306

WIRE HARNESS

1шт.

30

87420856

CONNECTOR,ELECTRIC

2шт.

31

327227A1

CAP

Male, Blue

1шт.

32

327228A1

CAP

Male, Orange

1шт.

33

327229A1

CAP

Male, Yellow

1шт.

34

327230A1

CAP

Male. Black

1шт.

35

327231A1

CAP

Male, Red

1шт.

36

327232A1

CAP

Male, Green

1шт.

37

333717A1

CAP

Female, Blue

1шт.

38

333718A1

CAP

Female, Orange

1шт.

39

333719A1

CAP

Female, Yellow

1шт.

40

333720A1

CAP

Female, Black

1шт.

41

333721A1

CAP

Female, Red

1шт.

42

333722A1

CAP

Female, Green

1шт.

43

1985078C2

SET OF PARTS

Color Tie Straps

1шт.

44

87443667

MANIPULATOR

Joystick, Top Half (Not Shown)

1шт.

45

87443180

RETAINER

Hose

1шт.

46

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

47

495-11053

WASHER,1/2", SAE

1шт.

48

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

49

425-108

NUT,1/2" - 13, Gr 5

1шт.

50

87452059

BRACKET

Mounting, Diverter Valve

1шт.

51

814-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 8.8

Diverter Valve Bracket

2шт.

52

829-1420

NUT,M20, Cl 10

Diverter Valve Bracket

2шт.

53

293256A2

RELAY,12V

1шт.
