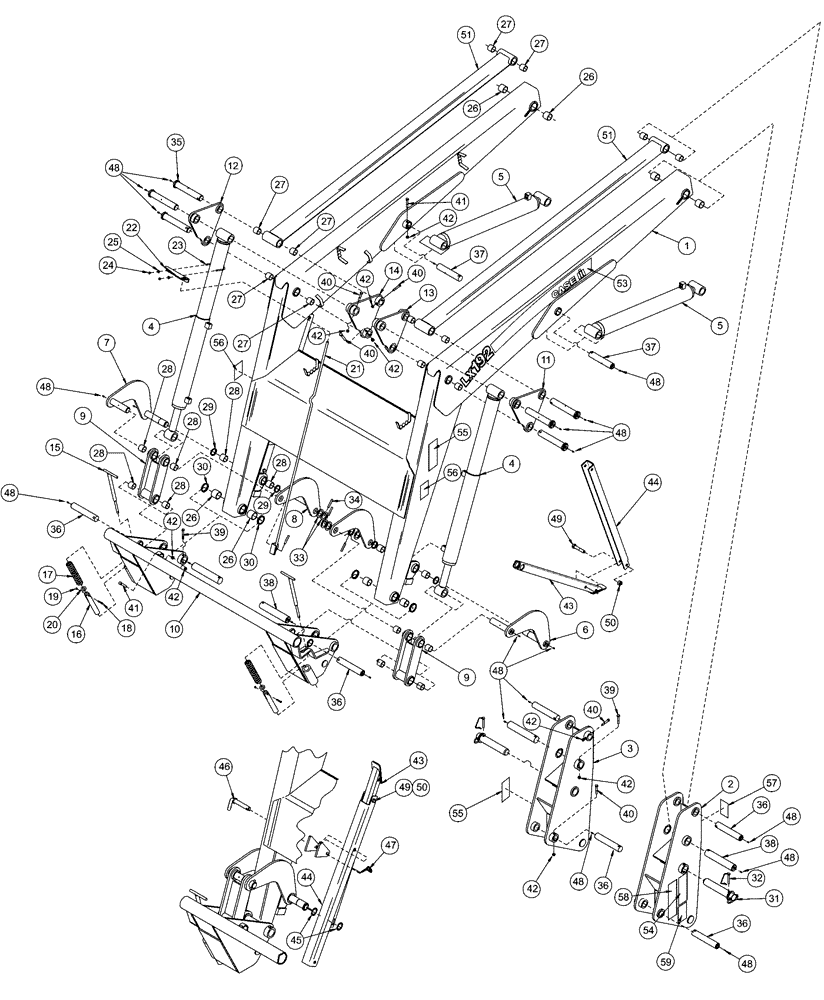

Запчасти Case IH LX192 (82.100.AF) - LOADER ARM (82) - FRONT LOADER & BUCKET

1

CSE50856

BOOM

Inc. Decals

1шт.

2

CSE50857

FRAME ASSY

Left Hand Side, Inc. Decals

1шт.

3

CSE50858

FRAME ASSY

Right Hand Side, Inc. Decals

1шт.

4

CSE50719

BUCKET CYLINDER

2шт.

5

NSS

NOT SOLD SEPARAT

2шт.

6

SML507662

LINK ASSY.

Left Hand

1шт.

7

SML507661

LINK ASSY.

Right Hand

1шт.

8

SML50765

LINK

4-Bar

2шт.

9

SML50770

LINK ASSY.

4-Bar

2шт.

10

SML50709

BRACKET, SUPPORTING

Quick Attach

1шт.

11

CSE507771

PIVOT ASSY.

Outer, Left Hand

1шт.

12

CSE507772

PIVOT ASSY.

Outer, Right Hand

1шт.

13

CSE507711

PIVOT ASSY.

Inner, Left Hand

1шт.

14

CSE507712

PIVOT ASSY.

Inner, Right Hand

1шт.

15

SML41953

HANDLE

2шт.

16

86582466

PIN

1-1/4 x 9-1/4

2шт.

17

86582528

SPRING

2шт.

18

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

19

231-4144

NUT,1/4"-20, GB

2шт.

20

495-21069

WASHER,5/8"

Flat, 5/8

2шт.

21

SML50781

ROD

Bucket Level Indicator

1шт.

22

86582506

BRACKET

1шт.

23

86582507

U-BOLT

1шт.

24

231-4145

NUT,5/16"-18, GB

2шт.

25

495-11034

WASHER,5/16", SAE

Flat

2шт.

26

SML479437

BUSHING

1-3/4 x 2

8шт.

27

SML479436

BUSHING

1-1/2 x 2

12шт.

28

NSS

NOT SOLD SEPARAT

1-1/2 x 1-1/2

12шт.

29

SML602220

SEAL

1-1/2 ID

4шт.

30

SML602221

SEAL

1-3/4 ID

4шт.

31

SML50820

LOCK PIN

2шт.

32

86581658

PIN

Linch

2шт.

33

SML425774

BUSHING

6шт.

34

280239

LOCK PIN,9.53mm OD x 57.15mm L, Slotted

3/8" x 2 1/4", Slotted

4шт.

35

SML50786

HEADLESS PIN

6шт.

36

86582517

PIN

1-1/2 x 8-1/2

6шт.

37

86582519

PIN

1-1/2 x 7-3/4

2шт.

38

SML50787

PIN

1-3/4 x 8-15/16

4шт.

39

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

40

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

10шт.

41

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

42

231-4146

NUT,3/8"-16, GB

18шт.

43

CSE50776

TUBE ASSY.

Parking Stand

2шт.

44

CSE50780

CHANNEL

Parking Stand

2шт.

45

103-11150

SNAP RING,#150, Ext

4шт.

46

86582522

PIN

2шт.

47

302676A1

LINCH PIN

2шт.

48

NSS

NOT SOLD SEPARAT

Grease Fitting, 1/8

22шт.

Obtain Locally

1шт.

49

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4

2шт.

50

231-41410

NUT,5/8"-11, GB

2шт.

51

CSE50773

TUBE ASSY.

2шт.

52

NSS

NOT SOLD SEPARAT

LX192, Right Hand

1шт.

53

NSS

NOT SOLD SEPARAT

LX192, Left Hand

1шт.

54

86581703

DECAL

Warning

1шт.

55

NSS

NOT SOLD SEPARAT

Warning

2шт.

56

86581705

DECAL

Danger

2шт.

57

86583639

DECAL

Danger

1шт.

58

SML46775

DECAL

Warning

1шт.

59

SML48921

DECAL

Danger

1шт.
