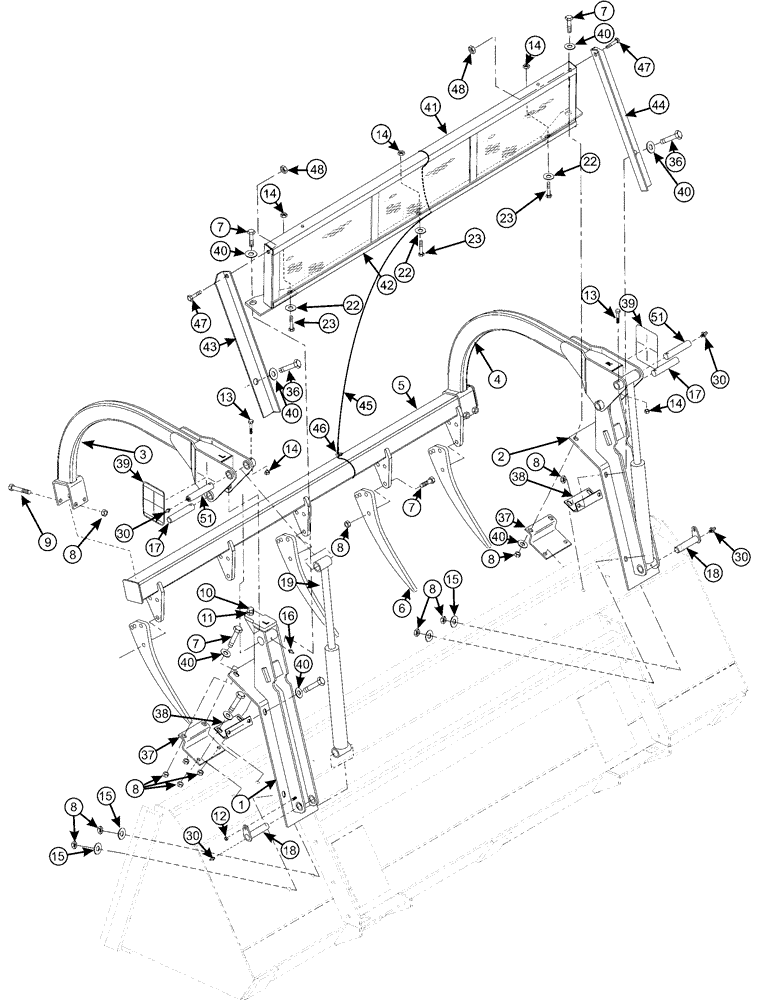

Запчасти Case IH LX192 (88.058.01[01]) - GRAPPLE FORK WITH SPILL GUARD (88) - ACCESSORIES

1

SML510181

SUPPORT

Grapple Fork, Left Hand

1шт.

2

SML510182

SUPPORT

Grapple Fork, Right Hand

1шт.

3

86024068

FRAME

Grapple Fork, Left Hand, Inc. Decal

1шт.

4

86024069

FRAME

Grapple Fork, Right Hand, Inc. Decal

1шт.

5

86024070

TUBE,96" L

Grapple Fork

1шт.

6

86024071

FORK

Grapple Fork

5шт.

7

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

14шт.

8

231-41412

NUT,3/4"-10, GB

30шт.

9

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

3/4 x 5-1/2

4шт.

10

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

2шт.

11

425-1412

JAM NUT,Jam, 3/4"-10, G5

3/4

2шт.

12

231-4148

NUT,1/2"-13, GB

1/2

2шт.

13

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

14

231-4146

NUT,3/8"-16, GB

7шт.

15

95-21081

WASHER,3/4"

4шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

17

86024072

PIN,31.75mm OD x 165.1mm L

1-1/4 x 6-1/2

2шт.

18

SML51020

PIN

2шт.

19

86583616

CYLINDER

2шт.

22

495-21044

WASHER,3/8"

3шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

36

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

12шт.

37

SML49669

BRACKET

Lower

2шт.

38

SML49670

BRACKET

Upper

2шт.

39

86583638

DECAL

Warning

2шт.

40

495-21081

WASHER,3/4"

22шт.

41

SML47504

GUARD

Spill Guard

1шт.

42

SML49684

ANGLE

Spill Guard

1шт.

43

SML496831

BRACE

Spill Guard, Left Hand

1шт.

44

SML496832

BRACE

Spill Guard, Right Hand

1шт.

45

86024779

RETAINING WIRE

1шт.

46

86024780

CLAMP

3/16

2шт.

47

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

48

231-4148

NUT,1/2"-13, GB

1/2

2шт.

51

86581631

PIN

1-1/4 x 6-5/8

2шт.
