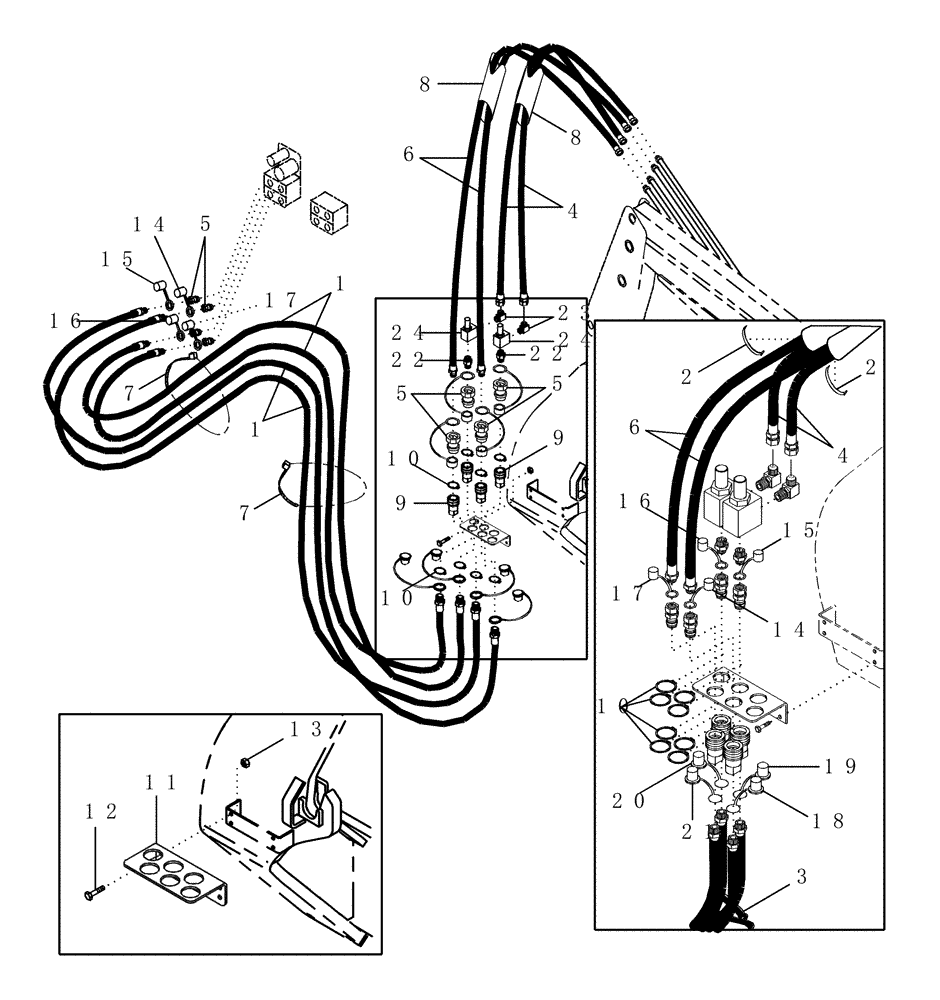

Запчасти Case IH LX192 (88.035.02) - HYDRAULICS - MECHANICAL SELF LEVELING (MSL) HOSE KIT (88) - ACCESSORIES

1

SML483123

HOSE,170.00"

4шт.

2

86582400

STRAP

Plastic, 3/16 x 11

4шт.

3

86581718

SECURING STRAP

Tarp

2шт.

4

SML513531

HOSE,0.50" ID x 68.00"

2шт.

5

NSS

NOT SOLD SEPARAT

Male

8шт.

6

SML485501

HOSE,72.00"

4шт.

7

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP 20 inch

2шт.

8

SML3485340

SLEEVE

2 x 72 inch

2шт.

9

NSS

NOT SOLD SEPARAT

4шт.

10

103-11150

SNAP RING,#150, Ext

8шт.

11

SML51165

BRACKET

1шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

14

333721A1

CAP

Dust, Red

1шт.

15

333717A1

CAP

Dust, Blue

1шт.

16

333719A1

CAP

Dust, Yellow

1шт.

17

333722A1

CAP

Dust, Green

1шт.

18

327231A1

CAP

Dust, Red

1шт.

19

327227A1

CAP

Dust, Blue

1шт.

20

327229A1

CAP

Dust, Yellow

1шт.

21

327232A1

CAP

Dust, Green

1шт.

22

SML484151

FITTING

2шт.

23

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or

2шт.

24

NSS

NOT SOLD SEPARAT

Relief With Cartridge

2шт.

See Figure 08 -03

1шт.
