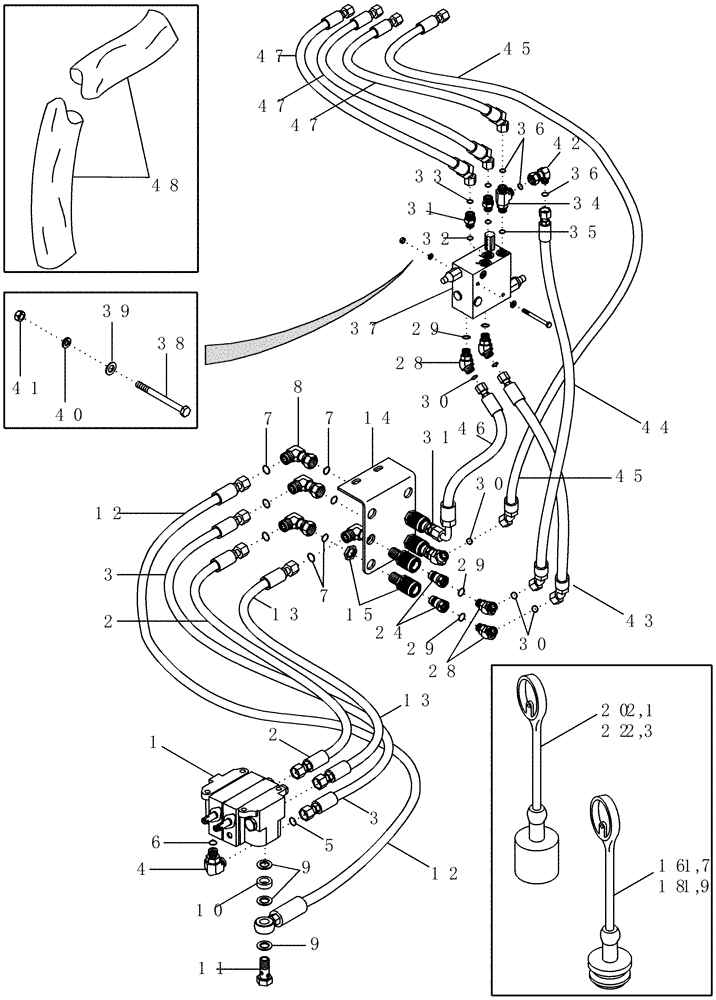

Запчасти Case IH LX172 (08-05) - HYDRAULICS - 2 FUNCTION STANDARD QUICK COUPLER WITH HYDRAULIC SELF-LEVEL (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Loader, 2 Function

1шт.

2

448401A1

HYDRAULIC HOSE,12.70 mm ID x 660.00 mm, SAE 100R17

Valve To Boom Cylinder Rod End

1шт.

3

448402A1

HYDRAULIC HOSE,12.70 mm ID x 851.00 mm, SAE 100R17 Class 25

Valve To Boom Cylinder Head End

1шт.

4

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 5, 6

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.

8

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl. 7

4шт.

9

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

3шт.

10

82020496

SPACER

1шт.

11

86583640

BOLT

M18 x 1.5

1шт.

12

448403A1

HYDRAULIC HOSE,12.7mm ID x 914mm L, SAE 100R17

Valve To Bucket Cylinder Head End

1шт.

13

448401A1

HYDRAULIC HOSE,12.70 mm ID x 660.00 mm, SAE 100R17

Valve To Bucket Cylinder Rod End

1шт.

14

395326A1

BRACKET

1шт.

15

399490A1

COUPLING

Female, Inc. 7

4шт.

16

327232A1

CAP

Male, Green

1шт.

17

327227A1

CAP

Male, Blue

1шт.

18

327229A1

CAP

Male, Yellow

1шт.

19

327231A1

CAP

Male, Red

1шт.

20

333722A1

CAP

Female, Green

1шт.

21

333717A1

CAP

Female, Blue

1шт.

22

333719A1

CAP

Female, Yellow

1шт.

23

333721A1

CAP

Female, Red

1шт.

24

399491A1

QUICK MALE COUPLING

Male

4шт.

28

201-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

45, 5/8 or x 5/8 fc sl, Inc. 29, 30

5шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5шт.

30

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

31

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 32, 33

3шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3шт.

33

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

34

201-420

TEE,1"-14 x 7/8"-14 Run, ORFS

1 fc sl x 7/8 or x 7/8 or, Inc. 36, 37

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

36

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

37

86992550

MANIFOLD VALVE

1шт.

38

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8 x 4-1/2

2шт.

39

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

40

492-11038

LOCK WASHER,3/8"

2шт.

41

231-4146

NUT,3/8"-16, GB

2шт.

42

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

1шт.

43

448384A1

HYDRAULIC HOSE,15.80 mm ID x 1105.00 mm, SAE 100R17 Class 25

1шт.

44

448384A1

HYDRAULIC HOSE,15.80 mm ID x 1105.00 mm, SAE 100R17 Class 25

1шт.

45

448386A1

HYDRAULIC HOSE,15.80 mm ID x 2629.00 mm, SAE 100R17 Class 25

1шт.

46

448387A1

HYDRAULIC HOSE,15.80 mm ID x 921.00 mm, SAE 100R17

1шт.

47

448383A1

HYDRAULIC HOSE,15.80 mm ID x 1245.00 mm, SAE 100R17 Class 25

3шт.

48

87409365

HOSE PROTECTION

Sleeve, Hose, Upper, 30 in

1шт.

48

87409367

HOSE PROTECTION

Sleeve, Hose, Lower, 18 in

1шт.
