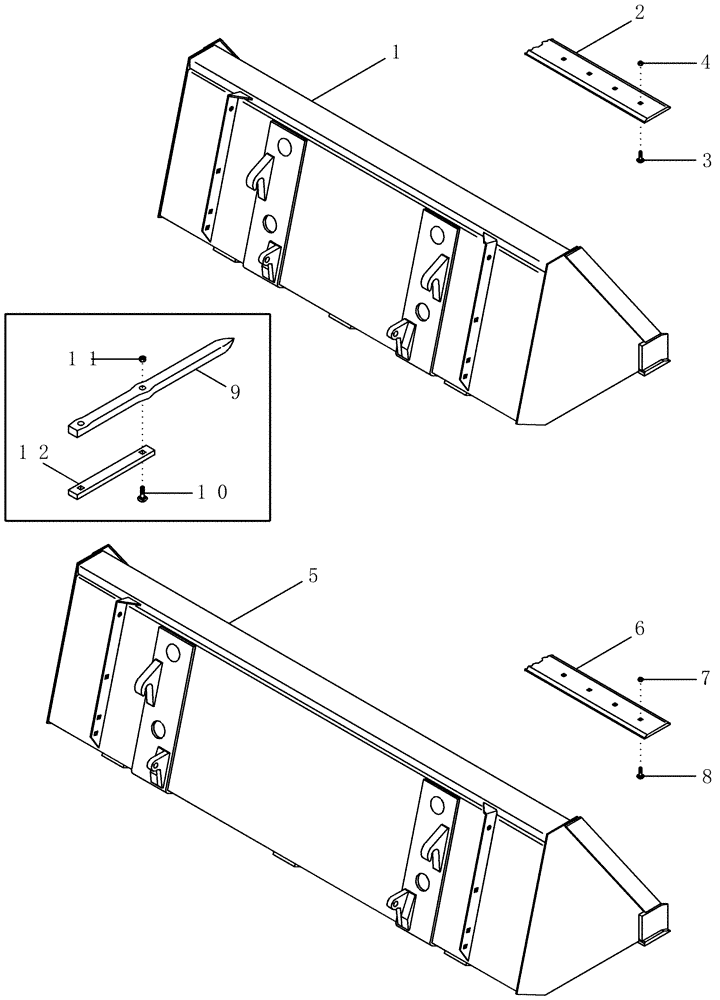

Запчасти Case IH LX172 (09-10) - MATERIAL BUCKET - HIGH PERFORMANCE (09) - CHASSIS/ATTACHMENTS

1

404295A1

BUCKET

BUCKET, 84 in, Quick Attach Type

1шт.

Order 715725036 From Machinery Price List

1шт.

2

323003A1

EDGE, CUTTING

84 in.

1шт.

3

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

3/4 x 2-1/2; Gr 8

11шт.

84 in. Bucket

1шт.

4

429-1012

NUT,3/4"-10, G8

11шт.

84 in. Bucket

1шт.

5

404297A1

BUCKET

BUCKET, 96 in, Quick Attach Type

1шт.

Order 715747016 From Machinery Price List

1шт.

5

REF

INSTRUCTION

BUCKET, 96 in High Volume, Quick Attach Type

1шт.

Order 716973006 From Machinery Price List

1шт.

6

323004A1

EDGE, CUTTING

96 in.

1шт.

7

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

3/4 x 2-1/2; Gr 8

12шт.

96 in Bucket

1шт.

8

429-1012

NUT,3/4"-10, G8

12шт.

96 in Bucket

1шт.

9

851818C1

TINE

10шт.

10

419-2840

PLOW BOLT,#3, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2

20шт.

11

425-108

NUT,1/2" - 13, Gr 5

20шт.

12

91331C1

BAR

10шт.
