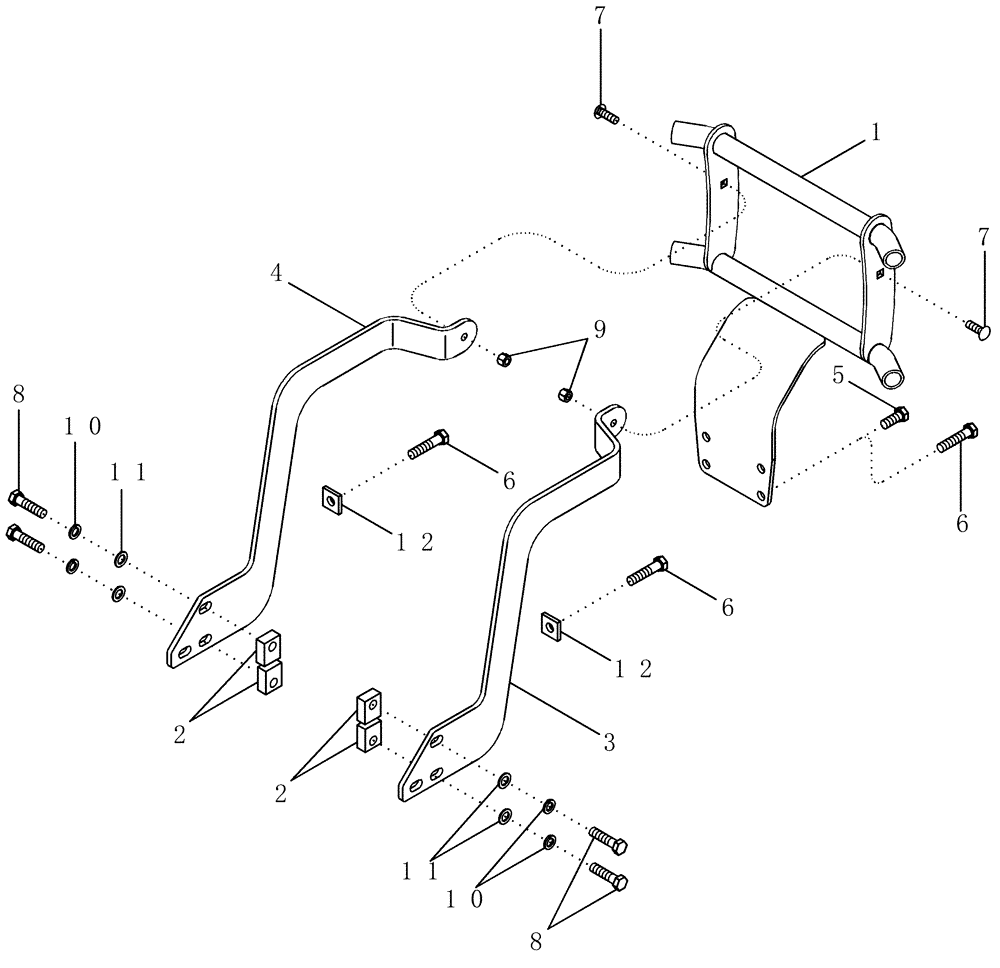

Запчасти Case IH LX172 (09-05) - PROTECTIVE ASSEMBLY - GRILLE (09) - CHASSIS/ATTACHMENTS

1

87410112

GUARD ASSY.

1шт.

2

87410118

SPACER

4шт.

Used When Loader Side Frames Are Removed

1шт.

3

87410115

SUPPORT

1шт.

4

87410114

SUPPORT

1шт.

5

614-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

4шт.

6

614-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 8.8, Full Thd

M20 x 90 mm

6шт.

7

434-1032

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 2", Gr 5

5/8 x 2

2шт.

8

614-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 8.8, Full Thd

M20 x 80 mm

4шт.

9

231-41410

NUT,5/8"-11, GB

2шт.

10

892-11020

LOCK WASHER,M20

8шт.

11

895-11020

WASHER,M20 x 37 x 3

22 x 37 x 3 mm

4шт.

12

86582544

SPACER

2шт.
