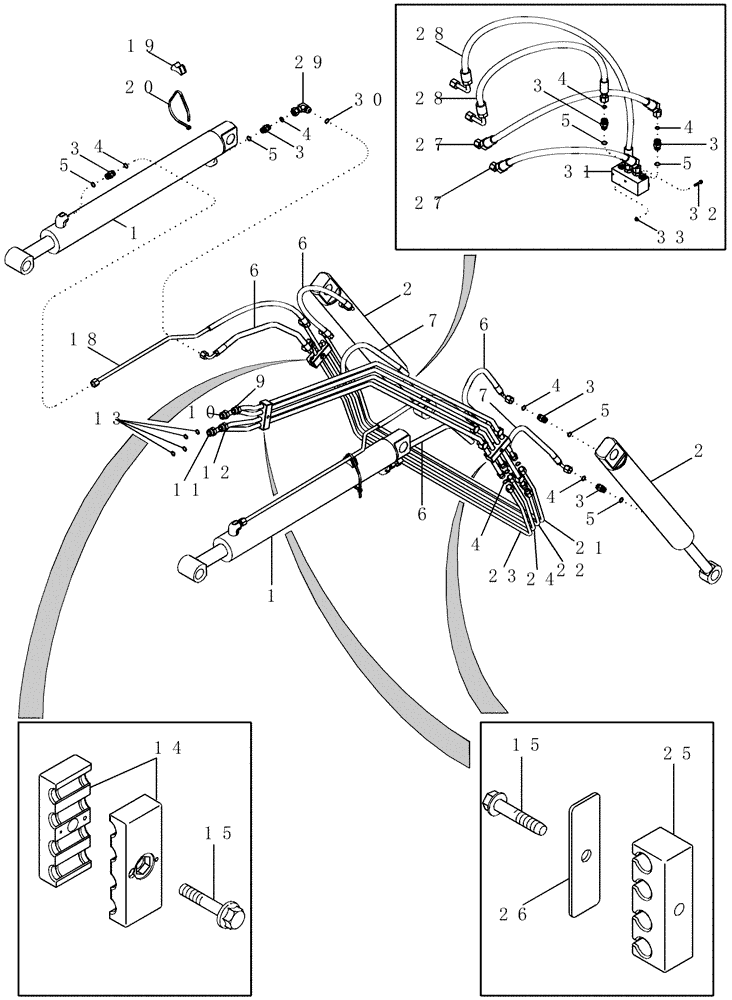

Запчасти Case IH LX172 (08-01) - HYDRAULICS - LOADER FRAME (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
448119A1
CYLINDER ASSY.,Double Acting, 50mm Rod, 756.41mm Stroke
Lift
2шт.
With Hydraulic Self-Level
1шт.
1
87409547
CYLINDER ASSY.
Lift
2шт.
With Mechanical Self-Level
1шт.
2
448121A1
CYLINDER ASSY.
Bucket
2шт.
With Hydraulic Self-Level
1шт.
2
451458A1
CYLINDER ASSY.,Double Acting, 44.45mm Rod, 514.35mm Stroke
Bucket
2шт.
With Mechanical Self-Level
1шт.
3
201-112
HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB
Includes 4, 5
12шт.
5
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
12шт.
6
345381A1
HOSE,9.53mm ID x 609.6mm L, SAE 100R17
609 mm (24 in)
4шт.
7
87405450
HOSE ASSY.
711 mm (28 in)
2шт.
9
86994398
HYD TUBE,0.625" OD
Bucket Cylinder, Upper, Head End
1шт.
10
86994400
HYD TUBE,0.625" OD
Bucket Cylinder, Upper, Rod End
1шт.
11
86994404
HYD TUBE,0.625" OD
Lift Cylinder, Upper, Head End
1шт.
12
86994402
HYD TUBE,0.625" OD
Lift Cylinder, Upper, Rod End
1шт.
13
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
4шт.
14
324067A1
BRACKET
2шт.
15
281-54932
SCREW,Hex Wshr Hd, 3/8" - 16 x 2"
3/8 x 2
3шт.
18
324949A1
TUBE
Lift Cylinder
2шт.
19
D38648
BLOCK
2шт.
20
386170C1
CABLE TIE,.30" x 27 1/2"
CABLE STRAP
2шт.
21
86994399
HYD TUBE,0.50" OD
Bucket Cylinder, Lower, Head End
1шт.
22
86994401
HYD TUBE,0.50" OD
Bucket Cylinder, Lower, Rod End
1шт.
23
86994405
HYD TUBE,0.50" OD
Lift Cylinder, Lower, Head End
1шт.
24
86994403
HYD TUBE,0.50" OD
Lift Cylinder, Lower, Rod End
1шт.
25
86994418
CLAMP
2шт.
26
86994420
LOCKING PLATE
2шт.
27
86983671
HOSE ASSY.
Bucket Cylinder Head End To Relief Valve
2шт.
28
86983672
HOSE ASSY.
Bucket Cylinder Rod End To Relief Valve
2шт.
29
201-320
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS
Elbow, 90, Inc. 30
2шт.
31
87431648
HYDRAULIC VALVE
1шт.
32
413-452
BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5
2шт.
33
231-4144
NUT,1/4"-20, GB
2шт.
Выбрано товаров: 36
