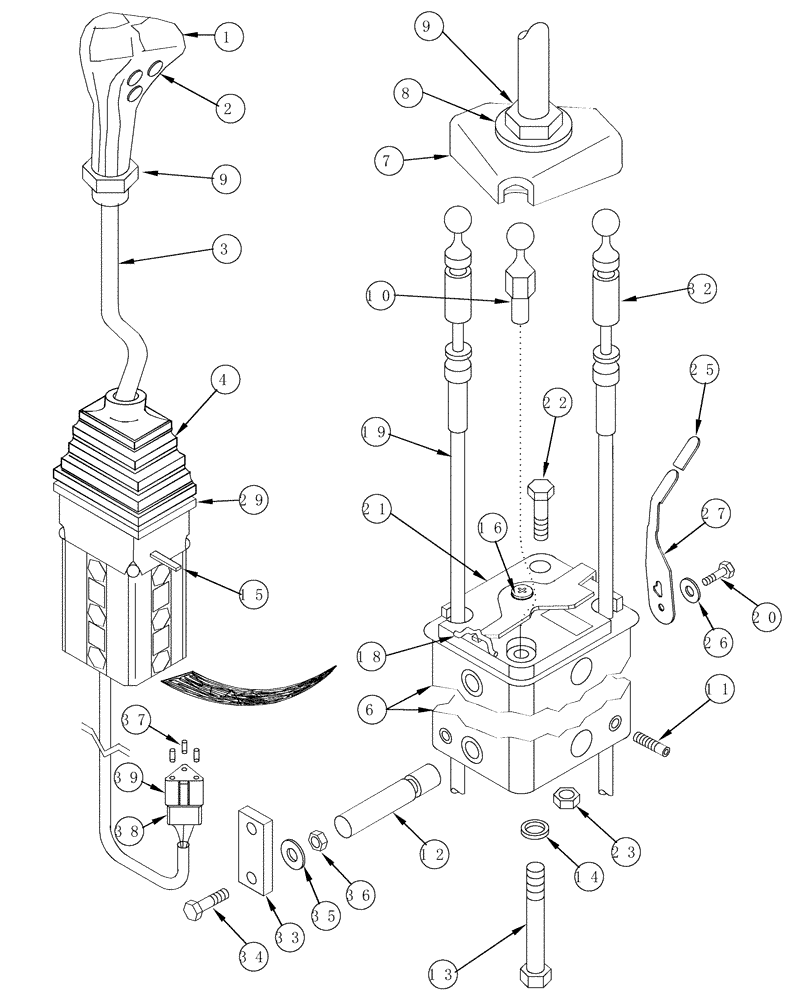

Запчасти Case IH LX172 (08-25) - CONTROL ASSEMBLY - 3 FUNCTION - MX100-MX170 POWER SHIFT TRANSMISSION (08) - HYDRAULICS

254288A3

CONTROL

Consists Of 1-39

1шт.

1

246988A2

SHIFTING UNIT

Includes 2

1шт.

2

253280A1

PLASTIC PLUG

3шт.

3

247712A2

CONTROL LEVER

1шт.

4

1533271C1

BOOT

1шт.

6

247713A2

VALVE, CONTROL

1шт.

7

253276A1

COUPLING FLANGE

1шт.

8

895-15014

WASHER,15.5mm ID x 30mm OD x 2.5mm Thk

15,5 x 30 x 2,5 mm

1шт.

9

829-23414

THIN NUT,Thin, M14 x 1.5, Cl 05

2шт.

10

327141A1

BALL JOINT

1шт.

11

738-3422

PIN,M4 x 22, Coiled

3шт.

12

253279A1

SPACER

2шт.

13

864-6080

HEX SOC SCREW,M6 x 80mm, Cl 8.8

1шт.

14

95-31056

WASHER,1/2" x 1 1/4" x .109"

1шт.

15

315179A1

LATCH

1шт.

16

301-1468

DRIVE SCREW,Drive, #10 x 1/2"

1шт.

18

258464A1

SPRING LOCK

1шт.

19

253271A2

CABLE SHEATH

2шт.

20

301-1468

DRIVE SCREW,Drive, #10 x 1/2"

1шт.

21

327140A1

PLATE

1шт.

22

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

23

832-10406

NUT,M6 x 1, Cl 8

1шт.

24

327142A1

BUSHING

Not Illustrated, Used With 20, 26

1шт.

25

253273A1

GRIP

1шт.

26

495-81104

WASHER,.266" x 1 1/4" x .069"

.266 x 1.250

1шт.

27

307111A1

CONTROL LEVER

1шт.

29

241536A1

SUPPORT

1шт.

33

247716A2

SPACER

1шт.

34

814-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

2шт.

35

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

36

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

37

225053C1

TERMINAL CONNECTOR,Female, 0.8 - 1 mm2

3шт.

38

225294C1

ELEC CONNECTOR,Male, 3 Pin

1шт.

39

225296C1

ELEC CONNECTOR

1шт.
