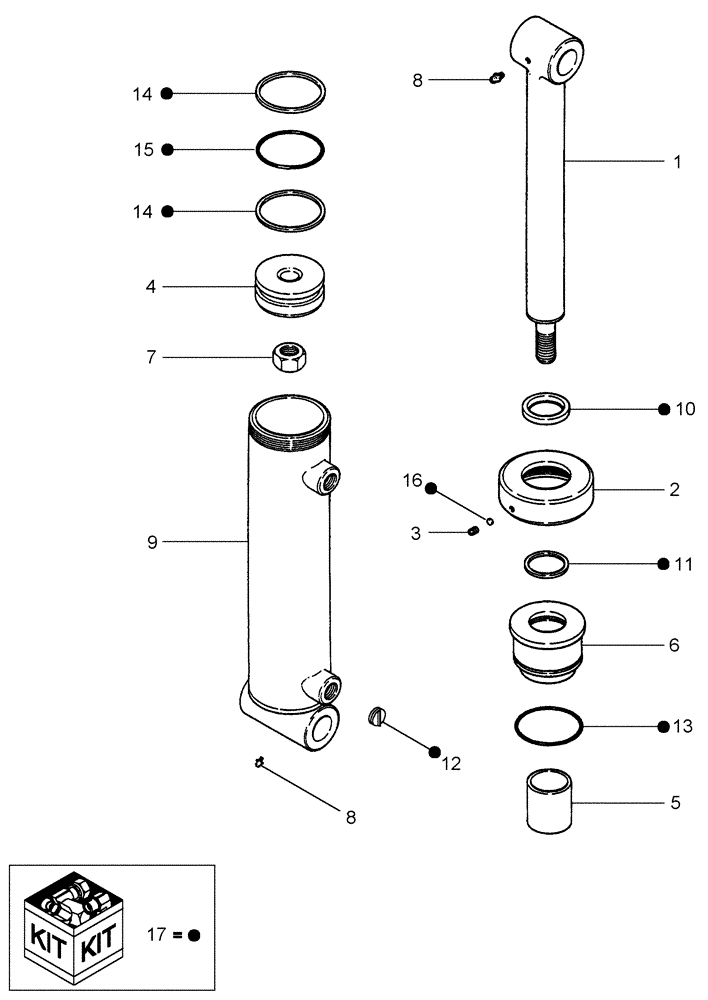

Запчасти Case IH LX172 (08-17) - CYLINDER ASSEMBLY - GRAPPLE - 437085A1 (08) - HYDRAULICS

437085A1

CYLINDER

64 (2-1/2) ID x 222 mm (8-3/4 inch) Stroke, Grapple, Inc. 1 - 7, 9 - 16

2шт.

1

220714A1

ROD ASSY.

Piston

1шт.

2

T57599

CAP ASSY.

Head, Cylinder

1шт.

3

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 NC x 1/4

1шт.

4

B17273

PISTON

1шт.

5

T58030

SPACER

Piston

1шт.

6

T50088

HEAD

Cylinder

1шт.

7

425-1112

NUT,3/4"-16, G5

3/4

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

9

NSS

NOT SOLD SEPARAT

Body, Cylinder

1шт.

10

A41785

WIPER SEAL

1шт.

11

432001A1

SEAL

U-Cup

1шт.

12

220715A1

ORIFICE

1шт.

13

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

14

B17297

SPECIAL WASHER

Backup

2шт.

15

238-5330

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

16

T55068

PLUG

1шт.

17

437087A1

SEAL KIT

Kit, Seal, Inc. 10 - 16

1шт.
