(08-16) - CYLINDER ASSEMBLY - BUCKET - WITH MECHANICAL SELF-LEVEL - 451458A1

Запчасти Case IH LX172 (08-16) - CYLINDER ASSEMBLY - BUCKET - WITH MECHANICAL SELF-LEVEL - 451458A1 (08) - HYDRAULICS

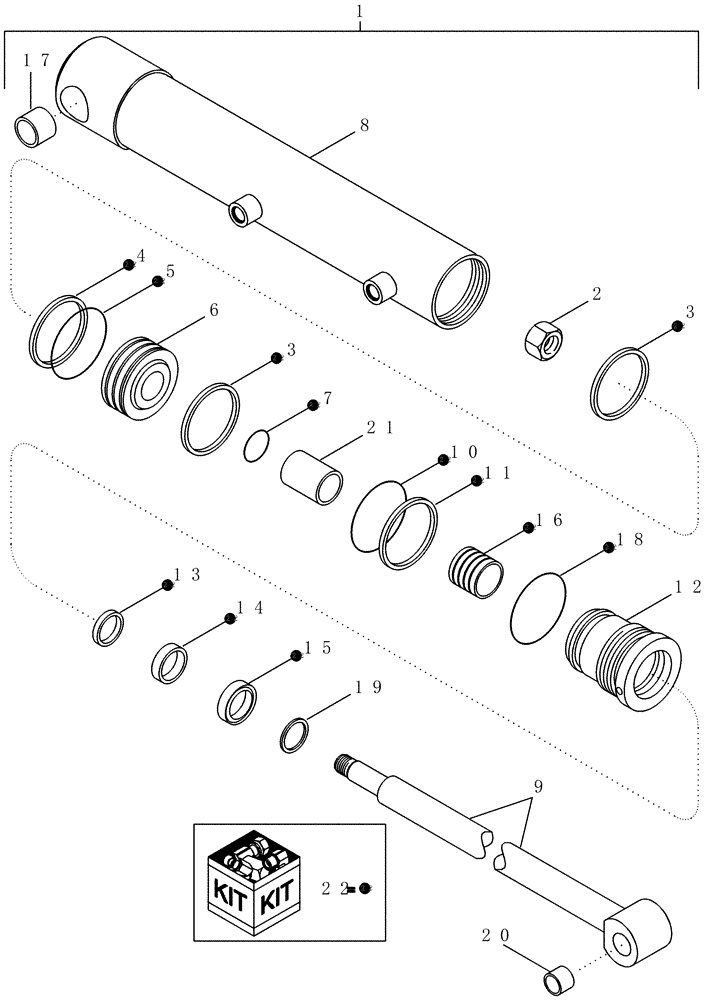

Схема запчастей Case IH LX172 - (08-16) - CYLINDER ASSEMBLY - BUCKET - WITH MECHANICAL SELF-LEVEL - 451458A1 (08) - HYDRAULICS
1
22
17
22
8
7
18
15
22
12
22
10
19
9
22
22
6
21
3
22
22
14
22
13
22
20
16
11
2
5
22
22
3
22
4
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

451458A1

CYLINDER ASSY.,Double Acting, 44.45mm Rod, 514.35mm Stroke

Bucket

1шт.

With Mechanical Self-Level

1шт.

2

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

348471A1

PISTON

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

87405755

PISTON ROD

Inc. 20

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

12

360028A1

HEAD ASSY.

1шт.

13

NSS

NOT SOLD SEPARAT

Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Wiper

1шт.

16

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

17

318872A1

BUSHING

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

19

NSS

NOT SOLD SEPARAT

Shield, Paint

1шт.

20

324206A1

BUSHING

2шт.

21

NSS

NOT SOLD SEPARAT

Spacer

1шт.

22

87422757

SEAL KIT

Seal, Inc. 3 - 5, 7, 10, 11, 13 - 16, 18

1шт.
