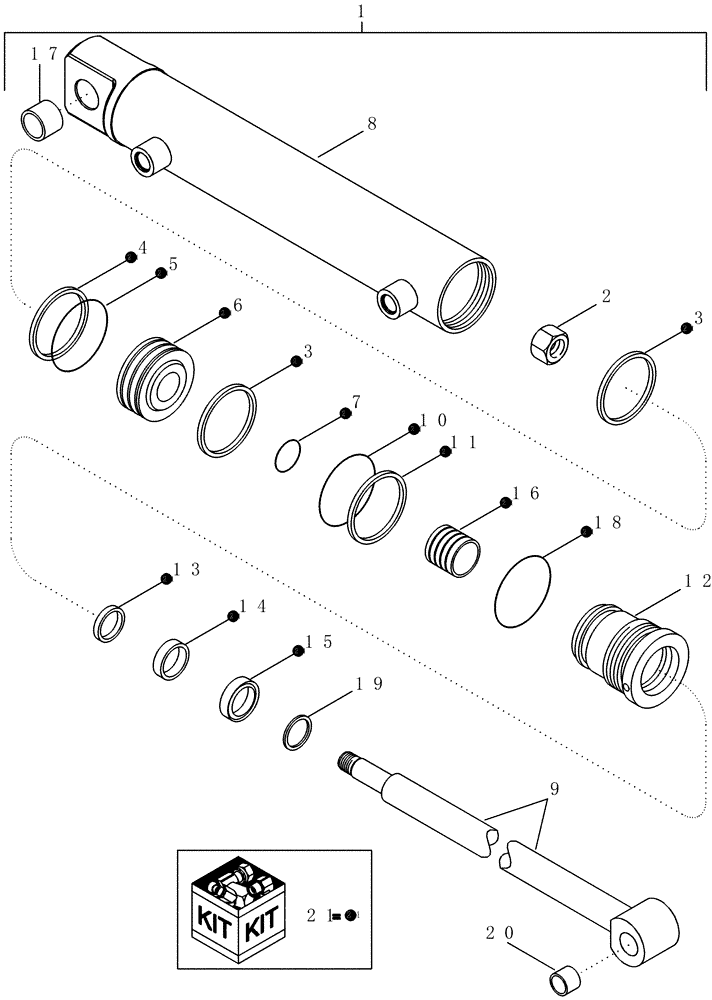

Запчасти Case IH LX172 (08-15) - CYLINDER ASSEMBLY - BUCKET - WITH HYDRAULIC SELF-LEVEL - 448121A1 (08) - HYDRAULICS

1

448121A1

CYLINDER ASSY.

Bucket

1шт.

With Hydraulic Self-Level

1шт.

2

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

348471A1

PISTON

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

87405754

PISTON ROD

Inc. 20

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

12

360028A1

HEAD ASSY.

1шт.

13

NSS

NOT SOLD SEPARAT

Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Wiper

1шт.

16

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

17

318872A1

BUSHING

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

19

NSS

NOT SOLD SEPARAT

Shield, Paint

1шт.

20

324206A1

BUSHING

2шт.

21

87422757

SEAL KIT

Seal, Inc. 3 - 5, 7, 10, 11, 13 - 16, 18

1шт.
