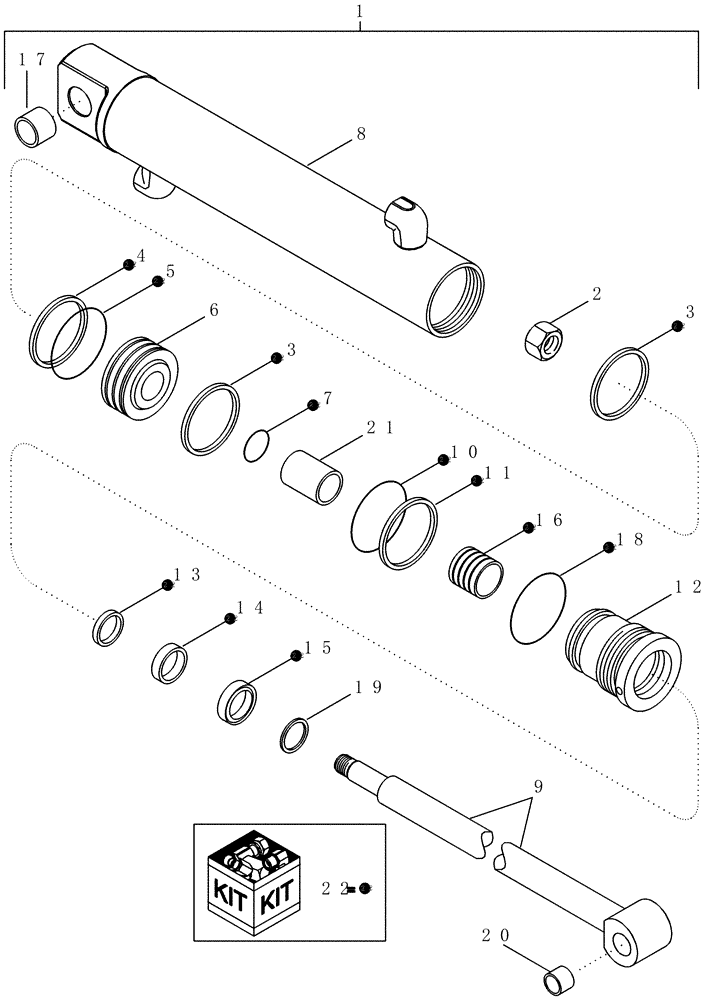

Запчасти Case IH LX172 (08-14) - CYLINDER ASSEMBLY - LIFT - WITH MECHANICAL SELF-LEVEL - 87409547 (08) - HYDRAULICS

1

87409547

CYLINDER ASSY.

Lift

1шт.

With Mechanical Self-Level

1шт.

2

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

360026A1

PISTON

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

87405753

PISTON ROD

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

12

360027A1

HEAD ASSY.

1шт.

13

NSS

NOT SOLD SEPARAT

Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Wiper

1шт.

16

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

17

318872A1

BUSHING

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

19

NSS

NOT SOLD SEPARAT

Shield, Paint

1шт.

20

318872A1

BUSHING

2шт.

21

NSS

NOT SOLD SEPARAT

Spacer

1шт.

22

353125A1

SEAL KIT

Seal, Inc. 3 - 5, 7, 10, 11, 13 - 16, 18

1шт.
