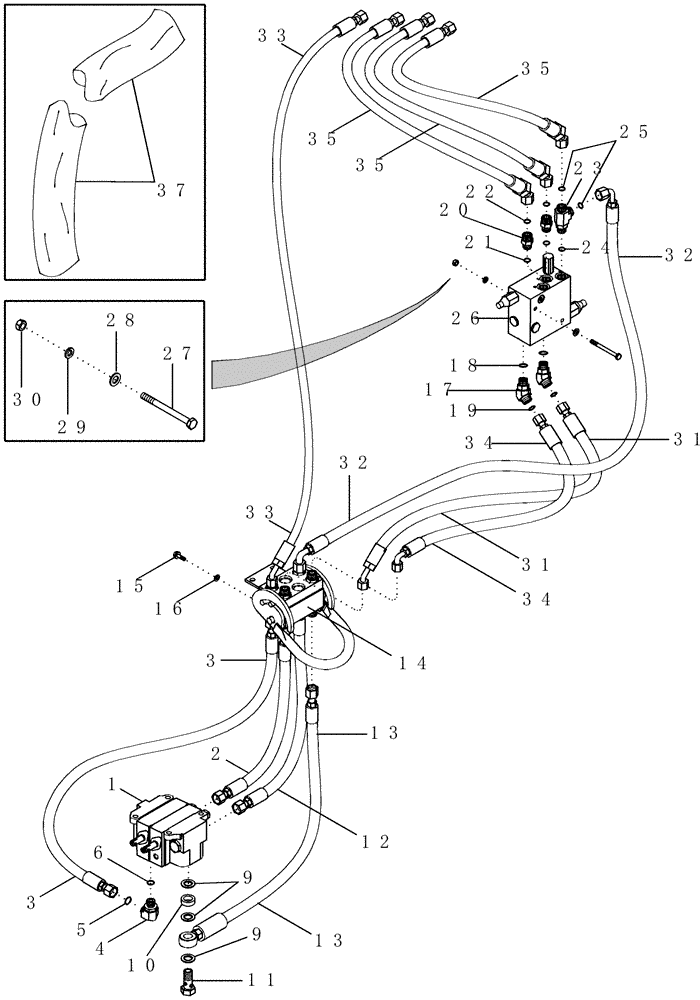

Запчасти Case IH LX172 (08-09) - HYDRAULICS - 2 FUNCTION WITH ONE LEVER QUICK CONNECT WITH HYDRAULIC SELF-LEVELING (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Loader, 2 Function

1шт.

2

448417A1

HYDRAULIC HOSE,12.70 mm ID x 889.00 mm, SAE 100R17 Class 25

Valve To Boom Cylinder Rod End

1шт.

3

448418A1

HYDRAULIC HOSE,12.70 mm ID x 965.00 mm, SAE 100R17 Class 25

Valve To Boom Cylinder Head End

1шт.

4

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 5, 6

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

9

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

3шт.

10

82020496

SPACER

1шт.

11

86583640

BOLT

M18 x 1.5

1шт.

12

448417A1

HYDRAULIC HOSE,12.70 mm ID x 889.00 mm, SAE 100R17 Class 25

Valve To Bucket Cylinder Head End

1шт.

13

448419A1

HYDRAULIC HOSE,12.7mm ID x 1016mm L, SAE 100R17

Valve To Bucket Cylinder Rod End

1шт.

14

REF

INSTRUCTION

Coupler Assembly, One Lever Quick Connect

1шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

16

892-11008

LOCK WASHER,8mm ID

4шт.

17

201-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

45, 5/8 or x 5/8 fc sl, Inc. 18, 19

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

19

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

20

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 21, 22

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

22

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

23

201-420

TEE,1"-14 x 7/8"-14 Run, ORFS

1 fc sl x 7/8 or x 7/8 or, Inc. 24,25

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

26

86992550

MANIFOLD VALVE

1шт.

27

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8 x 4-1/2

2шт.

28

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

29

492-11038

LOCK WASHER,3/8"

2шт.

30

231-4146

NUT,3/8"-16, GB

2шт.

31

448384A1

HYDRAULIC HOSE,15.80 mm ID x 1105.00 mm, SAE 100R17 Class 25

1шт.

32

448385A1

HYDRAULIC HOSE,15.80 mm ID x 1149.00 mm, SAE 100R17

1шт.

33

448386A1

HYDRAULIC HOSE,15.80 mm ID x 2629.00 mm, SAE 100R17 Class 25

1шт.

34

448387A1

HYDRAULIC HOSE,15.80 mm ID x 921.00 mm, SAE 100R17

1шт.

35

448383A1

HYDRAULIC HOSE,15.80 mm ID x 1245.00 mm, SAE 100R17 Class 25

3шт.

37

87409365

HOSE PROTECTION

Sleeve, Hose, Upper, 30 in

1шт.

37

87409367

HOSE PROTECTION

Sleeve, Hose, Lower, 18 in

1шт.
