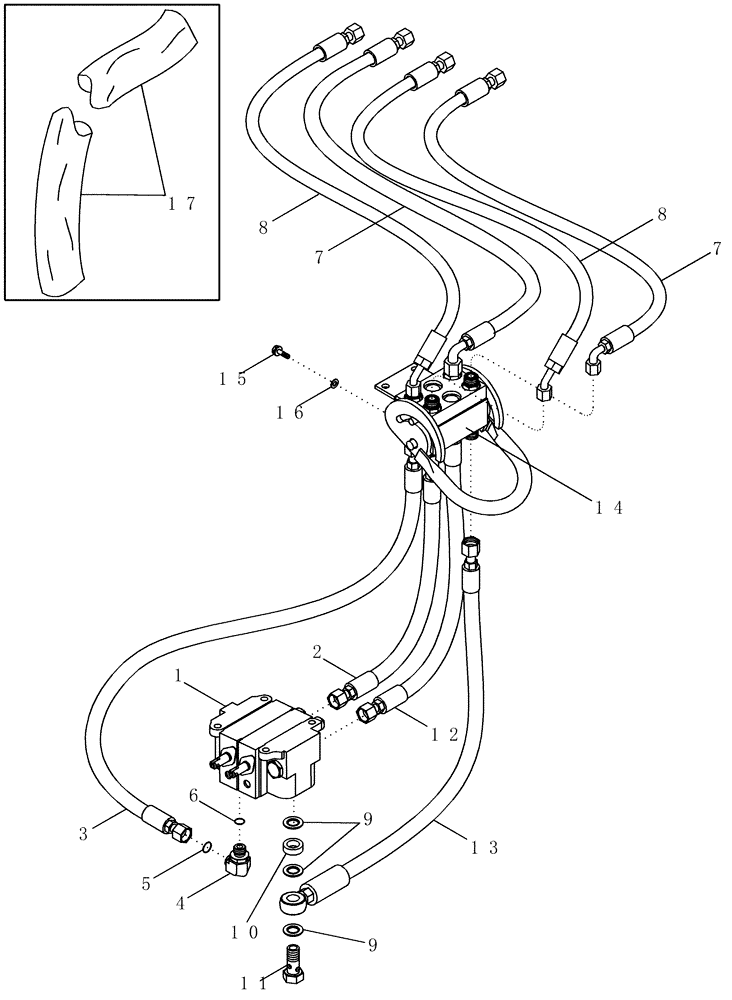

Запчасти Case IH LX162 (08-07) - HYDRAULICS - 2 FUNCTION WITH ONE LEVER QUICK CONNECT (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Loader, 2 Function

1шт.

2

448417A1

HYDRAULIC HOSE,12.70 mm ID x 889.00 mm, SAE 100R17 Class 25

Valve To Boom Cylinder Rod End

1шт.

3

448418A1

HYDRAULIC HOSE,12.70 mm ID x 965.00 mm, SAE 100R17 Class 25

Valve To Boom Cylinder Head End

1шт.

4

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 5, 6

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

448434A1

HYDRAULIC HOSE,15.80 mm ID x 1981.00 mm, SAE 100R17 Class 25

2шт.

8

448435A1

HYDRAULIC HOSE,15.80 mm ID x 1981.00 mm, SAE 100R17 Class 25

2шт.

9

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

Banjo Fitting

3шт.

10

82020496

SPACER

Banjo Fitting

1шт.

11

86583640

BOLT

M18 x 1.5, Banjo Fitting

1шт.

12

448417A1

HYDRAULIC HOSE,12.70 mm ID x 889.00 mm, SAE 100R17 Class 25

Valve To Bucket Cylinder Head End

1шт.

13

448419A1

HYDRAULIC HOSE,12.7mm ID x 1016mm L, SAE 100R17

Valve To Bucket Cylinder Rod End

1шт.

14

REF

INSTRUCTION

Coupler Assembly, One Lever Quick Connect

1шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

16

892-11008

LOCK WASHER,8mm ID

4шт.

17

87409364

HOSE PROTECTION

Sleeve, Hose, 4 Hose, 60 in

1шт.
