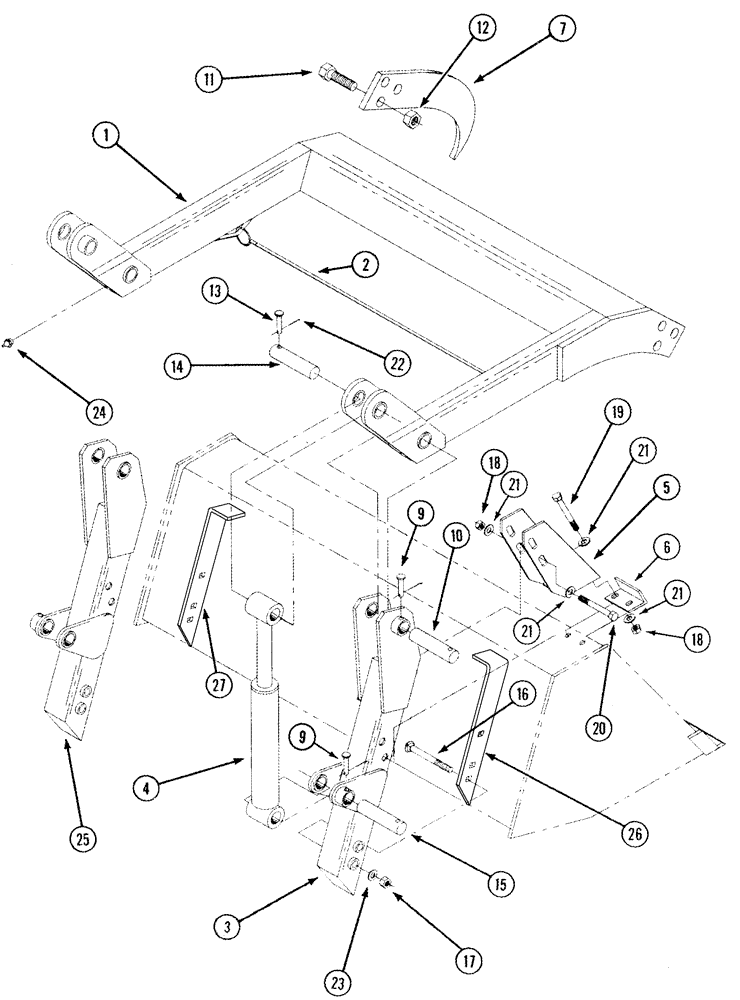

Запчасти Case IH LX162 (09-12) - ATTACHMENT - GRAPPLE (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

GRAPPLE, Complete for 72- 96 in Square Back Heavy Duty and High Performance Buckets

1шт.

Order 716983006 From Machinery Price List

1шт.

1

1985063C1

FRAME ASSY

Grapple

1шт.

2

105000A1

CABLE

1шт.

3

1985070C1

PEDESTAL

Right Hand

1шт.

4

437085A1

CYLINDER

2шт.

See Figure 08-17

1шт.

5

86985395

BRACKET

2шт.

6

1985064C1

ANGLE

2шт.

7

87407361

TINE

TOOTH

4шт.

9

427-6225

CLEVIS PIN,3/8" x 2 1/4"

3/8 x 2-1/4

6шт.

10

T58133

HEADLESS PIN,33.34mm OD x 170mm L

1-5/16 x 6-5/8

2шт.

11

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

8шт.

12

231-14412

LOCK NUT,3/4"-10, GB

8шт.

13

851126C1

CLEVIS PIN

Clevis 5/16 x 2 in.

4шт.

14

T53095

HEADLESS PIN,28.57mm OD x 125mm L

1-1/8 x 4-1/2

2шт.

15

1344768C1

HEADLESS PIN,28.57mm OD x 168mm L

1-1/8 x 6-1/2

2шт.

16

433-1096

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 6", Gr 5

5/8 x 6

6шт.

17

231-41110

LOCK NUT,5/8"-11, GB

6шт.

18

231-4118

LOCK NUT,1/2"-13, GB

1/2

8шт.

19

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

20

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1/2 x 5-1/2

4шт.

21

496-31053

WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk

17/32 x 1-1/16 x 3/16

16шт.

22

432-612

COTTER PIN,3/32" x 3/4"

6шт.

23

495-21069

WASHER,5/8"

11/16 x 1-3/4 x 9/64

6шт.

24

219-87

LUBE NIPPLE,1/4" - 28 NPTF

6шт.

25

1985071C1

PEDESTAL

Left Hand

1шт.

26

1540239C1

BRACKET

Support, RH

1шт.

27

1540238C1

BRACKET

Support, LH

1шт.
