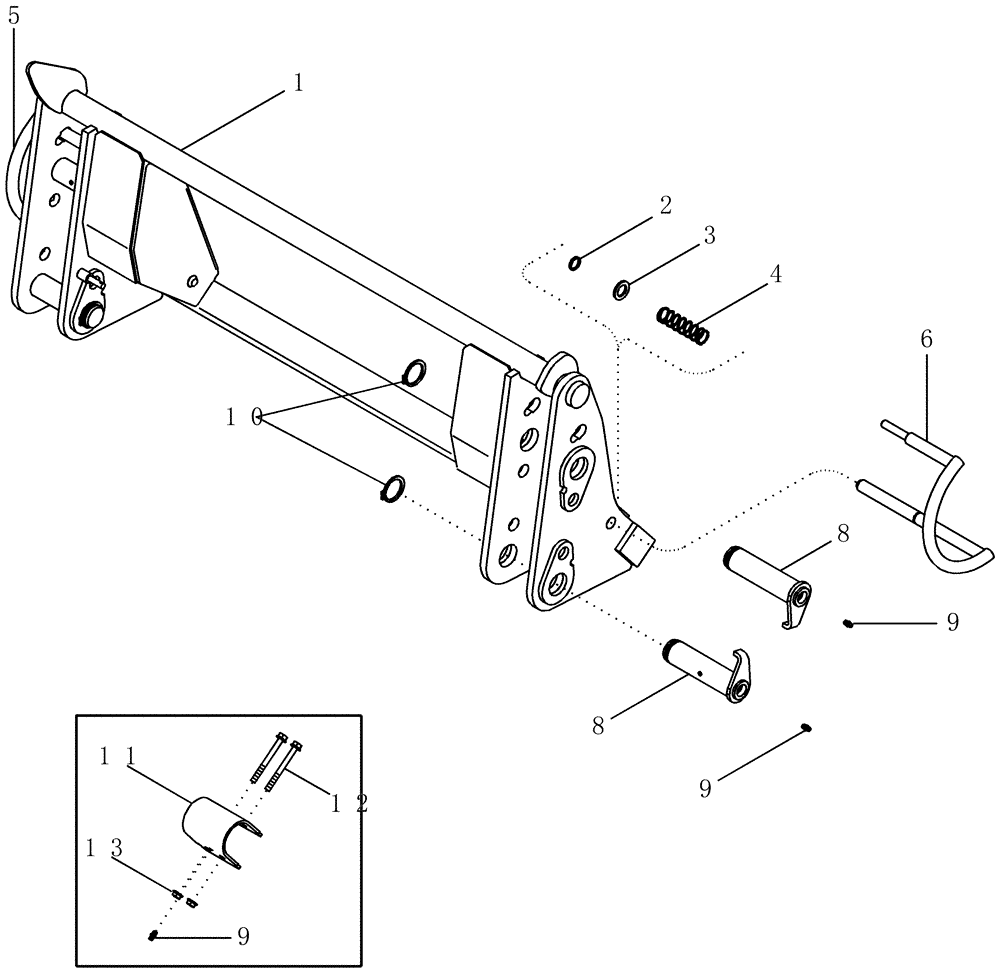

Запчасти Case IH LX162 (09-08) - QUICK ATTACH ADAPTER (09) - CHASSIS/ATTACHMENTS

1

87450969

BRACKET

ATTACHMENT, EZ Quick Coupler

1шт.

2

348241A1

RING, SNAP

RING SNAP

2шт.

3

495-81039

WASHER,25/32" x 1 1/4" x .120"

25/32 x 1-1/4 x 7/64

2шт.

4

348239A2

SPRING

2шт.

5

321442A2

HANDLE

Left

1шт.

6

321445A2

HANDLE

Right

1шт.

8

349057A1

PIN

w/Flag; 38.1 Diameter

4шт.

9

219-14

LUBE NIPPLE,1/4" NPTF

6шт.

10

103-16150

SNAP RING,#150, Ext

4шт.

11

87439290

PLATE

Spring Cover

2шт.

12

844-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

M8 x 80; 8,8

4шт.

13

825-5148

SERRATED NUT,M8, Flg Ser

4шт.
