Запчасти Case IH LX162 (09-04) - MOUNTING BRACKETS - MXM120 - MXM190 - ONE PIECE (09) - CHASSIS/ATTACHMENTS

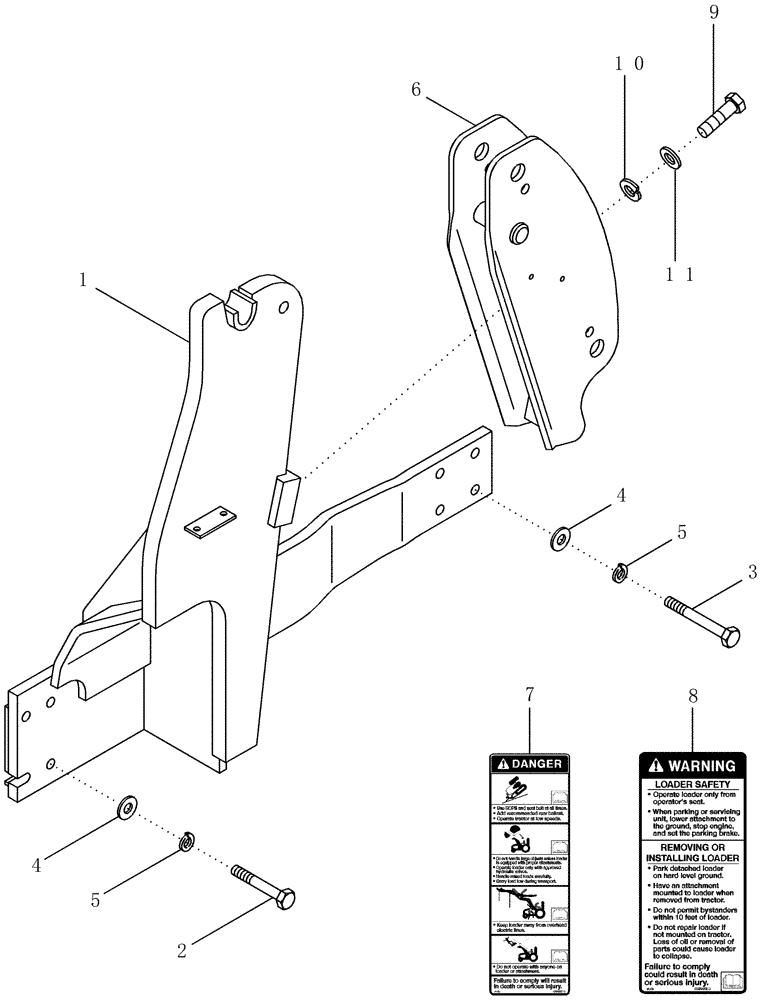

Схема запчастей Case IH LX162 - (09-04) - MOUNTING BRACKETS - MXM120 - MXM190 - ONE PIECE (09) - CHASSIS/ATTACHMENTS
3
8
10
4
1
4
9
11
6
2
7
5
5

Артикул

Название

Примечание

Количество

1

427103A2

BRACKET

RH SWB Mid Mount (Shown)

1шт.

1

427100A2

BRACKET

LH SWB Mid Mount

1шт.

2

828-20085

BOLT,Hex, M20 x 2.5 x 85mm, Cl 10.9

M20 x 85; 10.9

8шт.

3

828-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9

8шт.

4

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

Flat, 22 x 44 x 5 mm

16шт.

5

892-10020

LOCK WASHER,M20

M20

16шт.

6

87403214

TOWER

RH, Inc. Decals Ref 7, 8

1шт.

Without Self-Level

1шт.

With Hydraulic Self-Level

1шт.

6

87411088

TOWER

LH, Inc. Decals Ref 7, 8

1шт.

Without Self-Level

1шт.

With Hydraulic Self-Level

1шт.

6

87412744

TOWER

RH, Inc. Decals Ref 7, 8

1шт.

With Mechanical Self-Level

1шт.

6

87411100

TOWER

LH, Inc. Decals Ref 7, 8

1шт.

With Mechanical Self-Level

1шт.

7

86979960

DANGER DECAL

Safety

2шт.

8

86979962

WARNING DECAL

Safety

2шт.

9

426-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

1 x 3-1/2; Gr 8

2шт.

10

492-11100

LOCK WASHER,1"

1"

2шт.

11

496-31106

WASHER,1 1/16" x 2" x .219", HDN

Flat, 1-1/16 x 2 x 7/32 in

2шт.

12

87425812

Torque

2шт.

Выбрано товаров: 22
