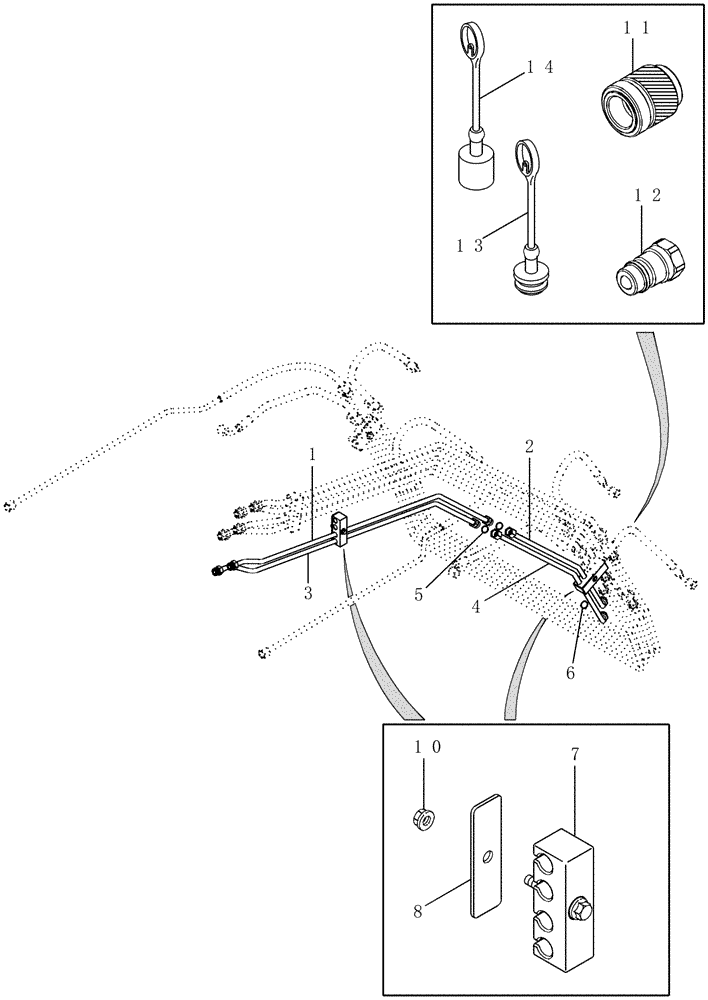

Запчасти Case IH LX162 (08-02) - HYDRAULICS - AUXILIARY 3RD FUNCTION (08) - HYDRAULICS

1

86990353

HYD TUBE,12.70 mm OD x 1096, 205 mm L

Top, Upper

1шт.

2

86990354

TUBE,12.70 mm OD x 610, 140 mm L

Top, Lower

1шт.

3

86990351

HYD TUBE,0.50" OD

Bottom, Upper

1шт.

4

86990352

HYD TUBE,12.70 mm OD x 710, 162 mm L

Bottom, Lower

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

86994419

CLAMP

2шт.

8

86994420

LOCKING PLATE

2шт.

10

231-1446

NUT,3/8" - 16, Gr 5

2шт.

11

399786A1

COUPLING

Hydraulic, Female

1шт.

12

399491A1

QUICK MALE COUPLING

Hydraulic, Male

1шт.

13

327230A1

CAP

Male, Black

1шт.

14

333718A1

CAP

Female, Orange

1шт.
