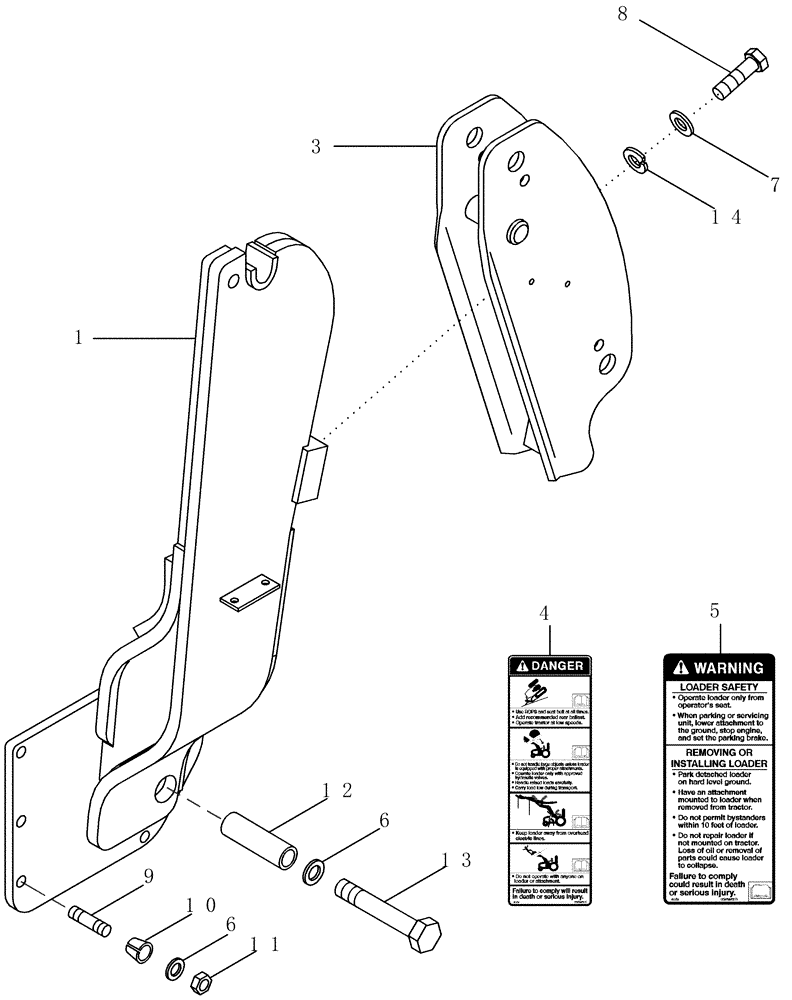

Запчасти Case IH LX162 (09-03) - MOUNTING BRACKETS - MX100 - MX170 - ONE PIECE (09) - CHASSIS/ATTACHMENTS

1

87411301

BRACKET

Right Hand

1шт.

1

87411300

BRACKET

Left Hand, Not Illustrated

1шт.

3

87403214

TOWER

Right Hand, Inc. Decals Ref 4, 5

1шт.

Without Self-Level

1шт.

With Hydraulic Self-Level

1шт.

3a

87411088

TOWER

Left Hand, Inc. Decals Ref 4, 5

1шт.

Without Self-Level

1шт.

With Hydraulic Self-Level

1шт.

3

87412744

TOWER

Right Hand, Inc. Decals Ref 4, 5

1шт.

With Mechanical Self-Level

1шт.

3a

87411100

TOWER

Left Hand, Inc. Decals Ref 4, 5

1шт.

With Mechanical Self-Level

1шт.

4

86979960

DANGER DECAL

Safety

2шт.

5

86979962

WARNING DECAL

Safety

2шт.

6

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

12шт.

7

496-31106

WASHER,1 1/16" x 2" x .219", HDN

1-1/16 x 2 x 7/32

2шт.

8

426-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

1 x 3-1/2

2шт.

9

382111A1

STUD

20 mm

10шт.

10

381677A1

SPACER,21mm ID x 31.75mm OD x 19.05mm L

Tapered

10шт.

11

832-41420

NUT,M20 x 2.5, Cl 10

M20

10шт.

12

388233A1

SPACER

2шт.

13

827-20220

BOLT,Hex, M20 x 2.5 x 220mm, Cl 10.9

M20 x 220; 10.9

2шт.

14

492-11100

LOCK WASHER,1"

1"

2шт.
