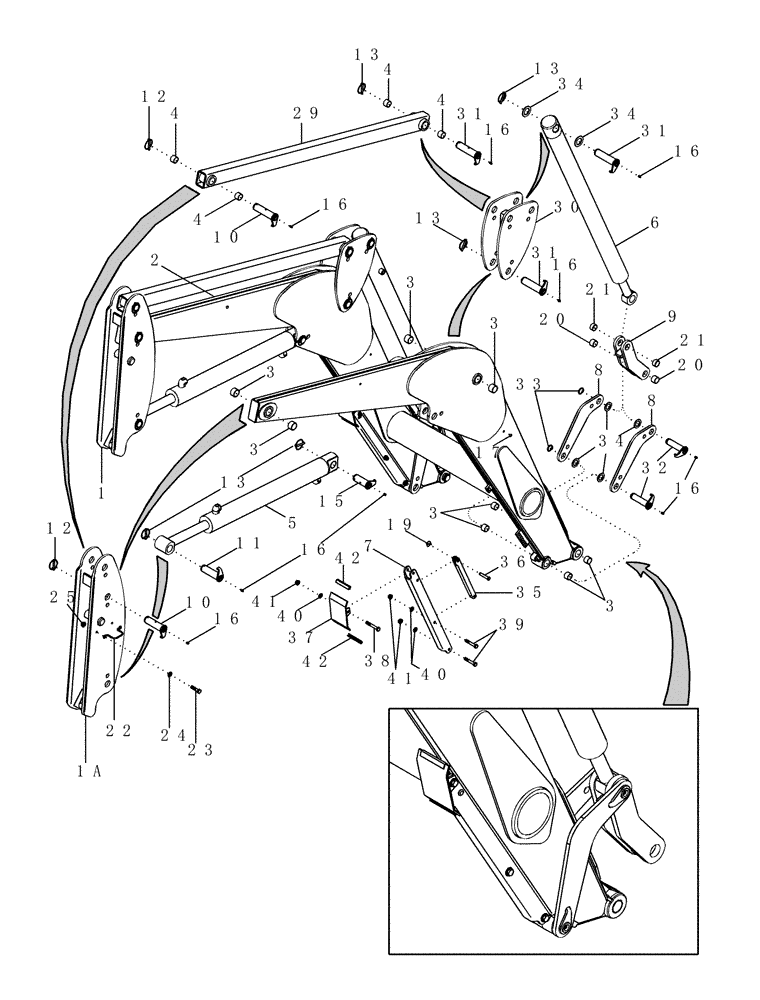

Запчасти Case IH LX162 (09-02) - FRAME - WITH MECHANICAL SELF-LEVEL (09) - CHASSIS/ATTACHMENTS

1

87411100

TOWER

LH, Inc. 43, 44

1шт.

1

87411105

TOWER

RH, Inc. 43, 44

1шт.

2

87403080

FRAME ASSY

Loader, Inc. 3, 17, 45

1шт.

3

318872A1

BUSHING

1-1/2 ID x 1 in

16шт.

4

318872A1

BUSHING

1-1/2 ID x 1 in

8шт.

5

87409547

CYLINDER ASSY.

Lift

2шт.

See Figure 08-14

1шт.

6

451461A1

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 528.32mm Stroke

Bucket

2шт.

See Figure 08-16

1шт.

7

320791A2

CHANNEL

Park

2шт.

8

449763A1

PLATE

4шт.

9

449841A1

LIFT LINK

Inc. 20,21

2шт.

10

313907A2

PIN ASSY.

With Flag, 1-1/2 OD X 120.7 LONG

4шт.

Use with 219-14, Press in Zerk Fitting

1шт.

10

87454966

PIVOT PIN,38.1mm OD x 146mm L

With Flag, 1-1/2 OD X 120.7 LONG

4шт.

Use with 219-87, Threaded Zerk Fitting

1шт.

11

313907A2

PIN ASSY.

With Flag, 1-1/2 OD X 120.7 LONG

2шт.

Use with 219-14, Press in Zerk Fitting

1шт.

11

87454966

PIVOT PIN,38.1mm OD x 146mm L

With Flag, 1-1/2 OD X 120.7 LONG

2шт.

Use with 219-87, Threaded Zerk Fitting

1шт.

12

A61560

LOCK PIN

4шт.

13

A61560

LOCK PIN

10шт.

15

318870A2

PIN ASSY.

With Flag, 1-1/2 OD X 91.7 LONG

2шт.

Use with 219-14, Press in Zerk Fitting

1шт.

15

87447581

PIVOT PIN,38.1mm OD x 117mm L

With Flag, 1-1/2 OD X 91.7 LONG

2шт.

Use with 219-87, Threaded Zerk Fitting

1шт.

16

219-14

LUBE NIPPLE,1/4" NPTF

Press In

18шт.

16

219-87

LUBE NIPPLE,1/4" - 28 NPTF

18шт.

17

CL5306

PLUG

5шт.

19

302676A1

LINCH PIN

2шт.

20

318872A1

BUSHING

1-1/2 ID x 1 in

2шт.

21

324206A1

BUSHING

1-1/2 ID x 3/4 in

2шт.

22

87411359

GUIDE

1шт.

23

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

24

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

25

231-4146

NUT,3/8"-16, GB

2шт.

29

87403083

LINK ASSY.

Inc. 4

2шт.

30

451440A1

PIVOT ASSY.

2шт.

31

451468A1

PIN

With Flag, 1-1/2 x 5-1/2

6шт.

Use with 219-14, Press in Zerk Fitting

1шт.

31

87447587

PIVOT PIN,38.1mm OD x 165mm L

With Flag, 1-1/2 x 5-1/2

6шт.

Use with 219-87, Threaded Zerk Fitting

1шт.

32

315085A2

PIN ASSY.

With Flag, 1-1/2 x 4-3/4

4шт.

Use with 219-14, Press in Zerk Fitting

1шт.

32

87447589

PIVOT PIN,38.1mm OD x 141.5mm L

With Flag, 1-1/2 x 4-3/4

4шт.

Use with 219-87, Threaded Zerk Fitting

1шт.

33

103-16150

SNAP RING,#150, Ext

4шт.

34

321285A1

WASHER

Plastic

12шт.

35

320794A1

TUBE,365 mm Length

2шт.

36

439-5844

HEADED PIN,1/2" x 2 3/4", G5

2шт.

37

328951A1

STAND

Parking

2шт.

38

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2 x 3

4шт.

39

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

40

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

6шт.

41

231-5348

FLANGE NUT,Flg, 1/2"-13

6шт.

42

338889A1

MOLDING

Seal, 100 mm

4шт.

43

86979960

DANGER DECAL

Safety, Not Shown

2шт.

See Figure 09-13

1шт.

44

86979962

WARNING DECAL

Safety, Not Shown

2шт.

See Figure 09-13

1шт.

45

86979961

DANGER DECAL

Safety, Not Shown

2шт.

See Figure 09-13

1шт.
