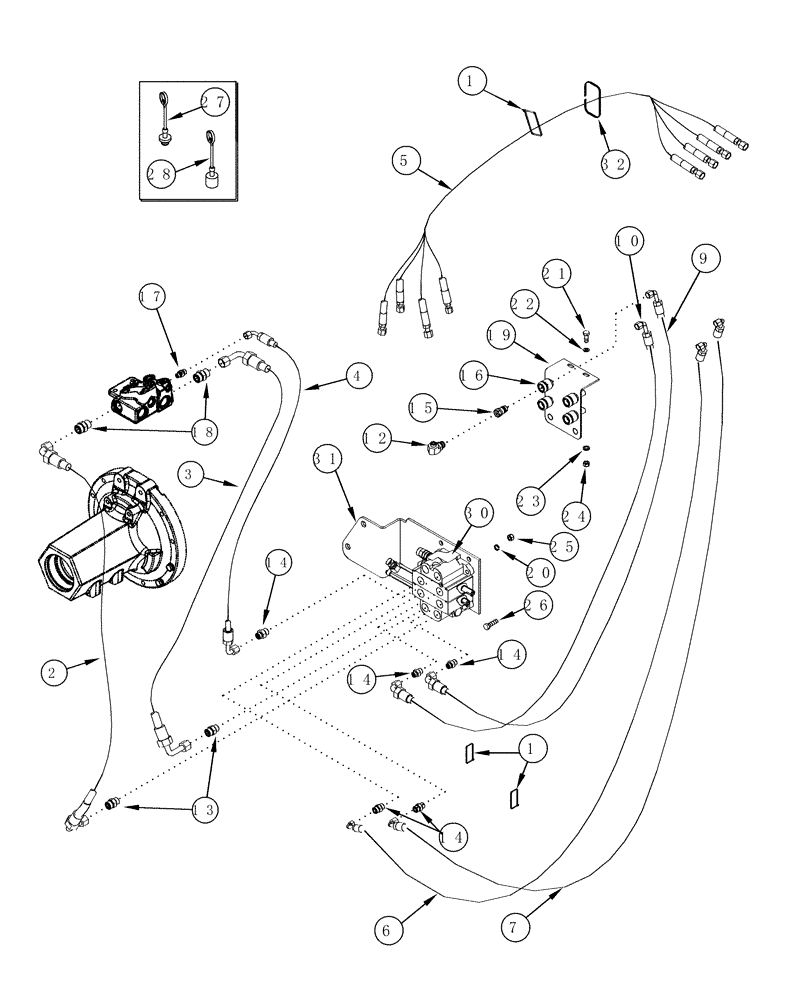

Запчасти Case IH LX162 (08-31) - HYDRAULICS - EXTERNAL VALVE - 2 FUNCTION WITHOUT SELF LEVELING (08) - HYDRAULICS

1

306132C1

CABLE TIE,14.5" L

CABLE STRAP

4шт.

2

327194A1

HOSE ASSY.

1270 mm (50 in), Return

1шт.

3

327195A1

HOSE ASSY.

1594 mm (60 in), Supply

1шт.

4

395305A2

HOSE

1219 mm (48 in), Signal

1шт.

5

448404A1

HYDRAULIC HOSE,15.80 mm ID x 2032.00 mm, SAE 100R17 Class 25

2032 mm (80 in)

4шт.

6

395310A1

HOSE

1880 mm (74 in)

1шт.

7

395310A1

HOSE

1880 mm (74 in)

1шт.

9

395307A1

HOSE

2007 mm (79 in)

1шт.

10

395311A1

HOSE

1880 mm (74 in)

1шт.

12

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

4шт.

13

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

2шт.

14

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

4шт.

15

399491A1

QUICK MALE COUPLING

Male

6шт.

16

399490A1

COUPLING

Female

6шт.

17

327068A1

VALVE, CHECK

1шт.

18

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

2шт.

19

395326A1

BRACKET

1шт.

20

492-11038

LOCK WASHER,3/8"

3шт.

21

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

22

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

24

425-108

NUT,1/2" - 13, Gr 5

2шт.

25

425-106

NUT,3/8"-16, Cl 5

3шт.

26

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

27

327227A1

CAP

Male, Blue

1шт.

27

327229A1

CAP

Yellow

1шт.

27

327231A1

CAP

Red

1шт.

27

327232A1

CAP

Green

1шт.

28

333717A1

CAP

Female, Blue

1шт.

28

333719A1

CAP

Yellow

1шт.

28

333721A1

CAP

Red

1шт.

28

333722A1

CAP

Green

1шт.

30

395675A1

VALVE

1шт.

See Figure 08-33

1шт.

31

327224A1

PLATE

1шт.

32

87411359

GUIDE

Hose Guide

1шт.

33

87409364

HOSE PROTECTION

Sleeve, Hose, 4 Hose (Not Shown)

1шт.
