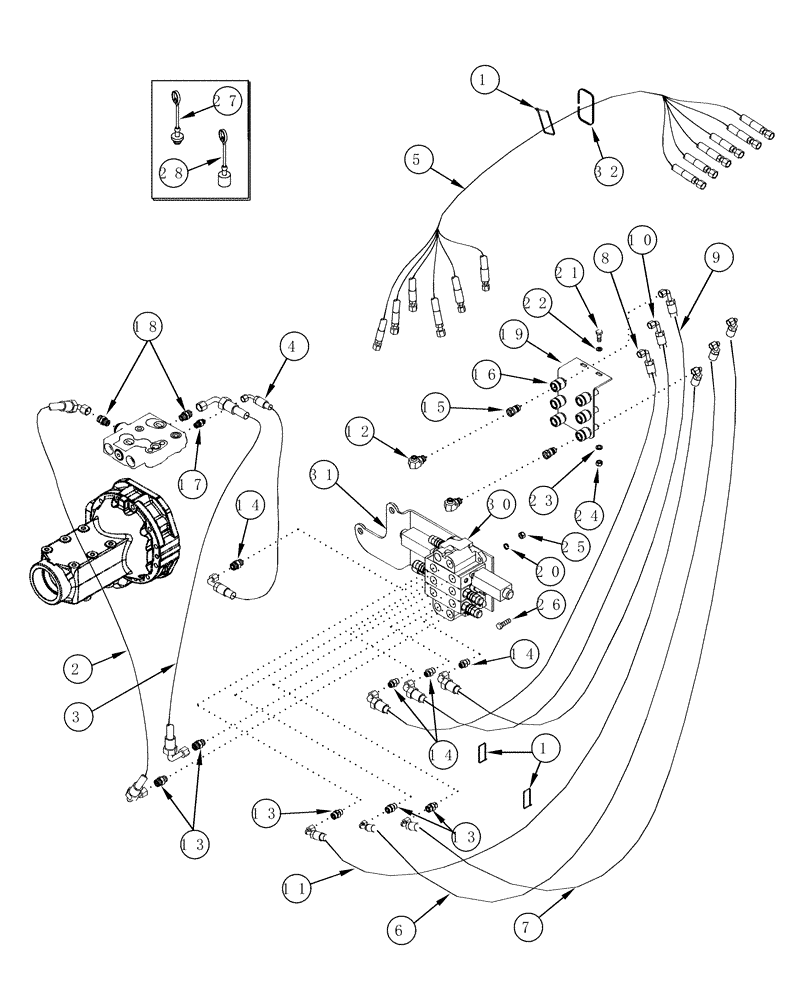

Запчасти Case IH LX162 (08-30) - HYDRAULICS - EXTERNAL VALVE - 3 FUNCTION WITHOUT SELF LEVELING (08) - HYDRAULICS

1

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 14" TIE

4шт.

2

395306A1

HOSE

2184 mm (86 in), Return

1шт.

3

395304A2

HOSE

1524 mm (60 in), Supply

1шт.

4

395305A3

HOSE

1219 mm (48 in), Signal

1шт.

5

448404A1

HYDRAULIC HOSE,15.80 mm ID x 2032.00 mm, SAE 100R17 Class 25

2032 mm (80 in)

4шт.

5a

448439A1

HYDRAULIC HOSE,12.70 mm ID x 1829.00 mm, SAE 100R17 Class 25

3rd Function, 1829 mm (72 in) (Not Shown)

2шт.

6

395310A1

HOSE

1880 mm (74 in)

1шт.

7

395310A1

HOSE

1880 mm (74 in)

1шт.

8

395311A1

HOSE

1880 mm (74 in)

1шт.

9

395307A1

HOSE

2007 mm (79 in)

1шт.

10

395311A1

HOSE

1880 mm (74 in)

1шт.

11

395310A1

HOSE

1880 mm (74 in)

1шт.

12

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

6шт.

13

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

2шт.

14

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

7шт.

15

399491A1

QUICK MALE COUPLING

Male

6шт.

16

399490A1

COUPLING

Female

6шт.

17

304018A1

VALVE POPPET

1шт.

18

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

2шт.

19

395326A1

BRACKET

1шт.

20

492-11038

LOCK WASHER,3/8"

3шт.

21

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

22

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

24

425-108

NUT,1/2" - 13, Gr 5

2шт.

25

425-106

NUT,3/8"-16, Cl 5

3шт.

26

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

27

327227A1

CAP

Male, Blue

1шт.

27

327228A1

CAP

Orange

1шт.

27

327229A1

CAP

Yellow

1шт.

27

327230A1

CAP

Black

1шт.

27

327231A1

CAP

Red

1шт.

27

327232A1

CAP

Green

1шт.

28

333717A1

CAP

Female, Blue

1шт.

28

333718A1

CAP

Orange

1шт.

28

333719A1

CAP

Yellow

1шт.

28

333720A1

CAP

Black

1шт.

28

333721A1

CAP

Red

1шт.

28

333722A1

CAP

Green

1шт.

30

395676A1

VALVE

1шт.

See Figure 08-34

1шт.

31

246939A2

SUPPORT

1шт.

32

87411359

GUIDE

Hose Guide

1шт.

33

87409364

HOSE PROTECTION

Sleeve, Hose, 4 Hose (Not Shown)

1шт.
