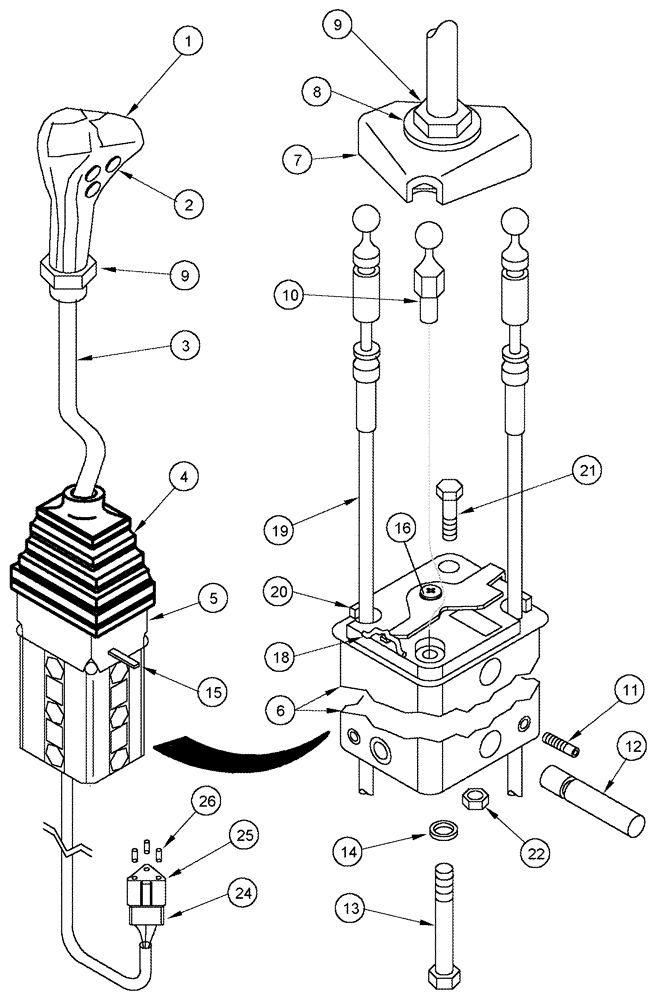

Запчасти Case IH LX162 (08-27) - CONTROL ASSEMBLY - 3 FUNCTION - MXM100-MXM170 SYNCHROMESH TRANSMISSION (08) - HYDRAULICS

280020A3

CONTROL

Consists Of 1-26

1шт.

1

246988A2

SHIFTING UNIT

Includes 2-6

1шт.

2

253280A1

PLASTIC PLUG

1шт.

3

246992A1

LEVER

1шт.

4

253274A1

BELLOWS

1шт.

5

253275A1

HOUSING

Upper

1шт.

6

247713A2

VALVE, CONTROL

Lower

1шт.

7

253276A1

COUPLING FLANGE

1шт.

8

895-15014

WASHER,15.5mm ID x 30mm OD x 2.5mm Thk

15,5 x 30 x 2,5 mm

1шт.

9

829-23414

THIN NUT,Thin, M14 x 1.5, Cl 05

2шт.

10

327141A1

BALL JOINT

1шт.

11

738-3422

PIN,M4 x 22, Coiled

3шт.

12

254286A1

TUBE,12 mm OD, 57.5 mm Length

2шт.

13

864-6080

HEX SOC SCREW,M6 x 80mm, Cl 8.8

1шт.

14

495-81022

WASHER,17/32" x 1 1/8" x .060"

1шт.

15

327138A1

CONTROL LEVER

1шт.

16

301-1468

DRIVE SCREW,Drive, #10 x 1/2"

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

18

258464A1

SPRING LOCK

1шт.

19

253271A2

CABLE SHEATH

2шт.

20

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

21

832-10406

NUT,M6 x 1, Cl 8

1шт.

22

327140A1

PLATE

1шт.

24

225294C1

ELEC CONNECTOR,Male, 3 Pin

1шт.

25

225296C1

ELEC CONNECTOR

1шт.

26

225053C1

TERMINAL CONNECTOR,Female, 0.8 - 1 mm2

3шт.
